Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (W) (P) EXTENSION SPRING (P564) 814/10210 | 1 | $14.65 | ||||
| 1 | WA LH LIGHT POD 332/W6339 | 1 | $240.17 | |||
| 2 | WA REAR COVER + LIGHTS 333/R0464 | 1 | $592.37 | |||
| 3 | WA LIGHT POD 332/W6287 | 1 | $240.17 | |||
| 4 | LOCK 826/11012 | 1 | $150.74 | |||
| 5 | PRESSING 332/V4170 | 1 | $18.57 | |||
| 6 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 9 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 10 | LATCH 332/S6158 | 1 | $162.80 | |||
| 11 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 12 | NUT LOCK M10 (P545) 1371/0303D | 1 | $6.62 | |||
| 13 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 14 | TOP PLATE 332/V4007 | 1 | $129.28 | |||
| 15 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 16 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 17 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 18 | SET M5 X 30 HT (P564) 1315/0108Z | 1 | $0.41 | |||
| 19 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-B170-23-1-400503 B170-23-1 CHAFF GUARD
View Diagram -
DIAG-B170-30-1-400503 B170-30-1 BONNET ASSEMBLY
View Diagram -

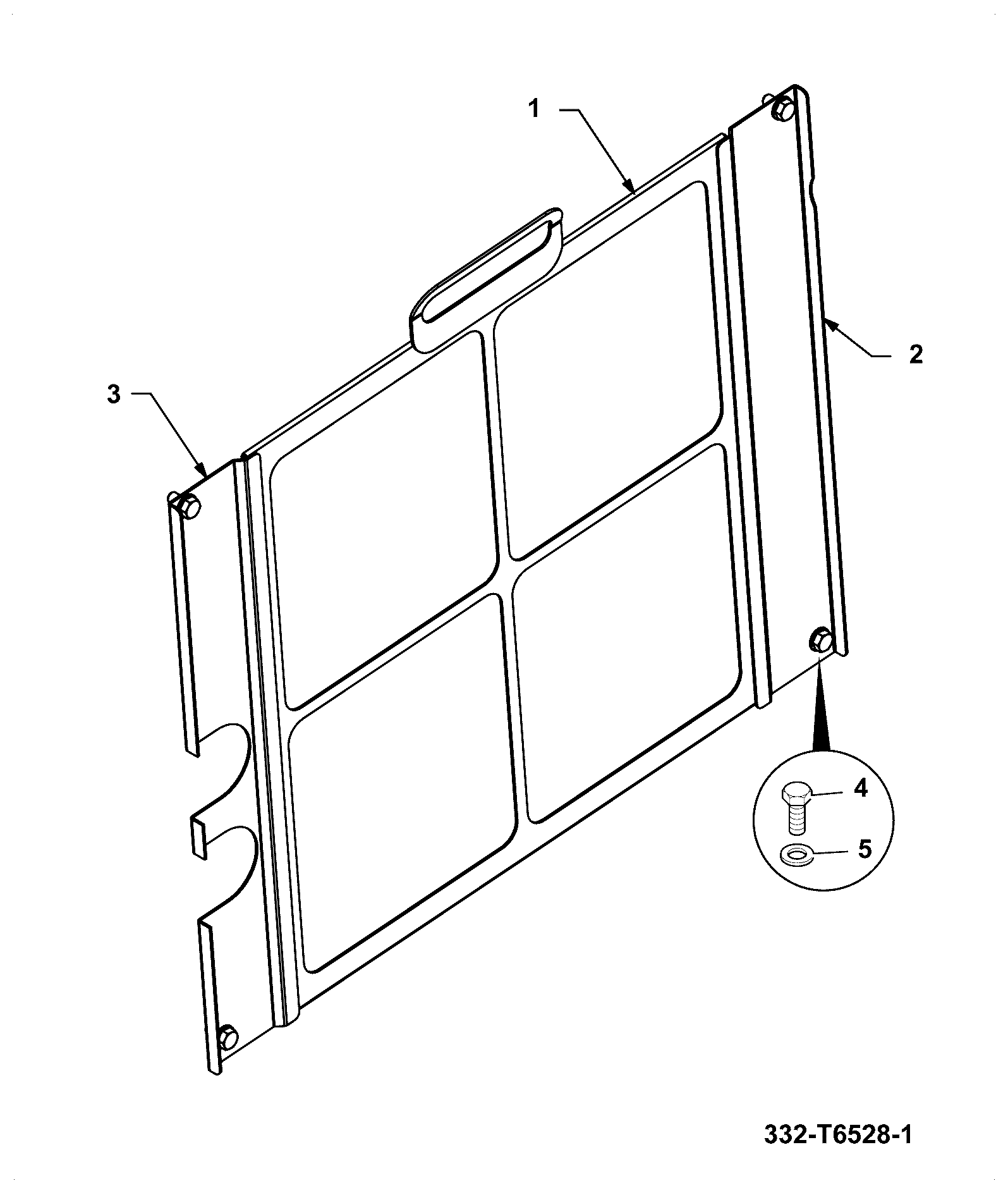

DIAG-B170-19-1-400503 B170-19-1 GRILLE
View Diagram
