B170-19-1 GRILLE Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	GRILL 332/W4719	1	AVAILABLE TO ORDER	$313.74	Quantity
20	'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559	1	2 IN STOCK	$8.07	Quantity

Showing 1 to 2 of 2 parts

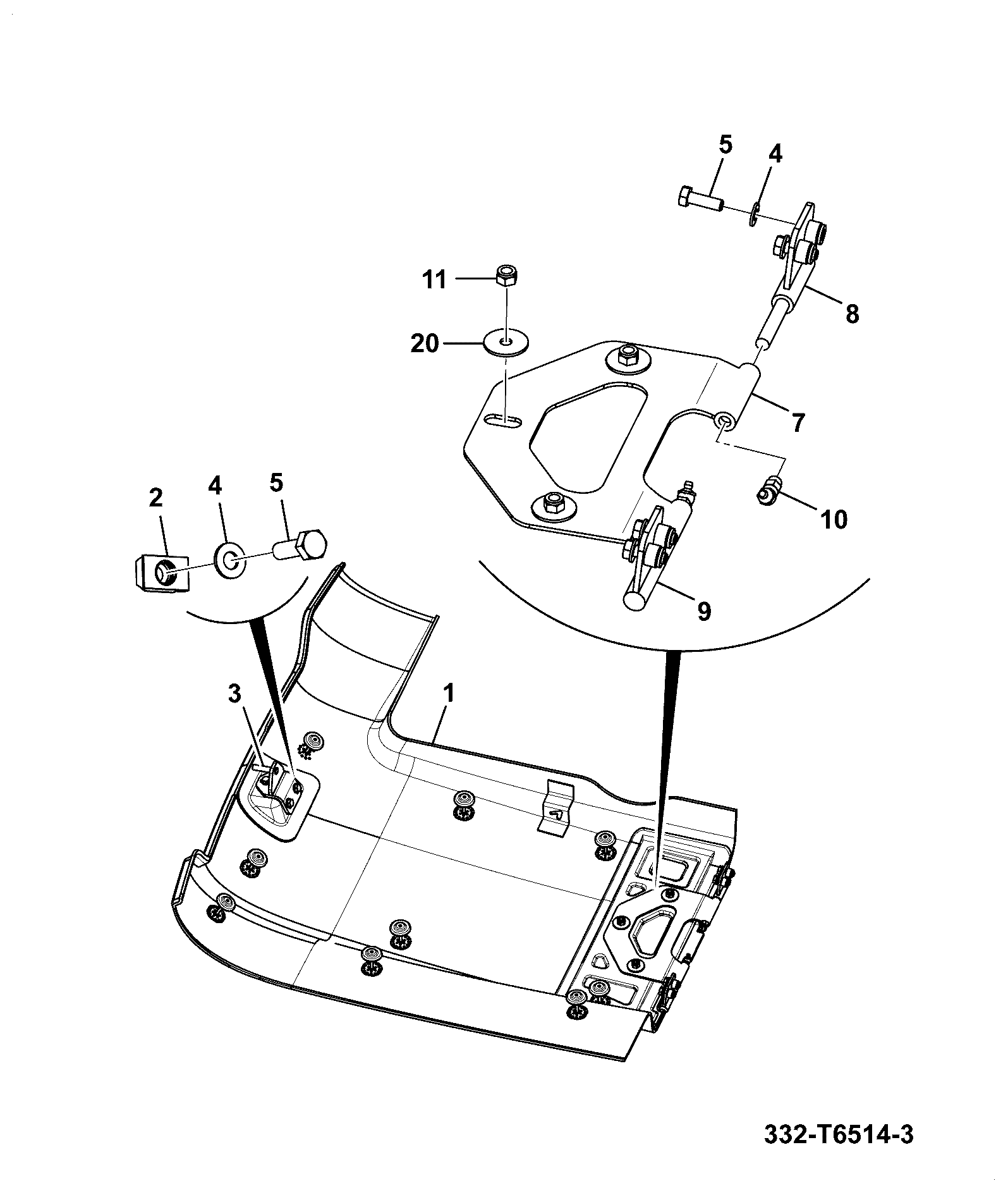

DIAG-B170-12-2-400503 B170-12-2 BONNET/ ENGINE COVERS/ GRILLES COVER, LEFT SIDE ASSEMBLY
