Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA 427 LH MID FENDER 20.5 400/A2592 | 1 | $2,145.48 | |||
| 2 | LH FENDER CAP 334/V1947 | 1 | $281.59 | |||
| 3 | WA LH FENDER INFILL 400/B7887 | 1 | $313.90 | |||
| 4 | WA 427 RH MID FENDER 20.5 334/U3221 | 1 | $2,666.95 | |||
| 5 | RH FENDER CAP 334/V2023 | 1 | $319.03 | |||
| 6 | WA RH FENDER INFILL 400/B7890 | 1 | $313.90 | |||
| 7 | STEP (X-Feed) 589/10221 | 1 | $166.10 | |||
| 8 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 9 | HEX.BOLT M10x55 LG 1315/3413D | 1 | $1.94 | |||
| 10 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 11 | SPACER 262/04601 | 1 | $57.46 | |||
| 12 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 13 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 14 | GROMMET BLIND 7.95 DIA x 3.5 THK 2410/1106 | 1 | $4.08 | |||
| 15 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 17 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 18 | 427 MID FENDER MUDFLAP 20 336/A1589 | 1 | $99.41 | |||
| 19 | CLAMP PLATE 335 LONG 335/B5320 | 1 | $22.92 | |||
| 20 | 20.5 CLAMP PLATE L195 336/A1621 | 1 | $29.23 | |||
| 21 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 22 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 23 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 24 | 457 MUDFLAP STIFFENER 334/S1094 | 1 | $33.24 | |||
| 25 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 26 | SPACER 231/72101 | 1 | $52.11 | |||
| 27 | SCREW M10 L-_60mm 1315/0414D | 1 | $3.20 | |||
| 28 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

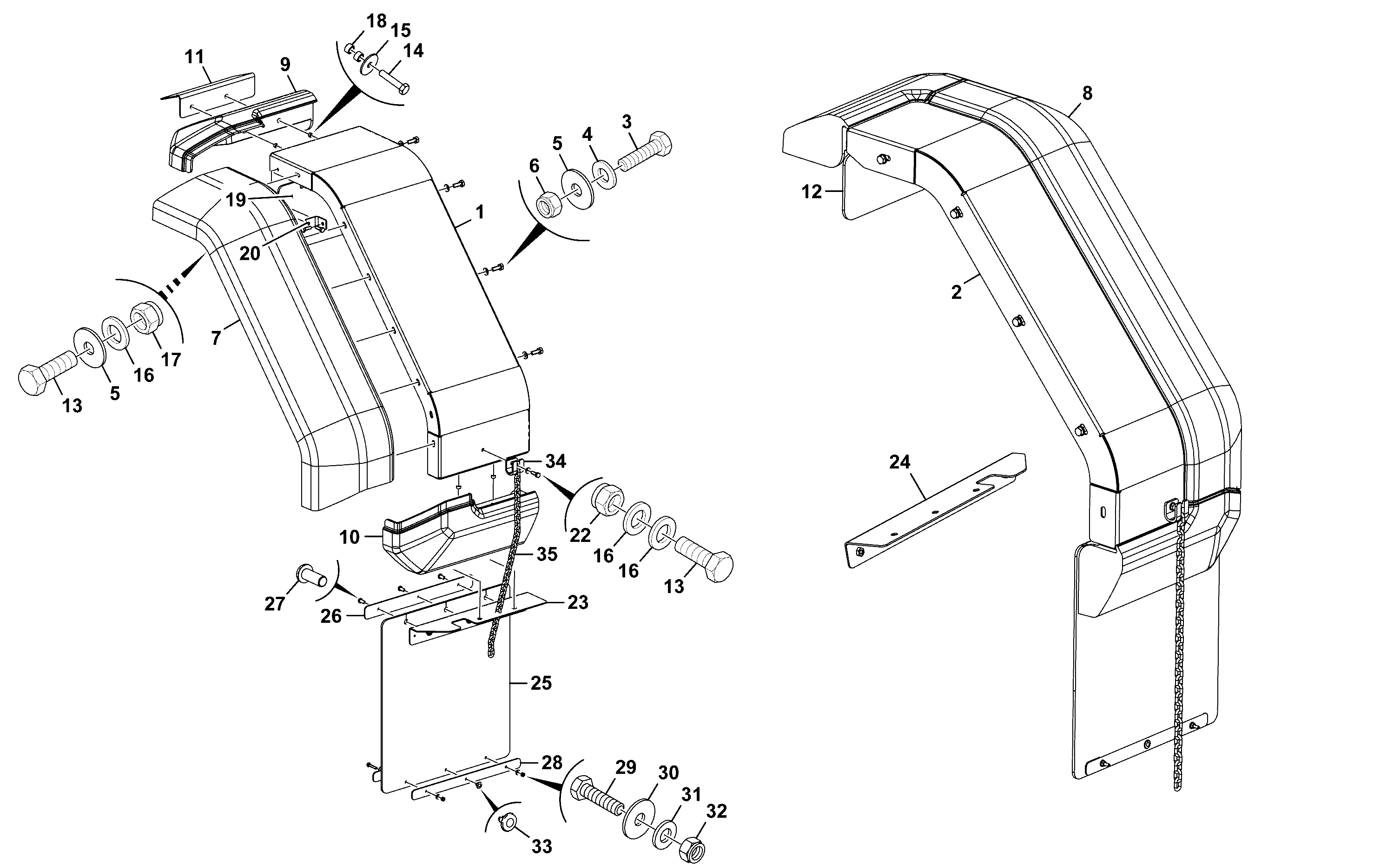

DIAG-B150-115-1-404719 B150-115-1 FENDERS ASSEMBLY FRONT 427 - 20.5
View Diagram -

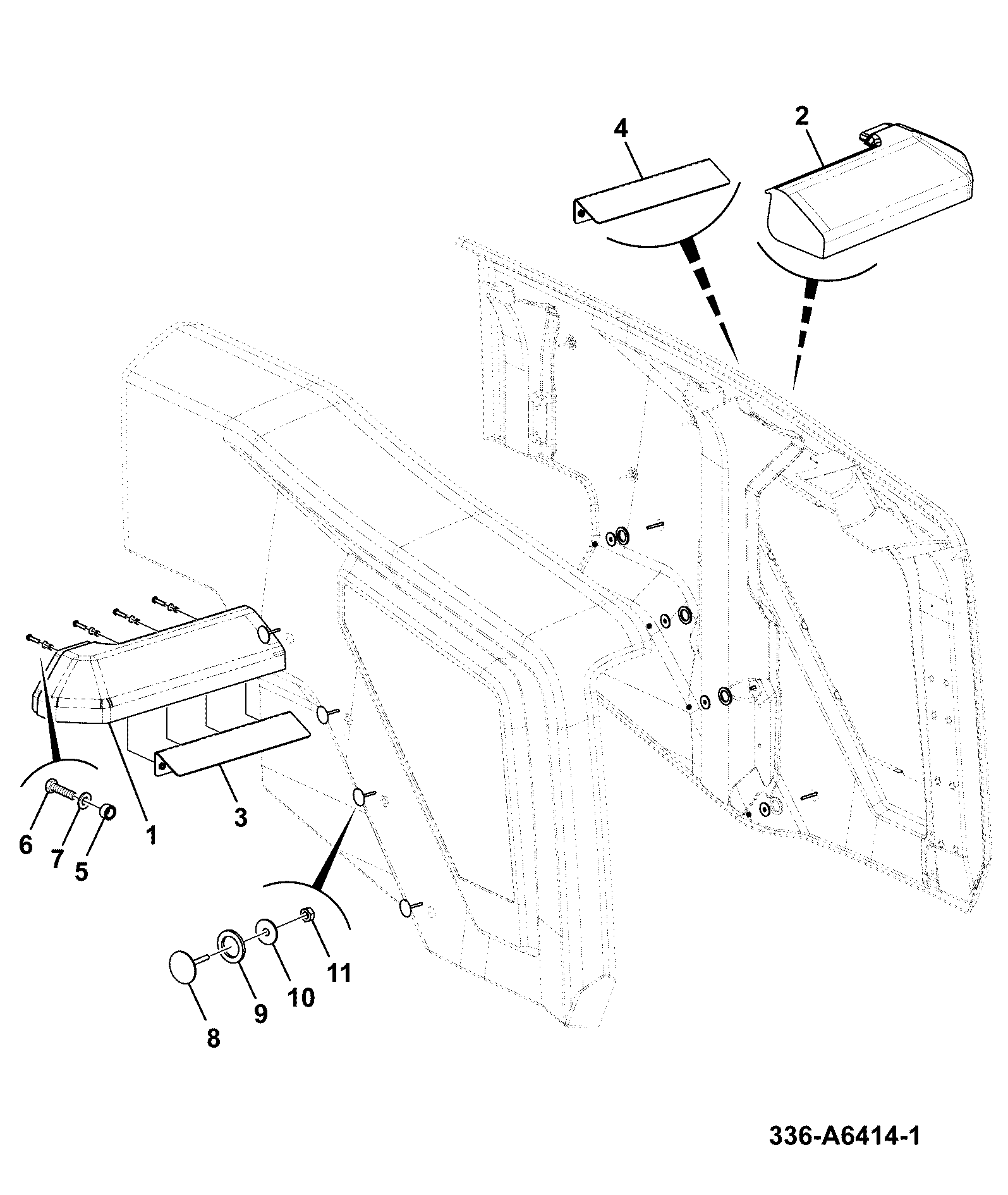

DIAG-B150-125-1-404719 B150-125-1 FENDERS ASSEMBLY NO REAR 427/437
View Diagram -

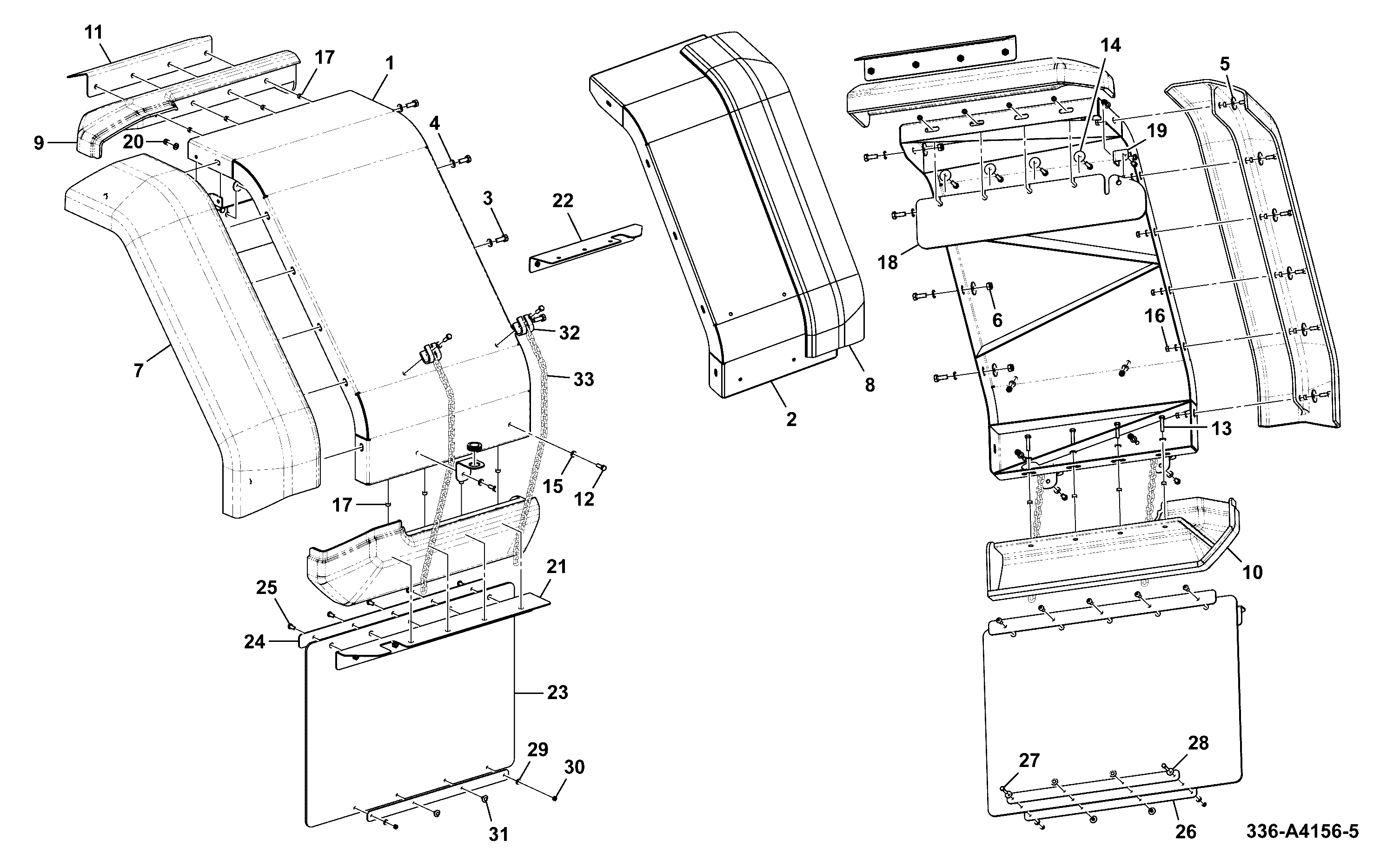

DIAG-B150-95-5-404719 B150-95-5 FENDERS ASSEMBLY FRONT FENDERS 620
View Diagram
