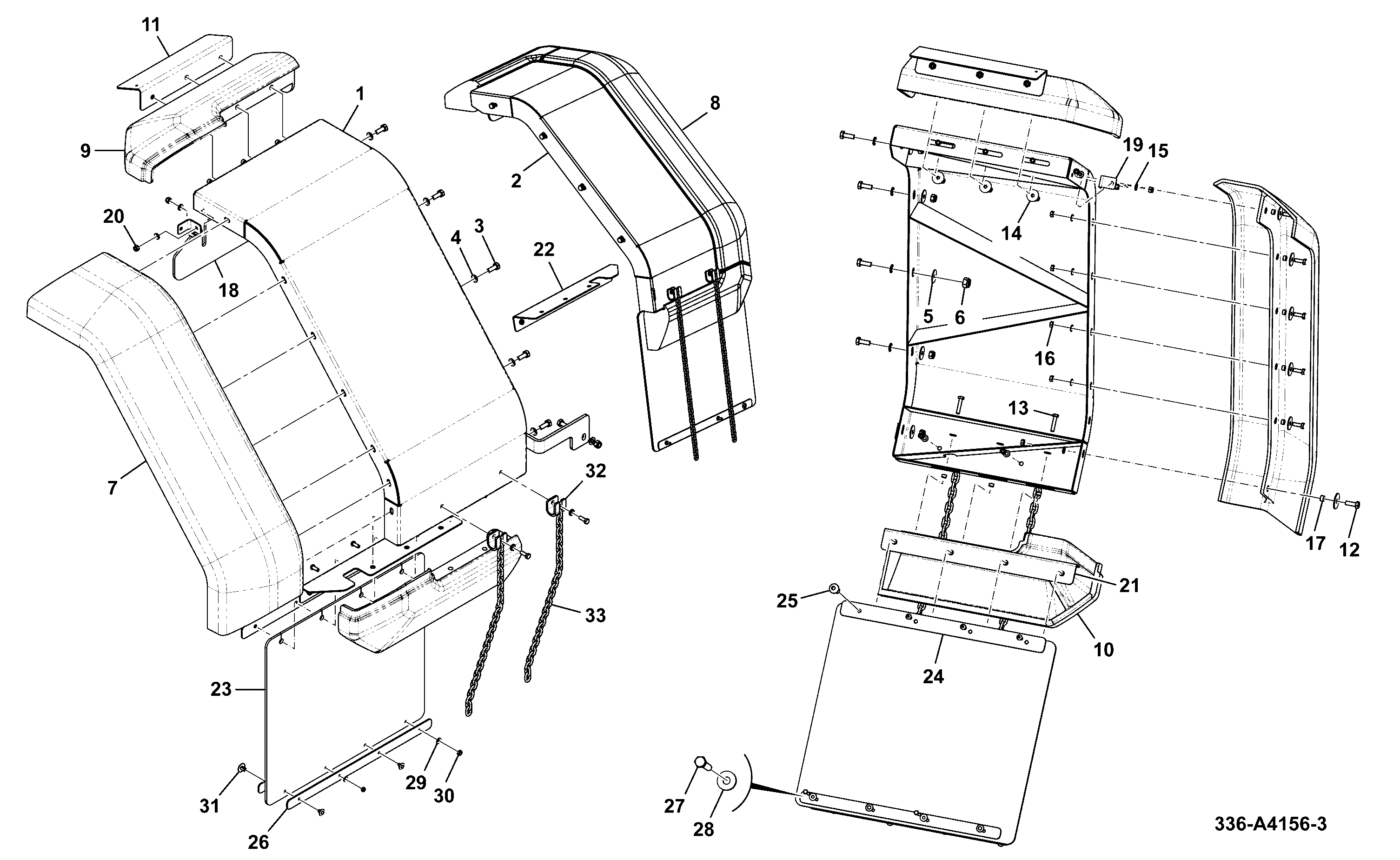

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA 427 LH FRONT FENDER 62 400/C0148 | 1 | $722.92 | |||
| 2 | WA 427 RH FRONT FENDER 62 400/C0149 | 1 | $824.31 | |||
| 3 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 4 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 5 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 6 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 7 | LH FRONT FENDER TRIM 400/D1548 | 1 | $604.73 | |||
| 8 | RH FRONT FENDER TRIM 400/D6288 | 1 | $597.08 | |||
| 9 | FENDER TRIM CORNER L575 335/H5151 | 1 | $202.91 | |||
| 10 | FENDER TRIM CORNER L575 S 335/H5145 | 1 | $202.91 | |||
| 11 | WA FRONT TRIM SUPPRT BRKT 335/H7005 | 1 | $66.79 | |||
| 12 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 13 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 14 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 17 | SPACER COLLAR 829/31478 | 1 | $20.16 | |||
| 18 | 427 UPPER FRONT MUDFLAP 6 400/A2310 | 1 | $25.74 | |||
| 19 | MTG BRKT 335/H9567 | 1 | $84.49 | |||
| 20 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 21 | WA LH FRONT MUDFLAP SUPPO 335/H6102 | 1 | $201.98 | |||
| 22 | WA RH FRONT MUDFLAP SUPPO 335/H6110 | 1 | $186.36 | |||
| 23 | 427 FRONT MUDFLAP 620 335/H6048 | 1 | $69.01 | |||
| 24 | FRONT MUDFLAP STRIP 334/S1093 | 1 | $24.17 | |||
| 25 | SCREW M8x20 BUTTON SOCKET 826/01486 | 1 | $1.12 | |||
| 26 | 427 MUDFLAP STIFFENER 335/H7507 | 1 | $55.60 | |||
| 27 | SET SCREW M6x35 1315/0209D | 1 | $0.58 | |||
| 28 | WASHER 1/4 PLAIN (P392) 1413/0001D | 1 | $27.41 | |||
| 29 | WASHER 1/4IN SMALL 1410/0001Z 1410/0001D | 1 | $0.29 | |||
| 30 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 31 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 32 | Horseshoe Bracket 331/19851 | 1 | $118.89 | |||
| 33 | RETENTION CHAIN 335/H2818 | 1 | $49.98 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-B150-95-1-404719 B150-95-1 FENDERS ASSEMBLY FRONT FENDERS 620
View Diagram -
DIAG-B150-115-1-404719 B150-115-1 FENDERS ASSEMBLY FRONT 427 - 20.5
View Diagram -
DIAG-B150-90-1-404719 B150-90-1 FENDERS ASSEMBLY MID FENDERS 620
View Diagram
