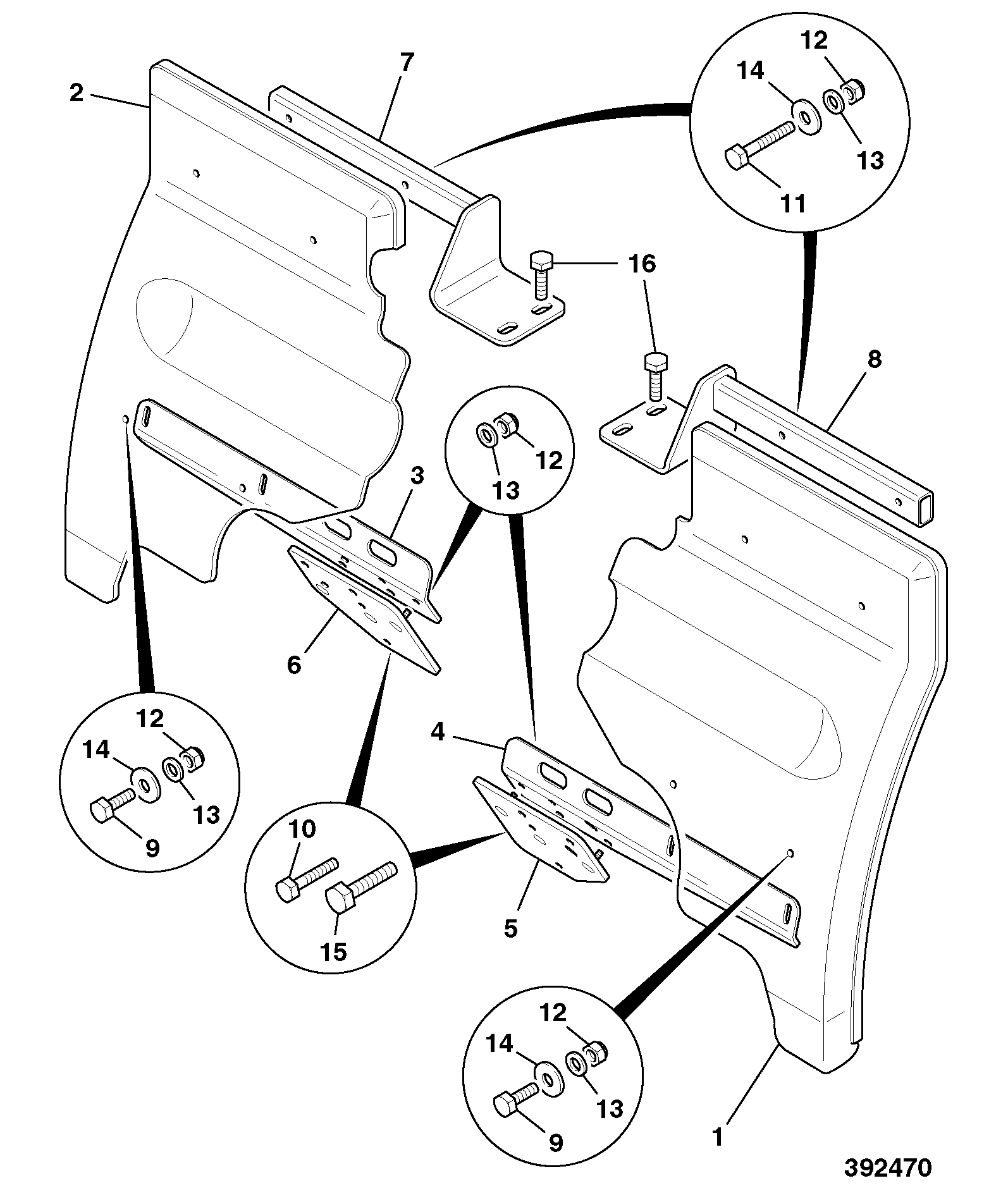

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | ARM FENDER MOUNTIN 331/17292 | 1 | $115.91 | |||
| 4 | MOUNTING - FENDER RH BOTT 331/17293 | 1 | $135.05 | |||
| 5 | PLATE SPACER, LH 331/17288 | 1 | $108.37 | |||
| 6 | MOUNTING - FENDER RH BOTT 331/17291 | 1 | $91.16 | |||
| 8 | MOUNTING - FENDER LH TOP 331/17284 | 1 | $203.76 | |||
| 9 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 10 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 11 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 12 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 13 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 14 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 15 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 16 | SET SCREW M16x50 1315/0712Z | 1 | $12.55 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-B1-6-5-393553 B1-6-5 FENDERS FRONT
View Diagram -
DIAG-B1-6-3-393553 B1-6-3 FENDER EXTENSIONS FRONT OPTIONAL
View Diagram -
DIAG-B1-6-8-393553 B1-6-8 FENDER EXTENSIONS REAR OPTIONAL
View Diagram
