Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | FENDER EXTENSION F 331/17923 | 1 | $172.56 | |||
| 2 | FENDER EXTENSION F 331/17924 | 1 | $144.64 | |||
| 3 | BRACKET FENDER, TO 331/18410 | 1 | $6.76 | |||
| 4 | BRACKET FIXED FRON 335/01083 | 1 | $444.02 | |||
| 5 | BRACKET FIXED FRON 335/01084 | 1 | $390.29 | |||
| 6 | MUDFLAP 274/00396 | 1 | $135.02 | |||
| 8 | SPACER - 11x30x8 THK. 823/10312 | 1 | $28.69 | |||
| 9 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 10 | SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | |||
| 11 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 12 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 13 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 14 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 15 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 16 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 17 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 18 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 19 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 20 | SET SCREW M10x35 1315/0409Z | 1 | $8.37 | |||
| 21 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 22 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 23 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-B1-6-4-393553 B1-6-4 FENDER EXTENSIONS REAR OPTIONAL
View Diagram -

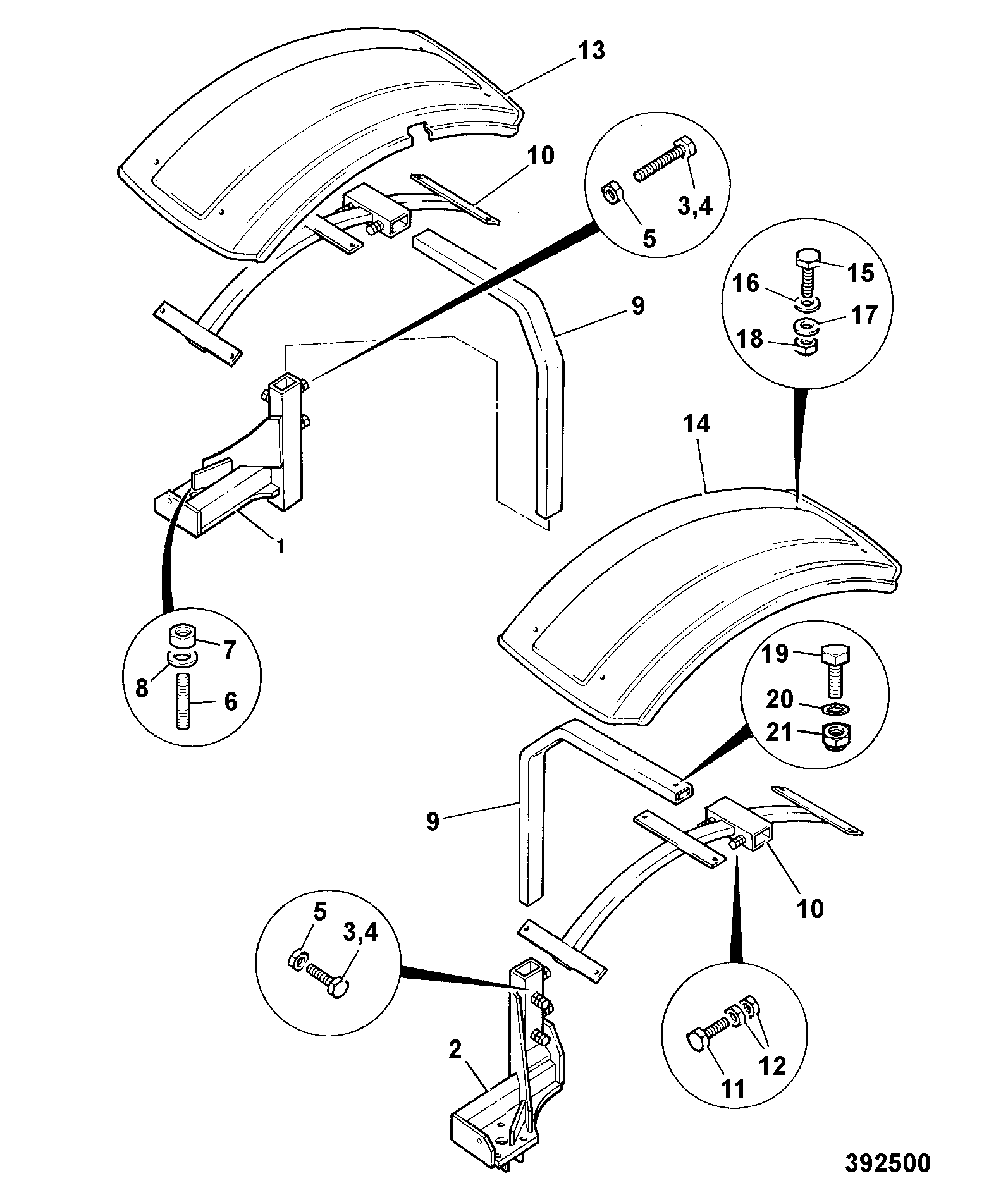

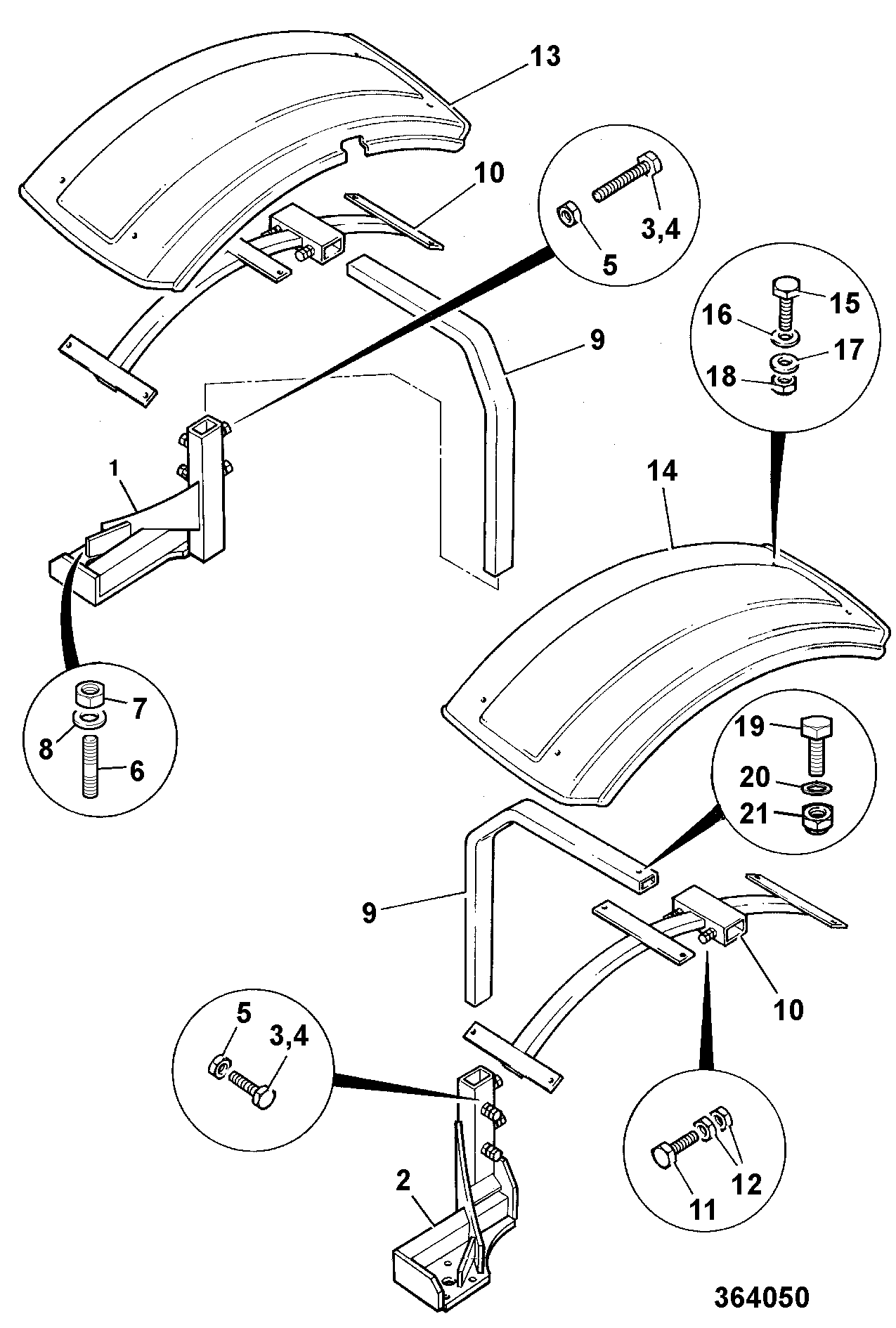

DIAG-B1-6-1-393553-10483065 B1-6-1 FENDERS FRONT
View Diagram -
DIAG-B1-6-5-393553 B1-6-5 FENDERS FRONT
View Diagram
