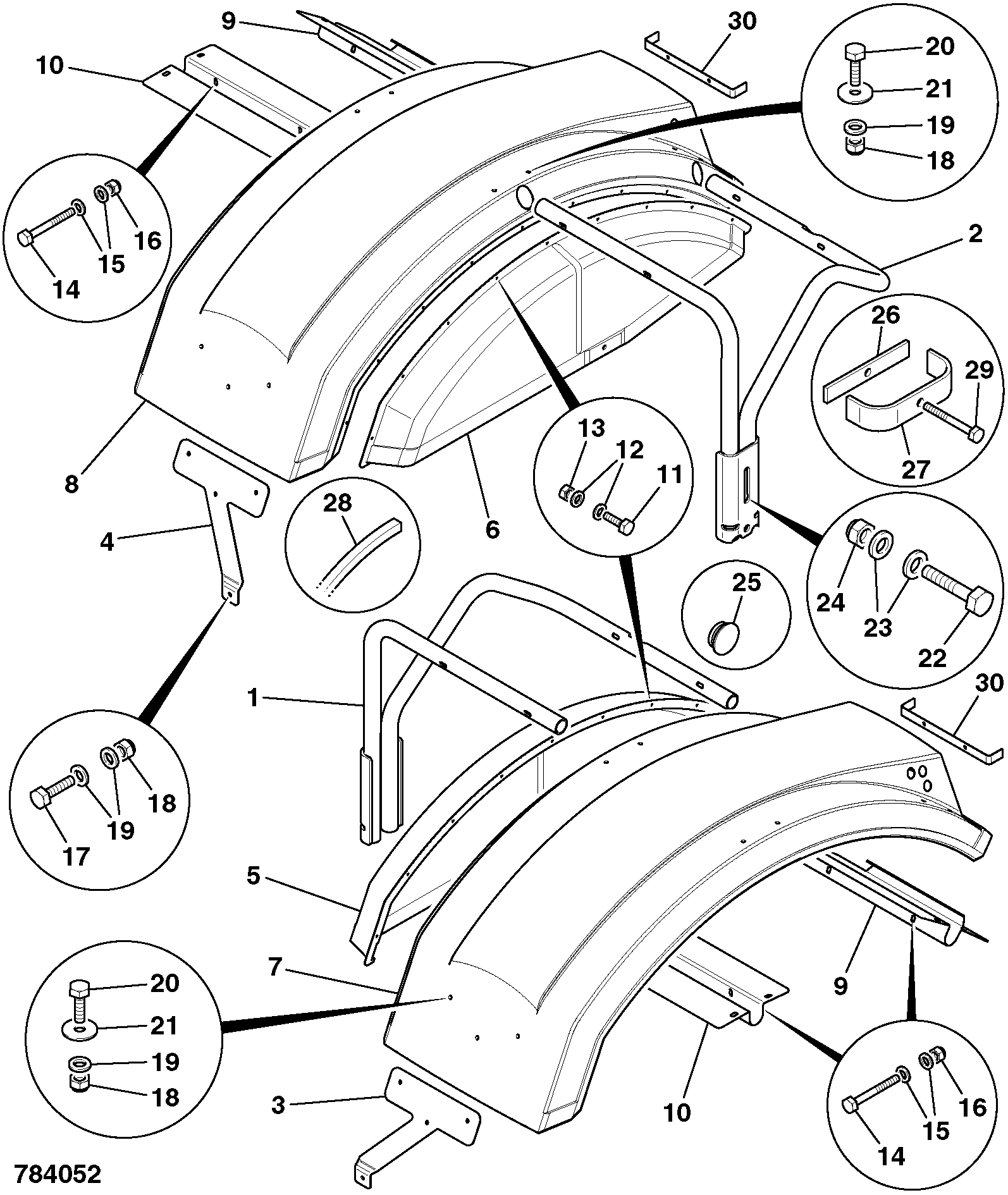

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PANNIER FENDER MOULDING 331/17927 | 1 | $678.38 | |||
| 2 | MOULDING FENDER P132S FT 331/24805 | 1 | $445.62 | |||
| 3 | BRACKET SPAT LOWER 331/54870 | 1 | $606.67 | |||
| 5 | BRKT RH FRONT FIXED FENDER. 335/10571 | 1 | $501.82 | |||
| 6 | MUDFLAP 274/00396 | 1 | $135.02 | |||
| 7 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 8 | HEX SCREW M6x32 LG 1315/0208D | 1 | $0.51 | |||
| 9 | SET SCREW M6x35 1315/0209D | 1 | $0.58 | |||
| 10 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 11 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 12 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 13 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 14 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 17 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 18 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 19 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 20 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 21 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 22 | SET SCREW M12x40 1315/0510D | 1 | $2.86 | |||
| 23 | SET SCREW M12x45 1315/0511D | 1 | $3.38 | |||
| 24 | SET-SCREW M12 L-_50mm 1315/0512D | 1 | $3.59 | |||
| 25 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 26 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-B1-6-1-393717 B1-6-1 FENDERS FRONT
View Diagram -
DIAG-B1-7-1-393717 B1-7-1 FENDERS REAR
View Diagram -
DIAG-B1-5-4-393717 B1-5-4 BONNET SUPPORT INSTALLAION
View Diagram
