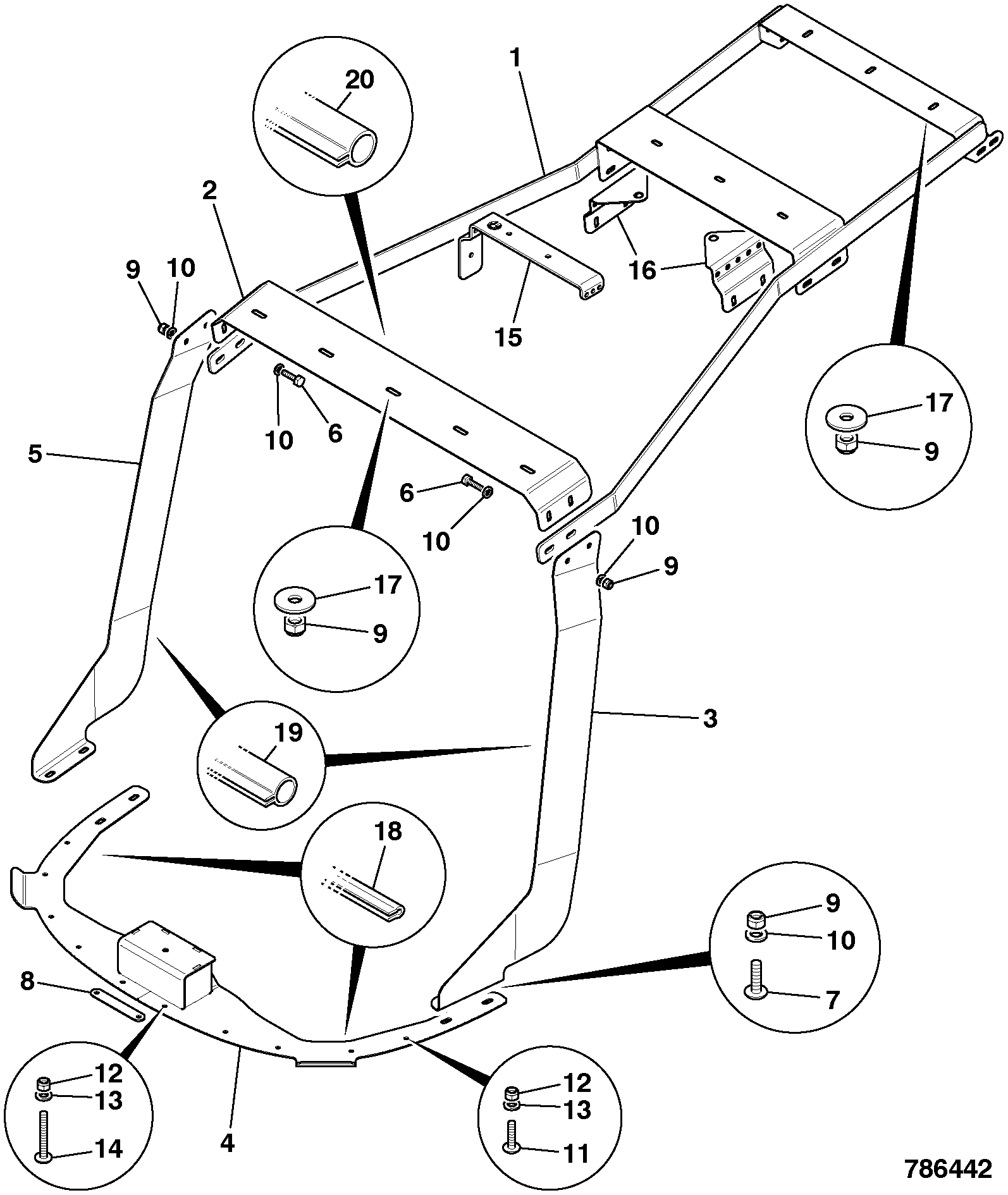

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BRKT - CENTRAL SPINE 331/55604 | 1 | $149.08 | |||
| 2 | BRKT - UPPER BONNET SUPPORT 331/55603 | 1 | $208.31 | |||
| 3 | BRKT: LOWER BONNET SUPPORT 331/55208 | 1 | $235.83 | |||
| 4 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 5 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 6 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 7 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 8 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 9 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 10 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 11 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 12 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-B1-5-3-393717 B1-5-3 BONNET HINGE & CATCH INSTALLATION
View Diagram -
DIAG-B1-6-1-393717 B1-6-1 FENDERS FRONT
View Diagram -
DIAG-B1-5-2-393717 B1-5-2 BONNET FRAME INSTALLATION
View Diagram
