Kubota M100GXDTC A45001 RESERVE TANK [OLD] Parts Diagram

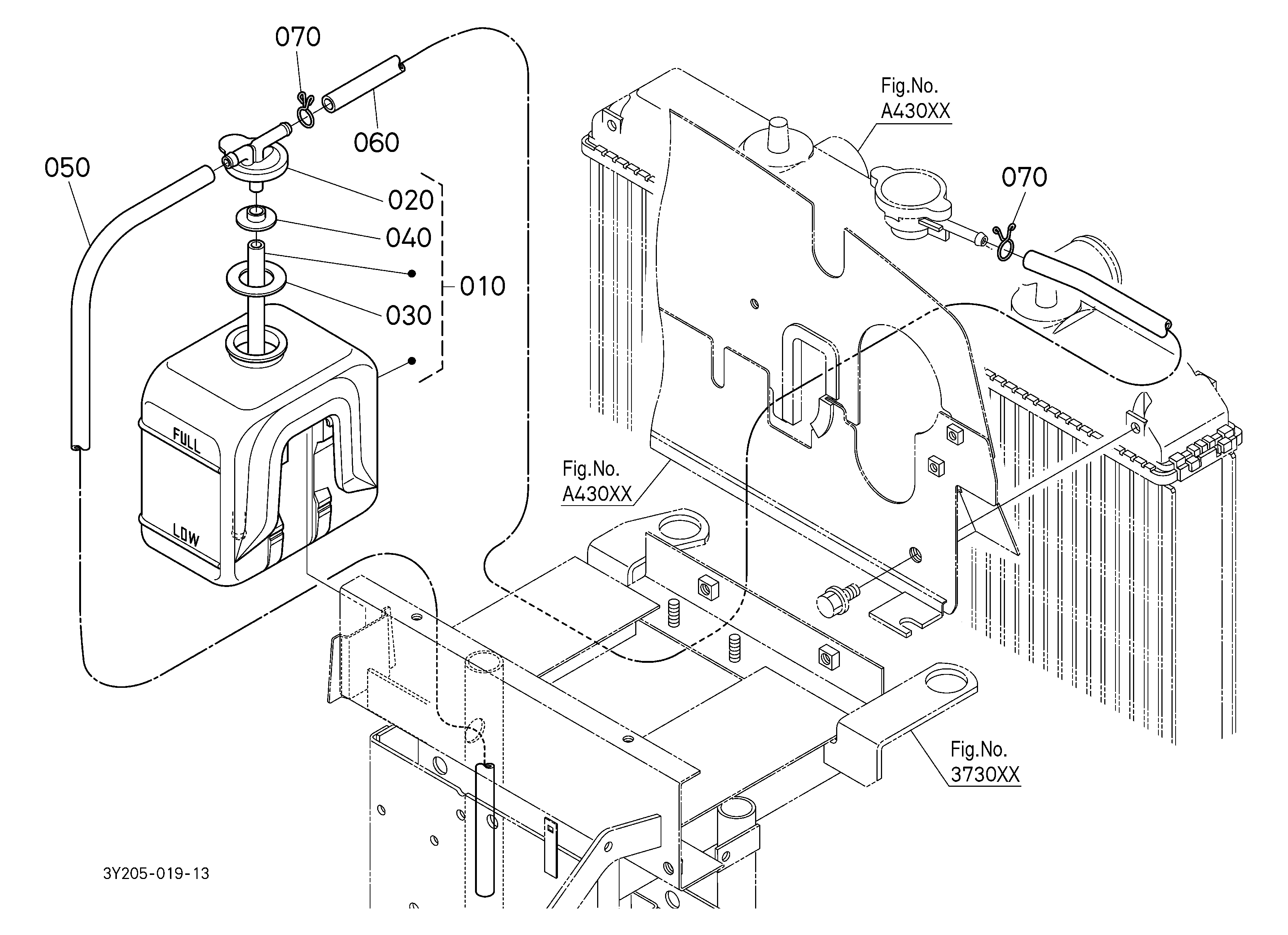

Exploded-view parts diagram "A45001 RESERVE TANK [OLD]" for the Kubota M100GXDTC and Kubota M110GXDTC. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY TANK,RESERV 1G642-72400 | 1 | $155.25 | |||
| 020 | CAP 3F240-72730 15531-72422 | 1 | $7.36 | |||
| 030 | GASKET NA 15272-72430 15531-72432 | 1 | $5.49 | |||
| 040 | Plate 3G704-17390 | 1 | $37.79 | |||
| 050 | RUBBER, HOSE 19839-72440 | 1 | $21.79 | |||
| 060 | PIPE,WATER 2 58742-25180 | 1 | $13.51 | |||
| 070 | CLIP, PIPE 15501-72470 | 1 | $4.60 | |||
Showing 1 to 7 of 7 parts
