Kubota T1760 A01000 ACCELERATOR LEVER Parts Diagram
Exploded-view parts diagram "A01000 ACCELERATOR LEVER" for the Kubota T1760. 24 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY AUTOACCEL K1142-45112 K1142-45110 Discontinued | 1 | $177.15 | |||
| 015 | BRACKET, 1 ATA K1122-89333 K1122-89330 | 1 | $10.68 | |||
| 020 | BRACKET 2 ATA K1122-89342 K1122-89340 | 1 | $5.90 | |||
| 030 | CABLE, THROTTLE K1142-89410 | 1 | $21.84 | |||
| 040 | CABLE 2, ATA SPE K1122-89422 K1122-89420 | 1 | $33.65 | |||
| 050 | CABLE 3, ATA PTO K1122-89433 K1122-89430 | 1 | $23.89 | |||
| 060 | LEVER,ATA K1122-89370 | 1 | $8.08 | |||
| 070 | SHAFT, ATA K1122-89312 K1122-89310 Discontinued | 1 | $57.97 | |||
| 080 | DISK SPRING K1122-89470 K1122-89473 | 1 | $0.61 | |||
| 090 | Metric Hex Lock Nut K5112-72840 K5112-72842 | 1 | $0.36 | |||
| 100 | PULLEY,CENTER K1122-89350 Discontinued | 1 | $15.40 | |||
| 110 | PULLEY,SIDE K1122-89360 | 1 | $11.23 | |||
| 120 | WASHER (ATA) K1122-89510 K1122-89513 | 1 | $1.48 | |||
| 125 | WASHER, ATA 2 K1122-89520 | 1 | $2.44 | |||
| 130 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 140 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 150 | SPRING, ATA K1122-89383 K1122-89380 Discontinued | 1 | $25.62 | |||
| 160 | Nut (Fastener) K1122-89480 K7561-54190 | 1 | $0.51 | |||
| 170 | Flange Bolt - M8 x 1.25 x 20 mm 01754-50820 | 1 | $4.70 | |||
| 180 | GRIP, ACCEL K1122-45123 K1122-45120 | 1 | $11.39 | |||
| 185 | MARK, GRIP ACCEL K1122-65240 | 1 | $2.81 | |||
| 190 | PIN CLEVIS PLTD 75599-51112 | 1 | $1.42 | |||
| 200 | Flat Plated Washer 70050-02035 75599-32011 | 1 | $0.39 | |||
| 210 | Plated Cotter Pin (Cotter Key) 75599-53152 75599-52115 | 1 | $0.30 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-E90000-86289 E90000 KING PIN KIT [OPTION]
View Diagram -
DIAG-A10000-86289 A10000 FUEL TANK
View Diagram -

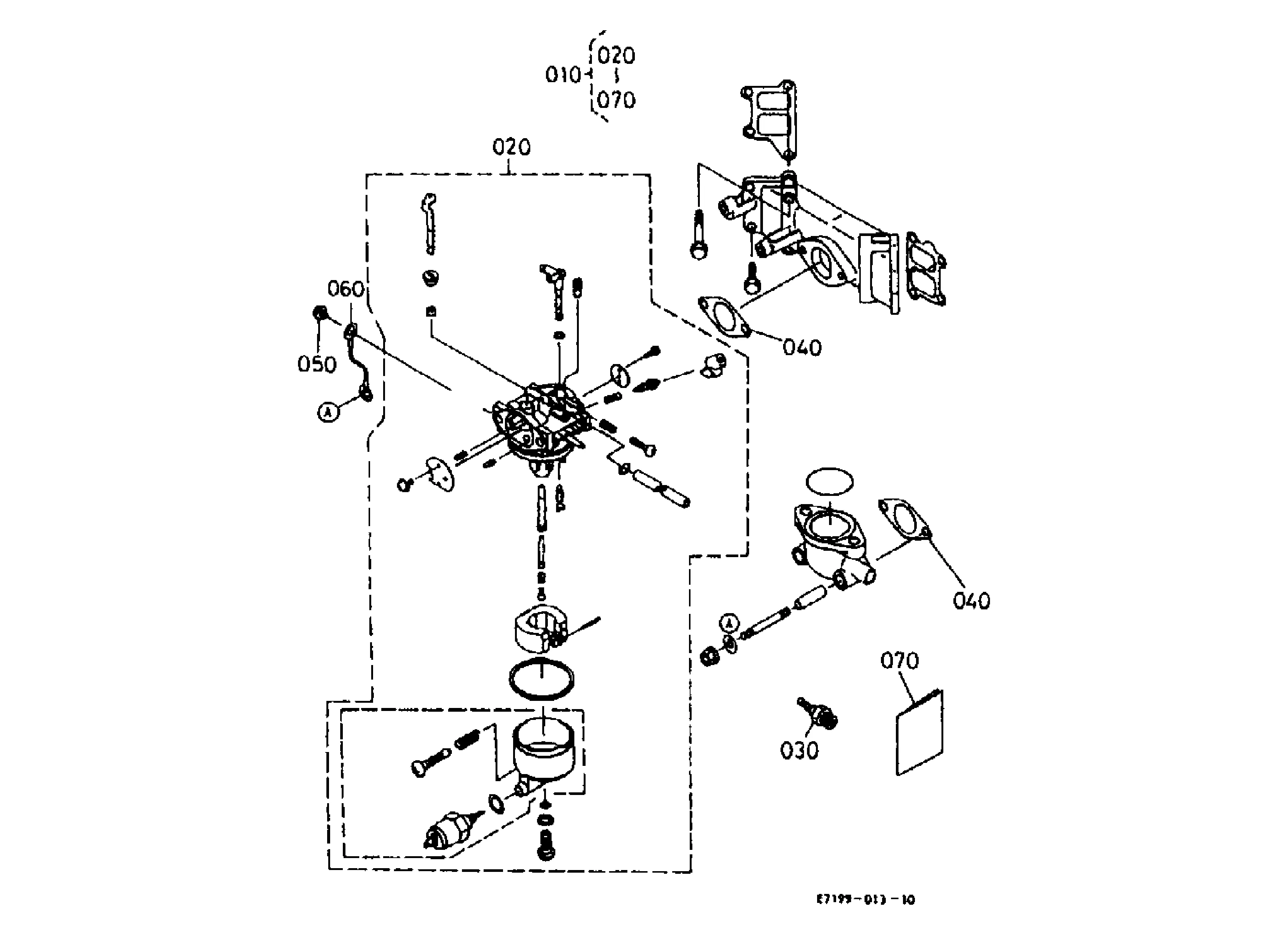

DIAG-091000-86289 091000 CARBURETOR KIT [OPTION]
