Kubota SVL65-2 584600 AIR CLEANER Parts Diagram
Exploded-view parts diagram "584600 AIR CLEANER" for the Kubota SVL65-2 and Kubota SVL65-2C. 9 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | CLEANER, AIR ASSY V0521-43120 | 1 | $692.29 | |||
| 010 | ASSY CLEANER, AI V0521-43100 | 1 | $628.44 | |||
| 020 | Air Cleaner Restriction Indicator 90067-51162 15831-11090 | 1 | $76.69 | |||
| 030 | Bolt with Washer 01125-50820 | 1 | $1.37 | |||
| 040 | BRACKET(AIR CLEANER) V0211-43160 | 1 | $40.02 | |||
| 050 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 060 | HOSE(INLET) V0211-43210 | 1 | $90.42 | |||
| 070 | CLAMP RC401-63190 | 1 | $20.15 | |||
| 080 | CLAMP, HOSE RD809-63100 | 1 | $15.13 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-583500-341464 583500 RADIATOR BRACKET
View Diagram -
DIAG-583400-341464 583400 RADIATOR
View Diagram -

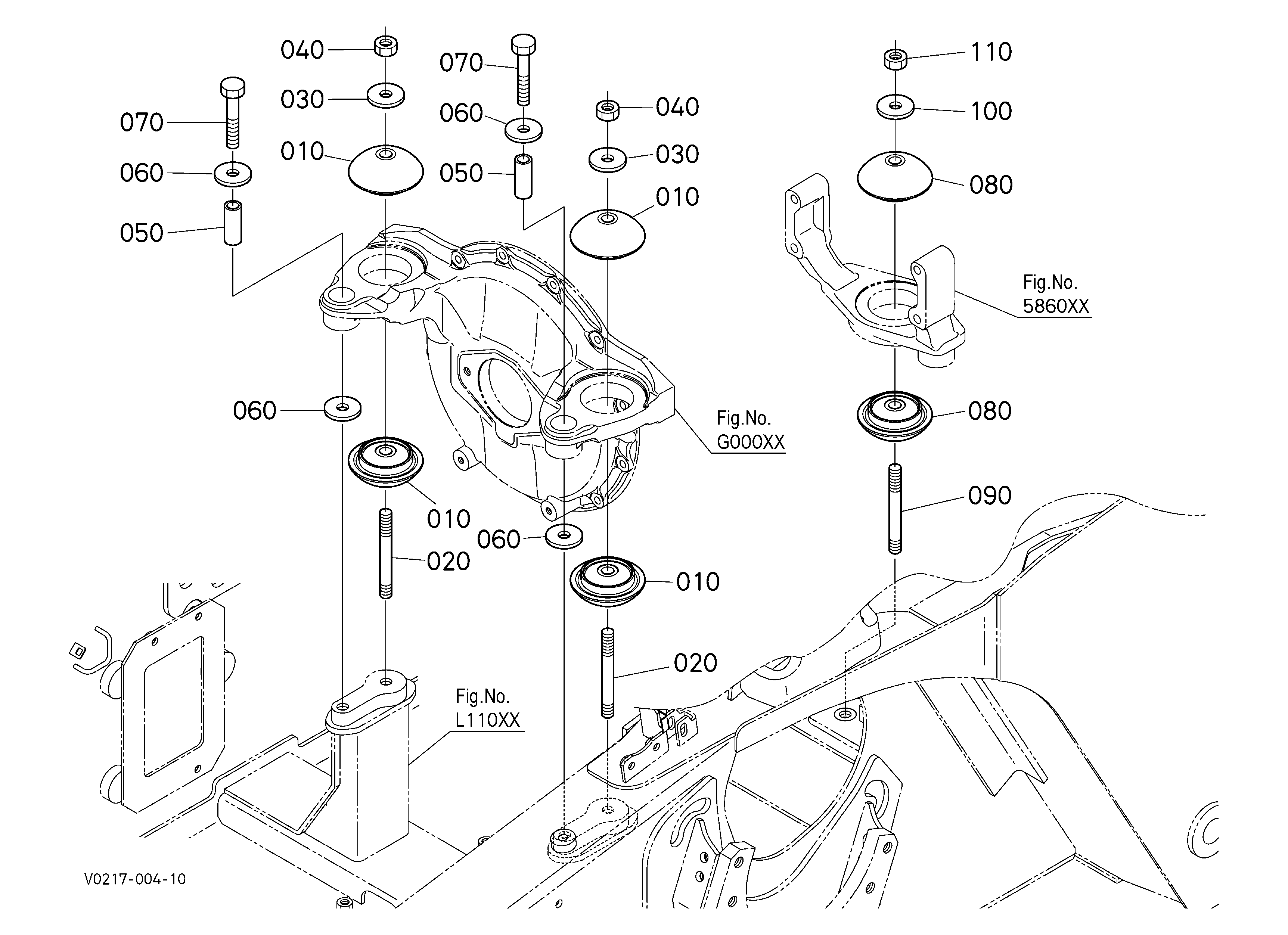

DIAG-586500-341464 586500 ENGINE MOUNT
