Kubota SVL65-2 583400 RADIATOR Parts Diagram

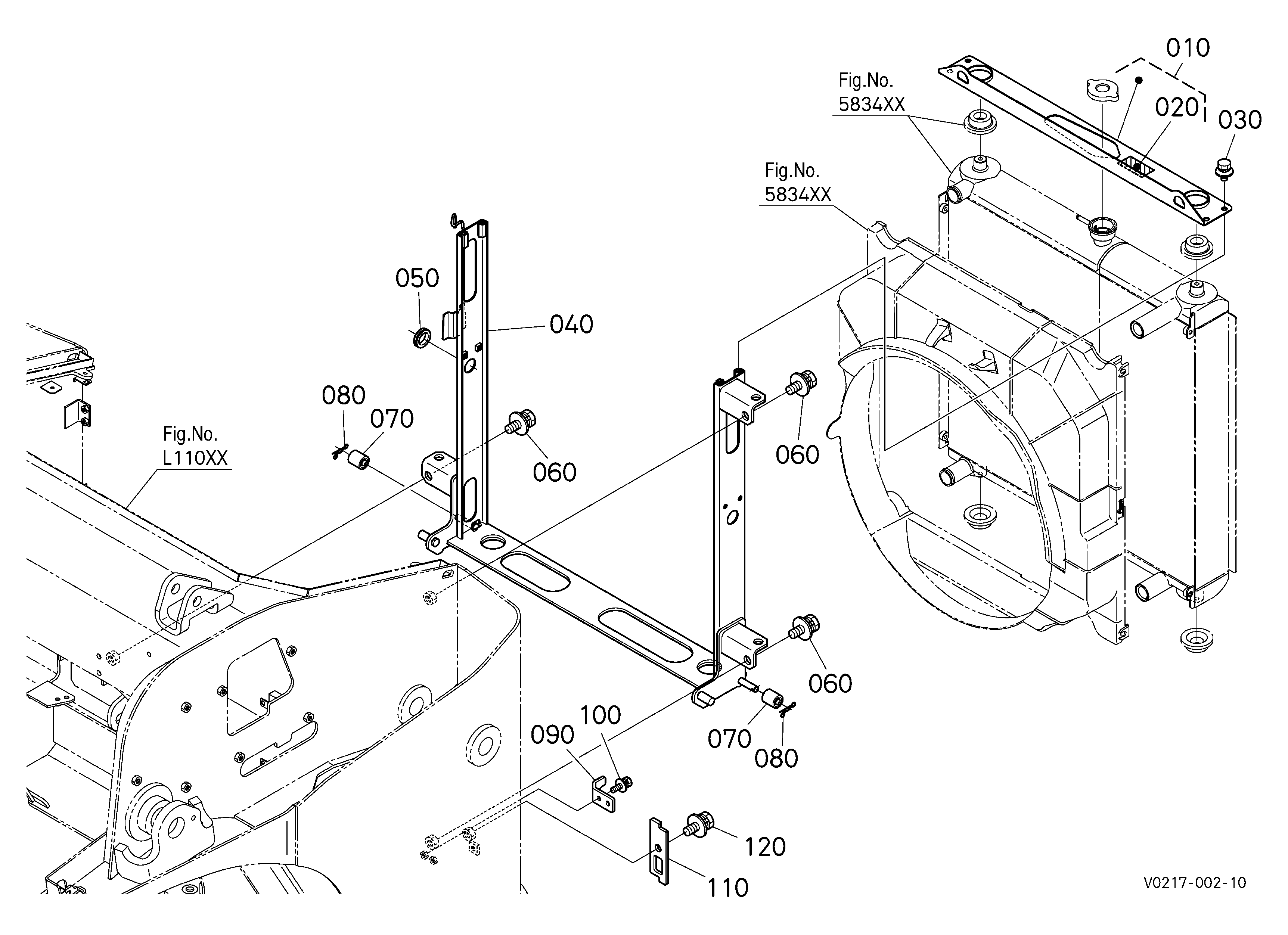

Exploded-view parts diagram "583400 RADIATOR" for the Kubota SVL65-2 and Kubota SVL65-2C. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, RADIATOR (W,OC) V0211-43500 | 1 | $3,032.01 | |||
| 020 | CAP, RADIATOR V0521-43510 | 1 | $57.62 | |||
| 030 | PLUG V0521-43930 | 1 | $27.13 | |||
| 040 | WASHER V0521-43940 | 1 | $9.27 | |||
| 050 | TRIM V0511-43920 | 1 | $17.99 | |||
| 060 | JOINT,PIPE MR003-60610 | 1 | $61.53 | |||
| 070 | O-Ring Seal (Hydraulic/Oil Piping) 04817-00240 | 1 | $2.50 | |||
| 080 | JOINT RD809-61860 | 1 | $118.63 | |||
| 120 | RUBBER V0511-43522 | 1 | $6.13 | |||
| 130 | KIT SHROUD LABEL***FRENCH LABEL ONLY*** V0511-99302 V0511-99304 Discontinued | 1 | $286.88 | |||
| 130 | SHROUD,KIT(LABEL,A) .. V0511-99753 V0511-99756 | 1 | $273.95 | |||
| 140 | LABEL V0511-57390 | 1 | $11.34 | |||
| 150 | LABEL V0511-57440 V0521-57440 | 1 | $10.27 | |||
| 150 | LABEL V0521-59440 | 1 | $9.92 | |||
| 160 | Bolt 01127-50825 | 1 | $1.57 | |||
| 170 | TRIM V0511-43590 | 1 | $36.31 | |||
Showing 1 to 16 of 16 parts
