X580-1-1 OIL FILLER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cap oil filler 333/H5494	1	AVAILABLE TO ORDER	$62.11	Quantity
2	O Ring 02/960049	1	AVAILABLE TO ORDER	$4.62	Quantity
3	O Ring 333/H5497	1	AVAILABLE TO ORDER	$7.18	Quantity
4	oil fill assy 333/H5498	1	AVAILABLE TO ORDER	$70.62	Quantity
5	m6x20 333/H5203	1	AVAILABLE TO ORDER	$3.61	Quantity

Showing 1 to 5 of 5 parts

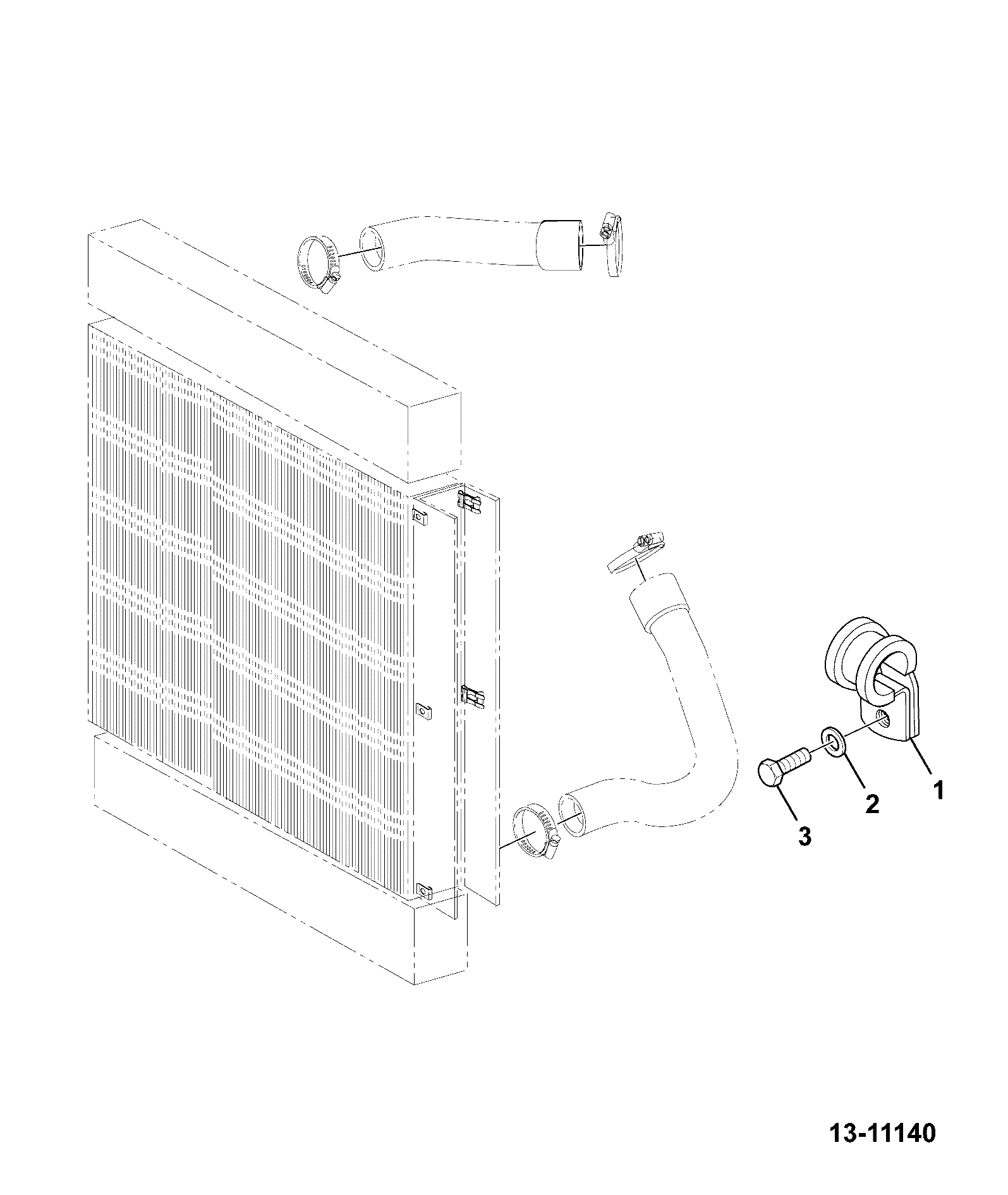

DIAG-X420-1-1-395342 X420-1-1 THERMOSTAT - WATER HOSE CLAMP
View Diagram
DIAG-X720-1-1-395342 X720-1-1 DRIVE BELT AND PULLEYS
View Diagram

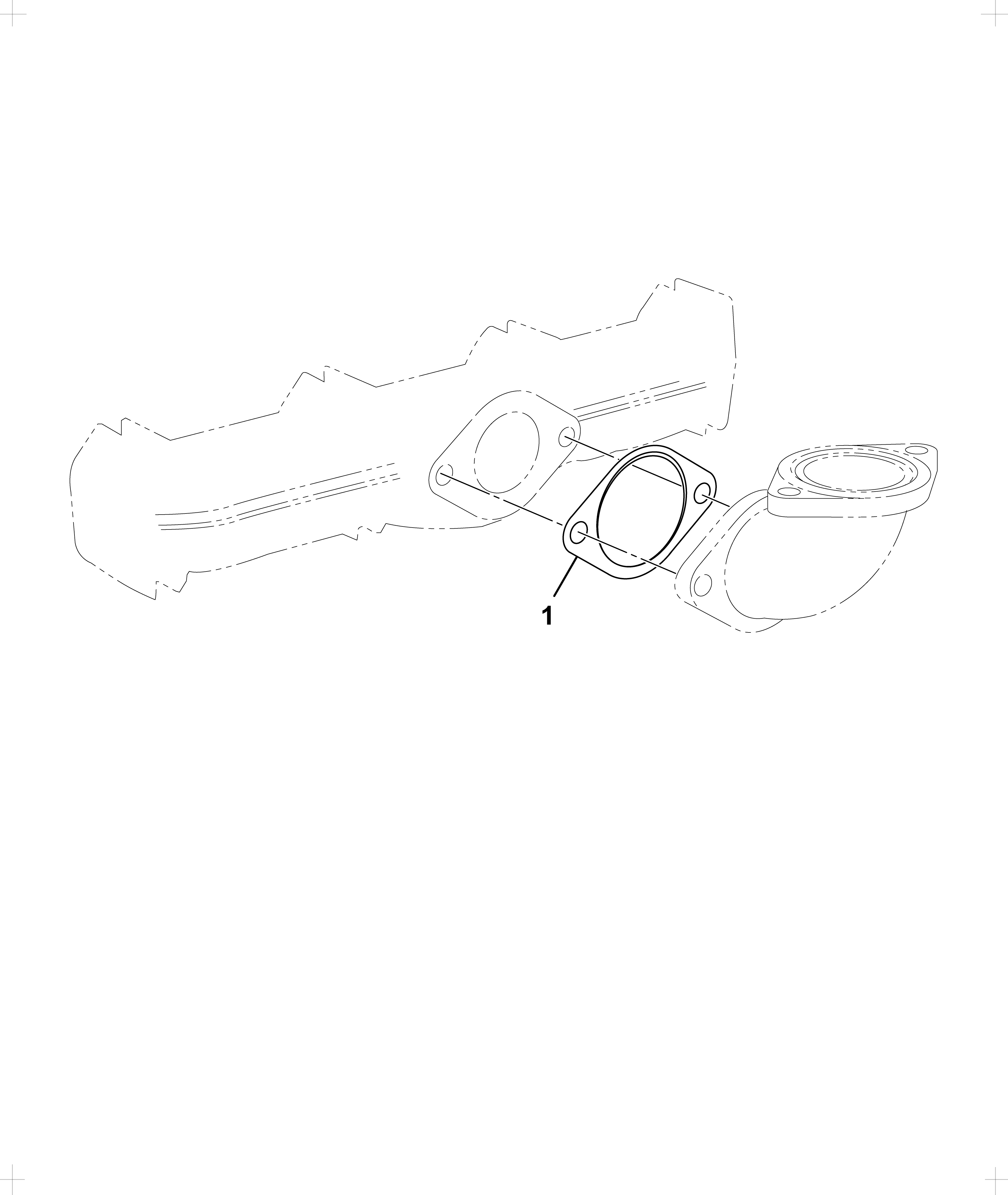

DIAG-X810-2-1-395342 X810-2-1 TURBOCHARGER EXHAUST FLANGE
