Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Kit Sundry parts 332/L2402 | 1 | $200.87 | ||||
| Shim 332/L2380 | 1 | $20.19 | ||||
| 1 | Belt drive 333/E2532 | 1 | $153.69 | |||
| 1.1 | V-ribbed belt 334/D1249 | 1 | $112.54 | |||
| 2 | support 334/C0638 | 1 | $248.46 | |||
| 3 | Nut Nut 332/L2298 | 1 | $0.92 | |||
| 4 | Nut 02/950295 | 1 | $5.43 | |||
| 5 | Screw 333/E2534 | 1 | $20.50 | |||
| 6 | Washer 02/950253 | 1 | $1.97 | |||
| 7 | bracket mounting 02/950141 334/C8344 | 1 | $1.39 | |||
| 8 | Screw Screw 332/L2347 | 1 | $4.77 | |||
| 9 | Pin 02/950336 | 1 | $1.97 | |||
| 10 | Nut M16 714/40437 | 1 | $6.11 | |||
| 11 | Washer 332/L2333 | 1 | $2.83 | |||
| 12 | Pulley 333/E2535 | 1 | $214.30 | |||
| 13 | Alternator 332/L2373 | 1 | $2,434.86 | |||
| 14 | Bearing 332/L2374 | 1 | $147.95 | |||
| 15 | Bearing 332/L2376 | 1 | $248.02 | |||
| 17 | Rectifier 332/L2383 | 1 | $713.97 | |||
| 18 | Regulator 332/L2386 | 1 | $451.54 | |||
| 19 | Cover Shield 332/L2387 | 1 | $55.57 | |||
| 21 | Adjuster tensioner 333/E2549 | 1 | $578.49 | |||
| 22 | Flange flange 333/E2550 | 1 | $106.36 | |||
| 23 | Screw 333/E2551 | 1 | $4.62 | |||
| 24 | Washer 02/950058 | 1 | $1.52 | |||
| 25 | Washer 333/E2552 | 1 | $6.26 | |||
| 26 | Bracket 334/C8335 | 1 | $216.34 | |||
| 27 | Washer 02/950049 | 1 | $2.83 | |||
| 28 | axle 334/C8340 | 1 | $72.54 | |||
| 29 | pulley 334/C8336 | 1 | $258.93 | |||
| 30 | Washer 332/L2760 334/C8341 | 1 | $37.73 | |||
| 31 | Washer 02/950068 | 1 | $1.70 | |||
| 32 | Bolt Pulley 333/E2225 334/C8343 | 1 | $2.83 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-W810-1-1-393648 W810-1-1 TURBOCHARGER ASSEMBLY
View Diagram -

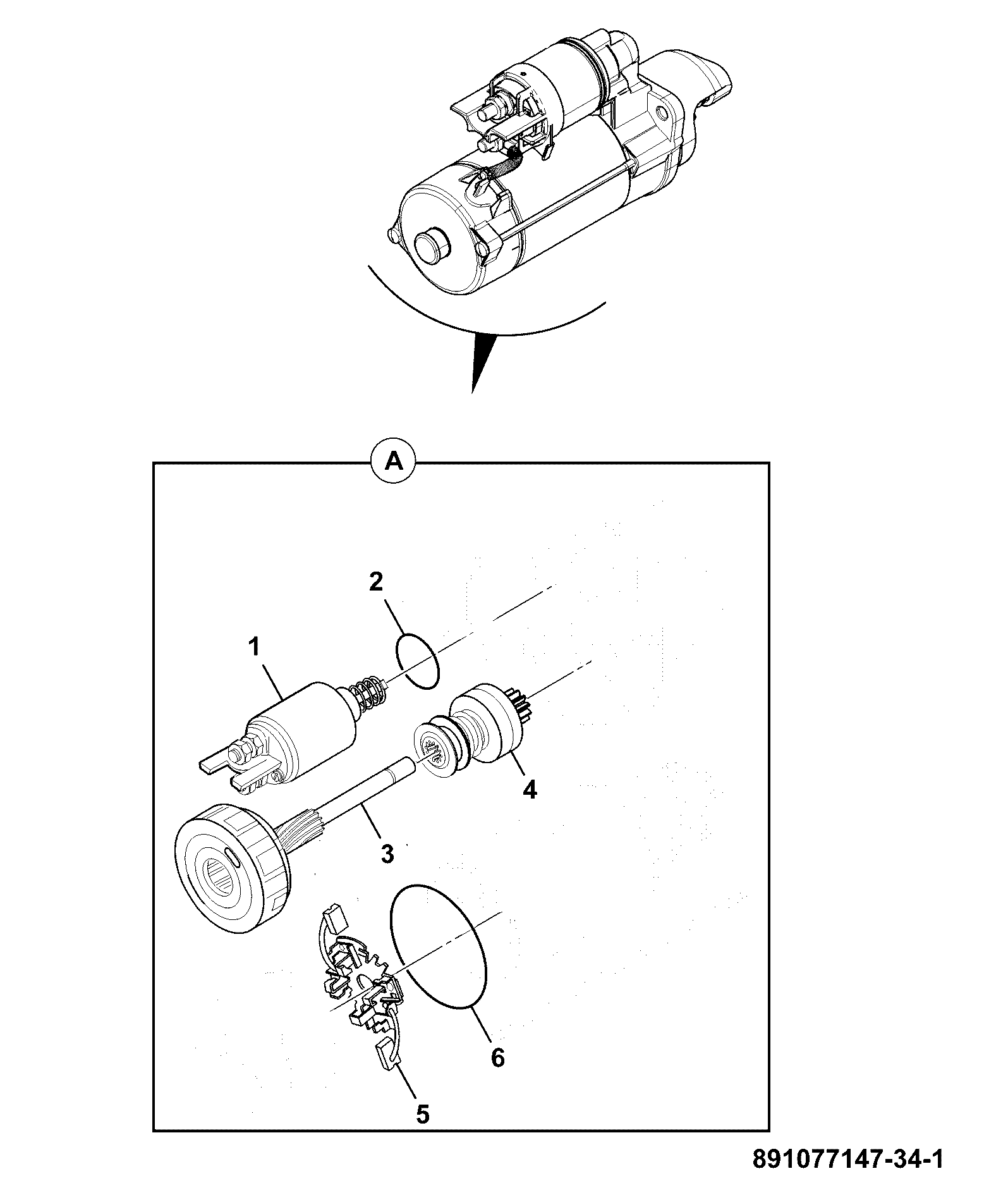

DIAG-W850-1-1-393648 W850-1-1 STARTER MOTOR ASSEMBLY
View Diagram -

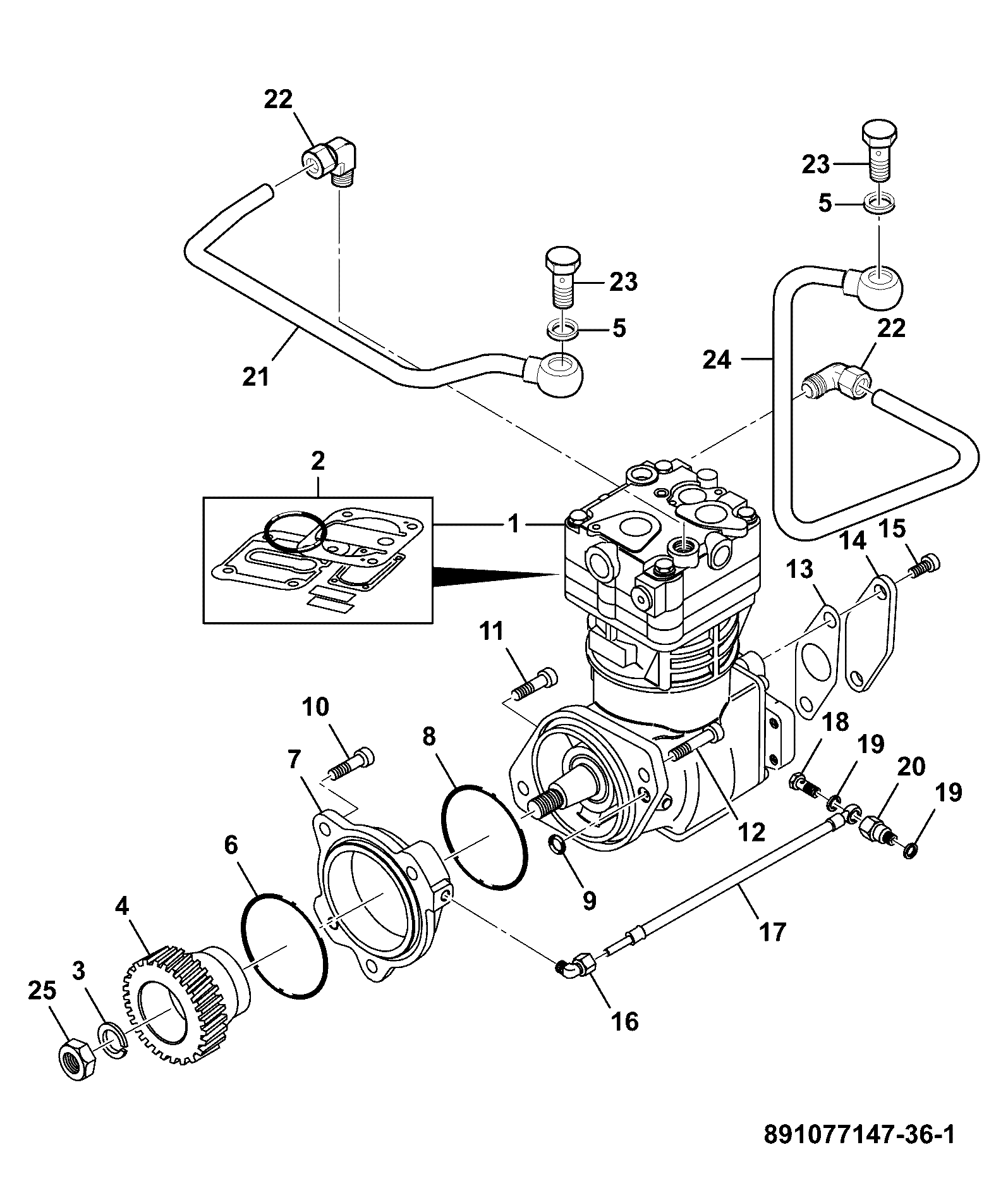

DIAG-W800-1-1-393648 W800-1-1 COMPRESSOR ASSEMBLY
