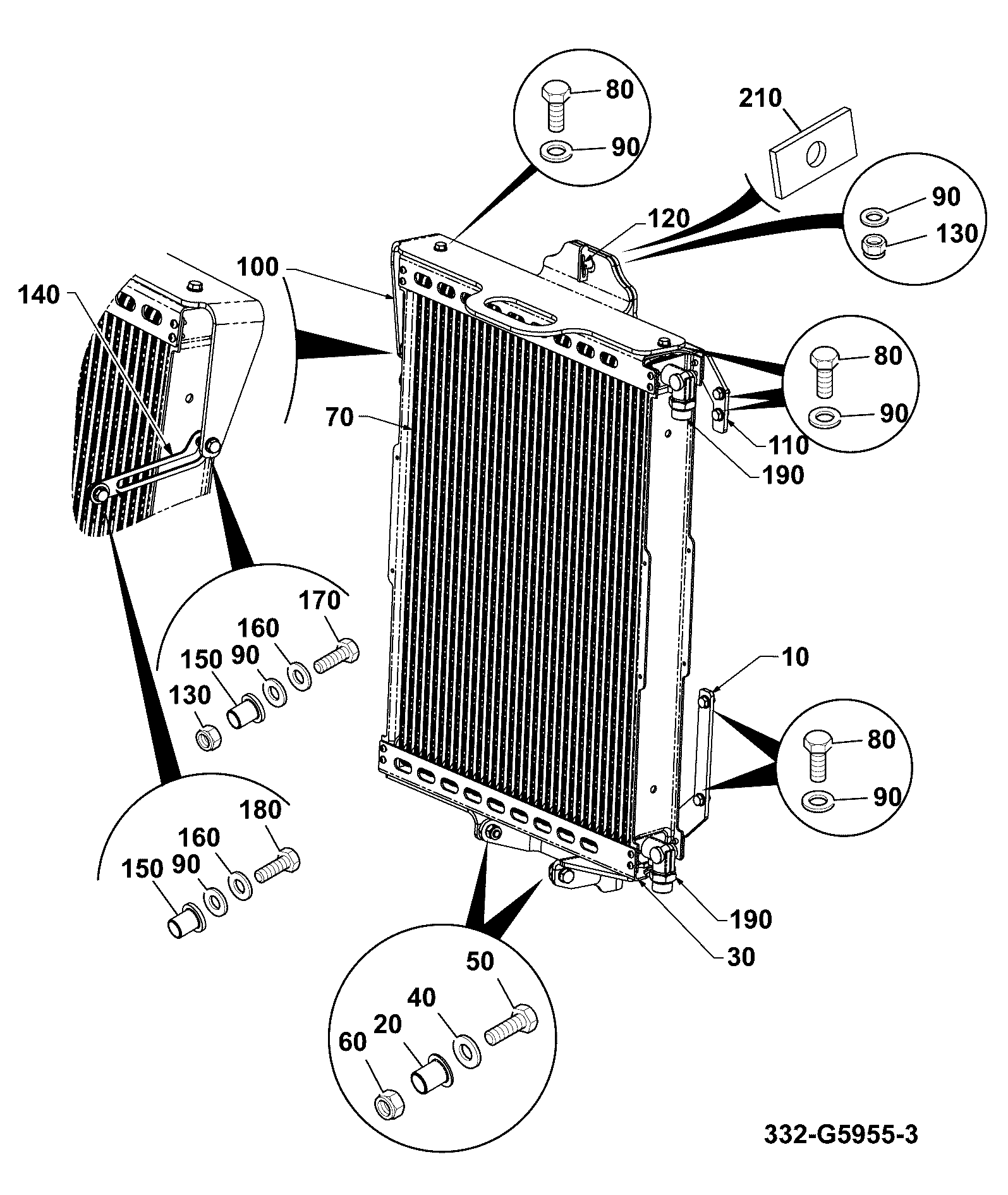

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 20 | WA SEAL PLATE T3 332/E8560 | 1 | $850.89 | |||
| 40 | INDUCTION MOULDING SEAL 332/E7850 | 1 | $17.15 | |||
| 50 | BOLT M8X25 NYLON 1318/0307Z | 1 | $26.40 | |||
| 60 | FOAM SEALING STRIP 345mm Long 332/C2978 | 1 | $8.94 | |||
| 70 | SEAL - POD BONNET 332/C2608 | 1 | $251.55 | |||
| 80 | TIE MOUNT.CRADLE MNT. 826/01274 | 1 | $0.92 | |||
| 90 | RADIATOR 55KW 332/C5000 402/L5575 | 1 | $1,352.32 | |||
| 100 | CHARGE AIR COOLER 332/C6000 | 1 | $1,894.64 | |||
| 110 | CABLE TIE 150mm 826/01162 | 1 | $4.17 | |||
| 120 | SCREW POST & RATCHET 826/11076 | 1 | $21.22 | |||
| 130 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 140 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 150 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 160 | GROMMET BLIND 25.4 DIA x 2 THK 2410/1011 | 1 | $21.74 | |||
| 170 | GROMMET - CAC PORT 332/C9024 | 1 | $7.04 | |||
| 180 | RAD SEAL 332/C9765 | 1 | $17.67 | |||
| 190 | RAD SEAL 332/C9753 | 1 | $34.52 | |||
| 200 | SET SCREW M8x16 NYLON 1318/0303Z | 1 | $0.55 | |||
| 210 | BLIND OVAL GROMMET 332/C3171 | 1 | $4.45 | |||
| 220 | GROMMET 2410/0112 | 1 | $6.97 | |||
| 230 | GROMMET 2410/0111 | 1 | $7.31 | |||
| 240 | NUT VIBRATION PROOF 826/01277 | 1 | $3.89 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-W48-2-1-400744 W48-2-1 HEADER TANK
View Diagram -
DIAG-W48-4-1-400744 W48-4-1 HYDRAULIC OIL COOLER
View Diagram -
DIAG-W48-1-10-400744 W48-1-10 COOLING SYSTEM ASSEMBLY REVERSING FAN
View Diagram
