Scroll to zoom Click a part # to view details

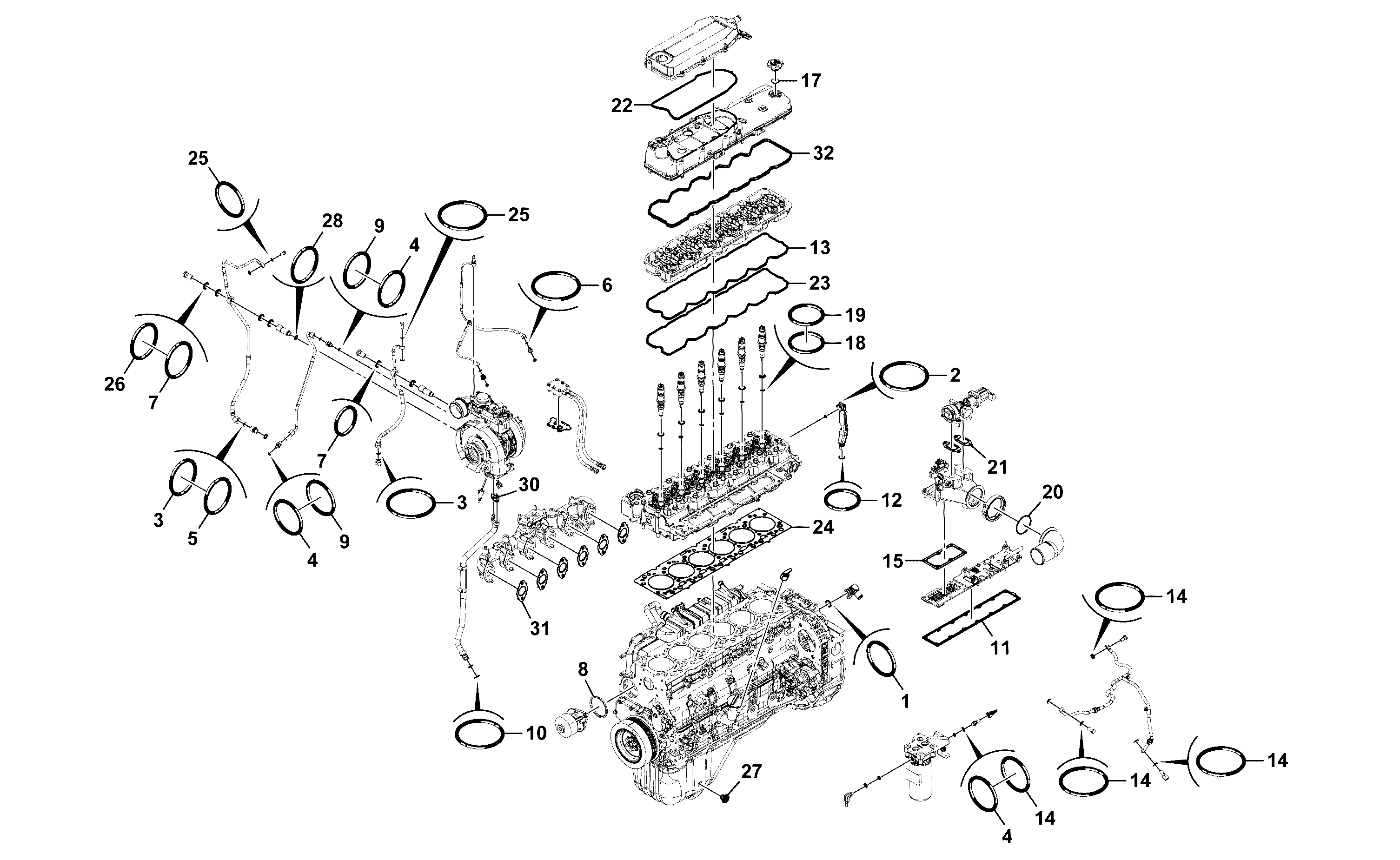

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Engine gasket set lower 400/02787 | 1 | $1,252.64 | |||
| 2 | O RING 02/910555 | 1 | $9.01 | |||
| 3 | Gasket oil cooler 02/912317 | 1 | $50.63 | |||
| 4 | O RING 02/912279 | 1 | $4.69 | |||
| 5 | GASKET 02/912324 | 1 | $31.03 | |||
| 6 | Gasket 332/H8471 | 1 | $78.32 | |||
| 7 | Gasket 332/H8470 | 1 | $51.23 | |||
| 8 | WASHER-SEAL 02/910127 | 1 | $14.38 | |||
| 9 | O RING 02/912126 400/A1894 | 1 | $30.56 | |||
| 10 | SEAL RECTANGULAR R 02/910886 | 1 | $18.47 | |||
| 11 | Washer Sealing 02/910122 334/C1825 | 1 | $11.09 | |||
| 13 | Kit seal rear oil 02/912561 333/C9388 | 1 | $83.58 | |||
| 14 | GASKET 02/910910 | 1 | $16.58 | |||
| 15 | Gasket oil suction t 02/911804 | 1 | $7.18 | |||
| 16 | SEAL 02/911615 | 1 | $30.90 | |||
| 17 | Gasket oil pan 02/911807 | 1 | $152.22 | |||
| 18 | WASHER 02/911452 02/912023 | 1 | $12.37 | |||
| 19 | Kit-gasket cooler 02/912363 02/912417 | 1 | $81.47 | |||
| 20 | Oil seal 02/911783 400/02185 | 1 | $108.25 | |||
| 21 | GASKET 02/912285 | 1 | $150.17 | |||
| 22 | Gasket oil suction 02/912326 | 1 | $44.78 | |||
| 23 | Gasket 02/912323 332/D5649 | 1 | $267.40 | |||
| 24 | Kit seal 02/912635 | 1 | $486.19 | |||
| 26 | Seal, Rectangular Ring 400/02362 | 1 | $13.52 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-V910-1-1-404876 V910-1-1 GASKET SET TOP UPPER ENGINE GASKET SET
View Diagram -
DIAG-V950-1-1-404876 V950-1-1 COOLANT COMPRESSOR COOLANT PLUMBING
View Diagram -
DIAG-X100-1-1-404876 X100-1-1 BUILD DETAILS BASIC BUILD HT
View Diagram
