| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

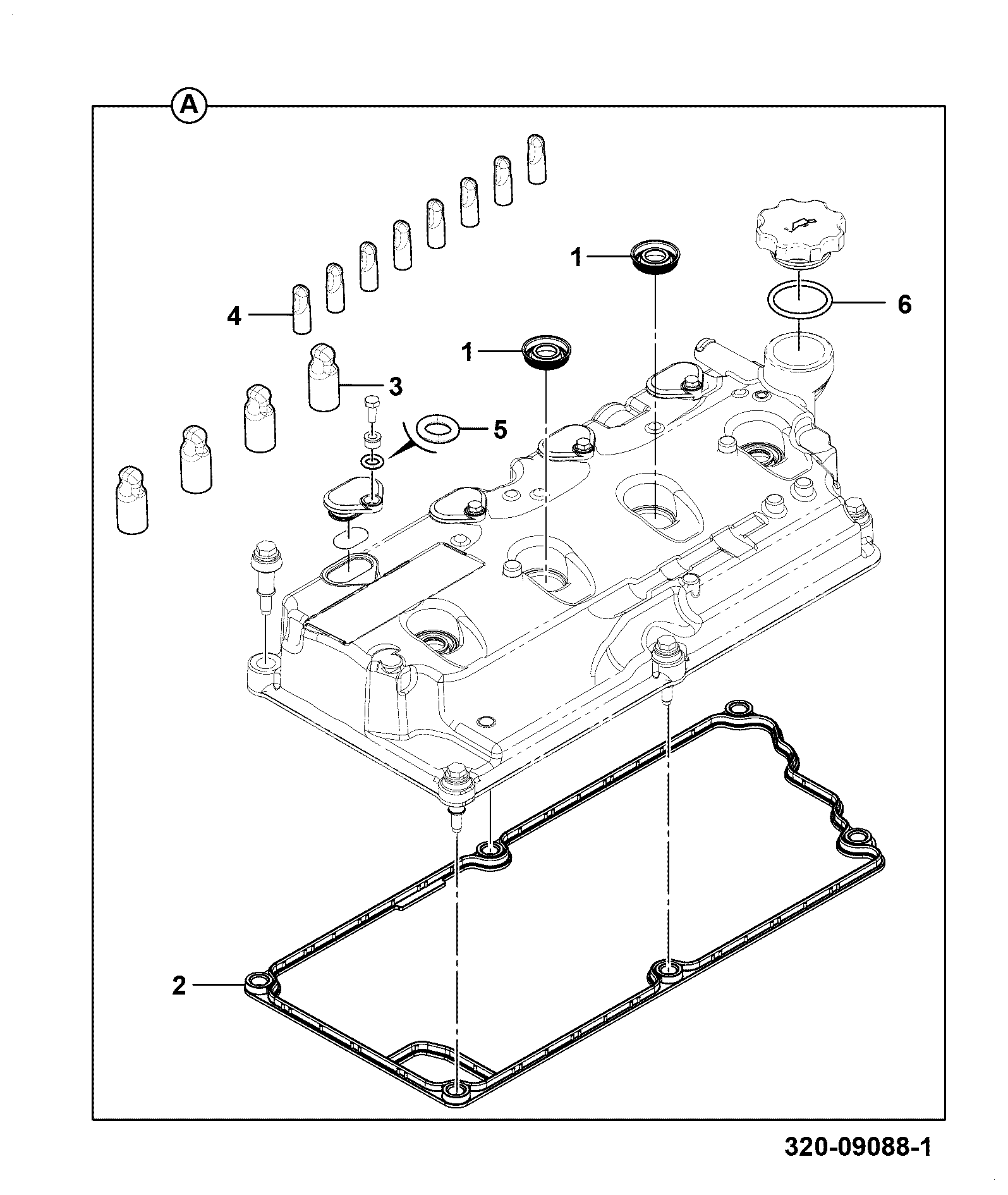

| 1 | ROCKER COVER GASKET KIT 320/09088 | 1 | $282.14 | |||
| 2 | TOP GASKET KIT (TIER4 444 320/09104 | 1 | $640.11 | |||
| 2 | TOP GASKET KIT (TIER4 448 320/09105 | 1 | $452.33 | |||
| 3 | EGR GASKET KIT 320/09186 | 1 | $193.53 | |||
| 6 | EGR COOLING GASKET KIT 320/09187 | 1 | $148.14 | |||
| 7 | LAMINAR SEAL RING KIT 320/09188 | 1 | $107.13 | |||
| 8 | BOTTOM GASKET KIT (TIER 4 320/09128 | 1 | $685.04 | |||
| 9 | CRANKSHAFT ASSY KIT T4 44 320/09089 | 1 | $2,540.42 | |||
| 9 | CRANKSHAFT ASSY KIT T4 44 320/09090 | 1 | $51.85 | |||
| 10 | PISTON KIT - TCA (T4 448) 320/09092 | 1 | $407.80 | |||
| 10 | PISTON KIT TCA (T4 444) 320/09091 | 1 | $386.66 | |||
| 11 | PISTON KIT TCA + 0.5 (T4 320/09096 | 1 | $807.35 | |||
| 11 | PISTON KIT TCA +0.5 (T4 4 320/09095 | 1 | $685.22 | |||
| 12 | PISTON KIT TCA +1.0 (T4 4 320/09102 | 1 | $599.60 | |||
| 13 | PISTON RING KIT STD- 444 320/09093 | 1 | $115.91 | |||
| 13 | PISTON RING KIT.STD (T4 4 320/09094 | 1 | $136.78 | |||
| 14 | PISTON RING KIT +0.5 (T4 320/09097 | 1 | $159.59 | |||
| 14 | PISTON RING KIT +0.5 (T4 320/09098 | 1 | $223.57 | |||
| 15 | PISTON RING KIT +1.0 (T4 320/09103 | 1 | $133.72 | |||
| 16 | CYLINDER HEAD KIT TIER 4(1221) 320/09118 | 1 | $2,493.02 | |||
| 18 | KIT, SENSORS - T4 (covers T4F & T4i) 320/09722 320/A9749 | 1 | $1,197.69 | |||
| 19 | MAIN BRG KIT STD 320/09253 320/09335 | 1 | $127.84 | |||
| 20 | MAIN BRG KIT -0.25 320/09336 | 1 | $135.41 | |||
| 21 | MAIN BRG KIT -0.5 320/09337 | 1 | $246.73 | |||
| 22 | BEARING-BIG-END-MAS20(K100539H) 320/03270 | 1 | $18.17 | |||
| 23 | BIG END BEARING KIT -0.25 320/09339 | 1 | $115.74 | |||
| 24 | BIG END BEARING KIT -0.50 320/09340 | 1 | $193.13 | |||
| 25 | THRUST WASHER KIT.STD 320/09208 | 1 | $36.38 | |||
| 26 | THRUST WASHER KIT +0.2 O/ 320/09209 | 1 | $166.04 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-V910-1-1-403048 V910-1-1 GASKET SET TOP ROCKER COVER
View Diagram -
DIAG-V910-2-1-403048 V910-2-1 GASKET SET TOP COMPLETE T4 444
View Diagram -
DIAG-V910-2-2-403048 V910-2-2 GASKET SET TOP COMPLETE T4 448
View Diagram
