V870-5-1 HARNESS ELECTRONIC CONTROL MODULE WIRING HARNESS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Tie 02/911884	1	AVAILABLE TO ORDER	$7.81	Quantity
2	Screw 02/911364	1	AVAILABLE TO ORDER	$6.94	Quantity
3	Screw 02/912266	1	AVAILABLE TO ORDER	$22.07	Quantity
4	SCREW 02/911042	1	AVAILABLE TO ORDER	$14.31	Quantity
5	Electrical Connector Boot 400/06399	1	AVAILABLE TO ORDER	$22.60	Quantity
6	Harness 400/06401	1	AVAILABLE TO ORDER	$2,201.69	Quantity
7	CLIP 336/C3463	1	AVAILABLE TO ORDER	$9.07	Quantity

Showing 1 to 7 of 7 parts

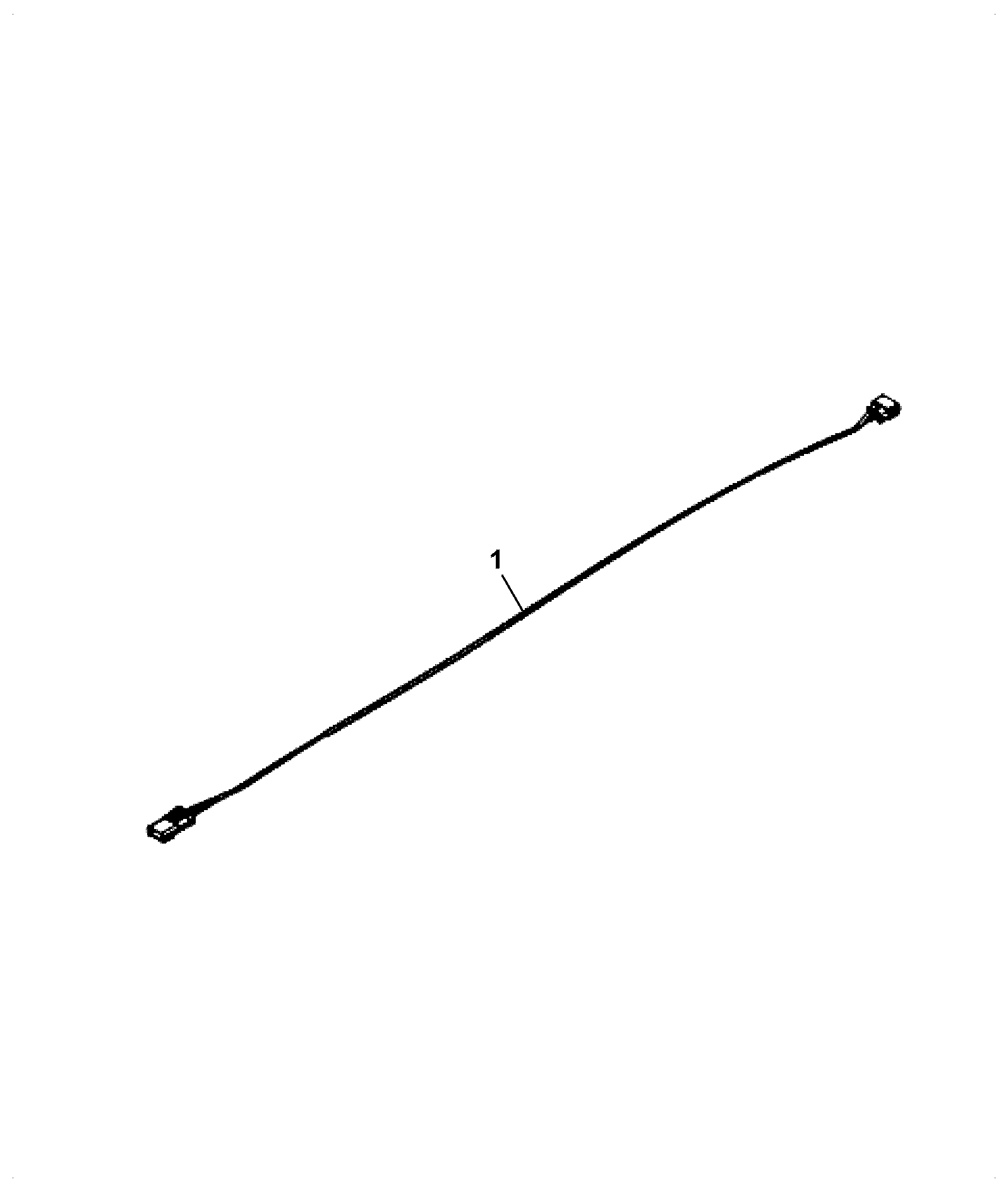

DIAG-V870-1-1-404975 V870-1-1 HARNESS HARNESS ENGINE WIRING
View Diagram

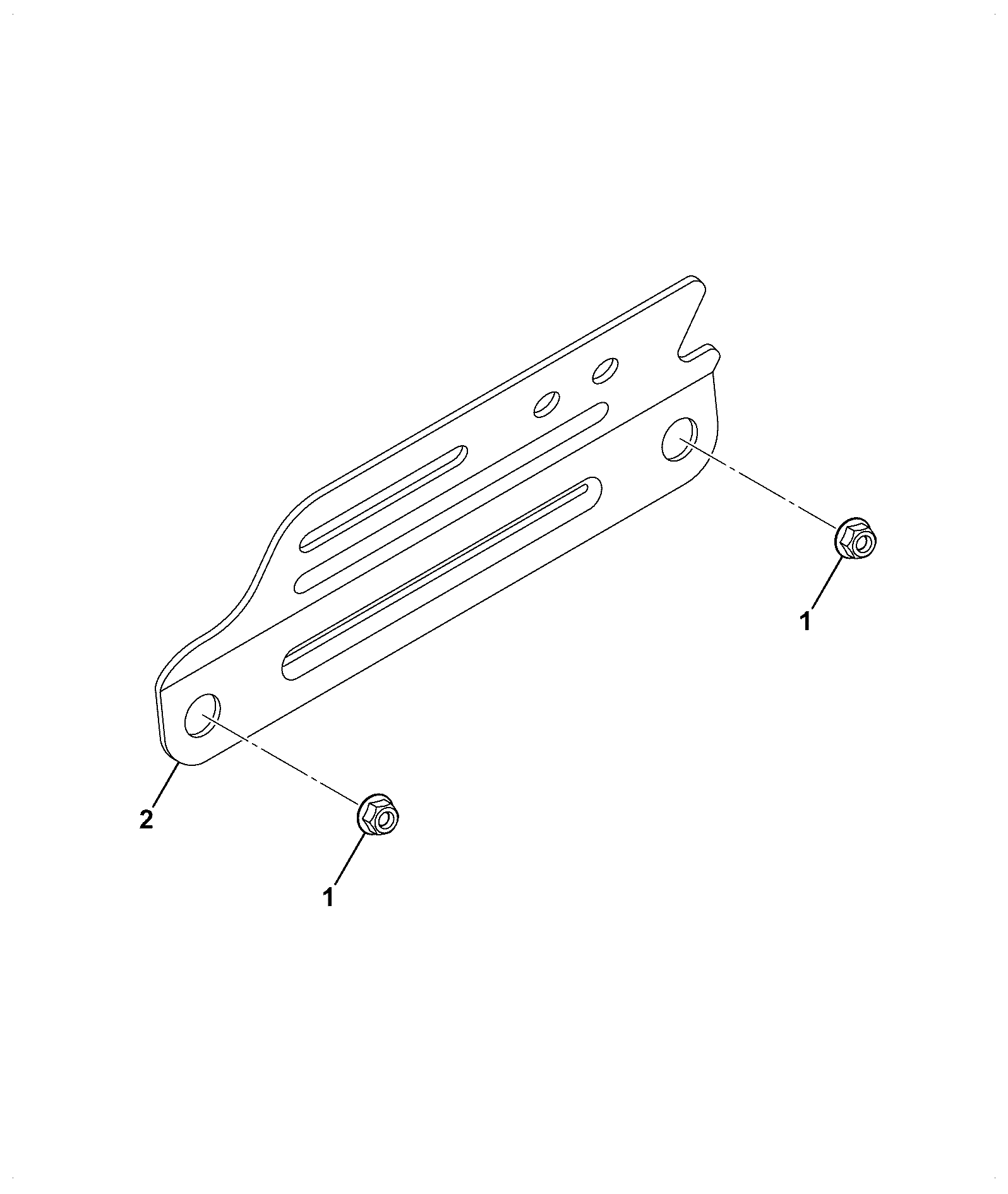

DIAG-V870-10-1-404975 V870-10-1 HARNESS ENG MDL HARNESS MOUNTING
View Diagram

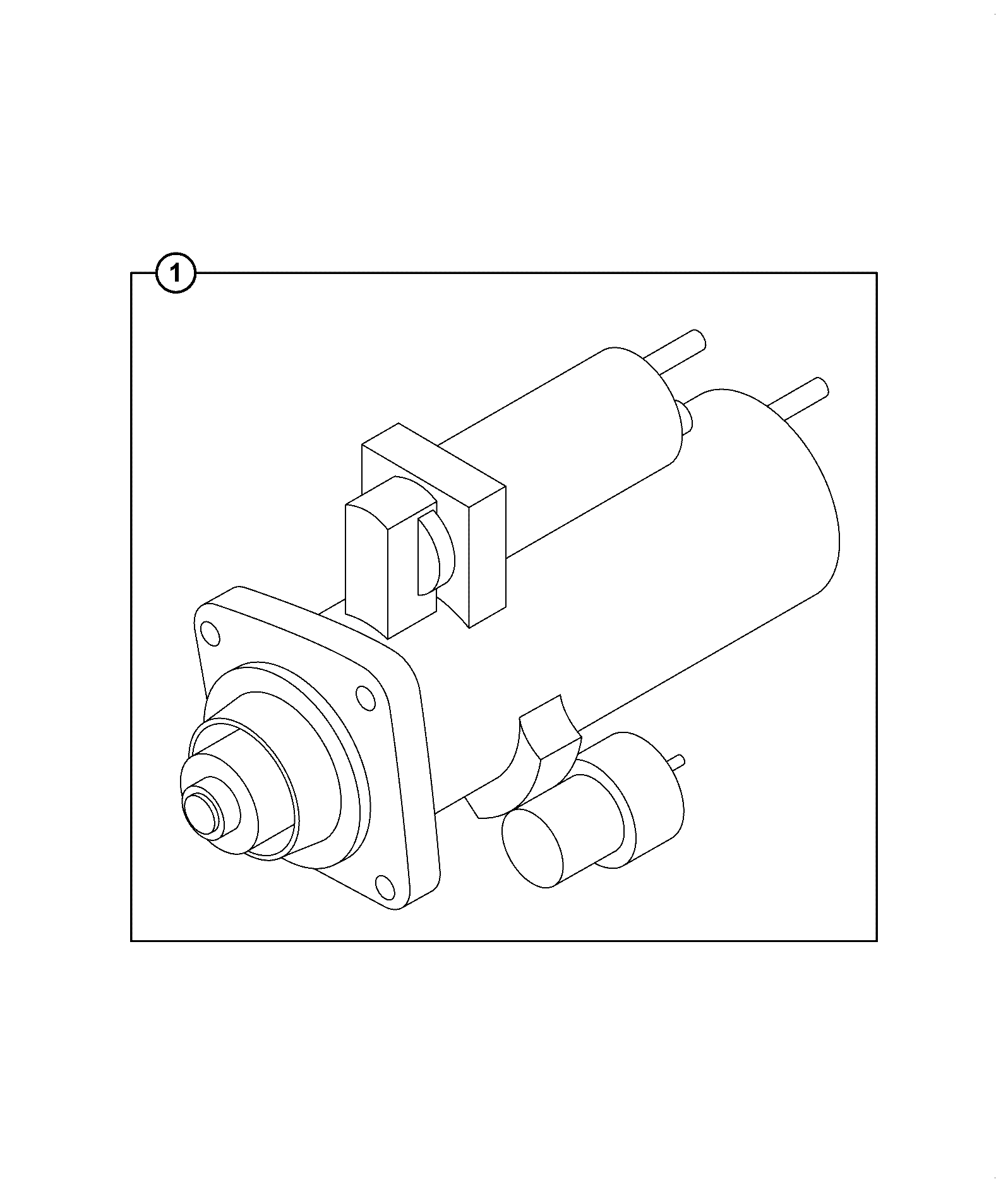

DIAG-V850-5-1-404975 V850-5-1 STARTER MOTOR STARTER MOTOR
View Diagram

Previous Assembly DIAG-V870-1-1-404975 V870-1-1 HARNESS HARNESS ENGINE WIRING Next Assembly DIAG-V870-10-1-404975 V870-10-1 HARNESS ENG MDL HARNESS MOUNTING
