V840-10-1 ALTERNATOR MOUNTING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	SCREW 02/911119	1	AVAILABLE TO ORDER	$14.52	Quantity
2	BOLT 02/911007 02/911007A	1	1 IN STOCK	$4.26	Quantity
3	BOLT FLANGE HEAD 826/10759	1	AVAILABLE TO ORDER	$67.69	Quantity
4	NUT, FLANGE HEAD 02/911226	1	5 IN STOCK	$2.70	Quantity
5	Pulley alternator 02/910974	1	AVAILABLE TO ORDER	$316.96	Quantity
6	Lever alternator s 02/912269	1	AVAILABLE TO ORDER	$83.67	Quantity

Showing 1 to 6 of 6 parts

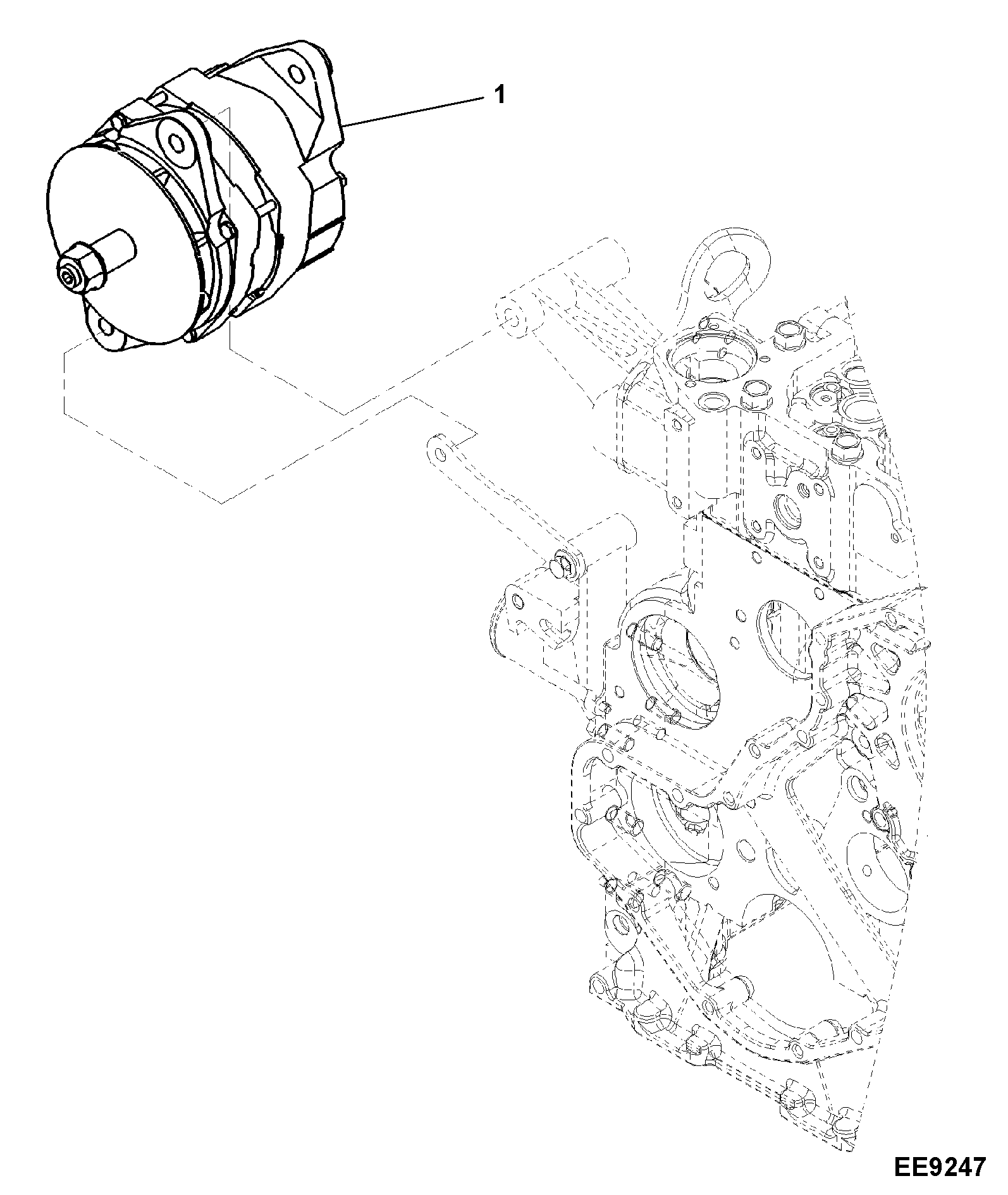

DIAG-V840-5-1-404702 V840-5-1 ALTERNATOR ASSEMBLY 24V
