V840-1-1 ALTERNATOR MOUNTING REAR GEAR TRAIN ACCESSORY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PLUG 02/910066	1	AVAILABLE TO ORDER	$27.66	Quantity
2	Plug 02/912442	1	AVAILABLE TO ORDER	$23.93	Quantity
3	GASKET 02/912285	1	1 IN STOCK	$150.17	Quantity
4	Adapter 332/H8463	1	AVAILABLE TO ORDER	$1,349.86	Quantity
5	Gear accessory dri 02/912490	1	AVAILABLE TO ORDER	$272.92	Quantity
6	Bearing roller 02/912488	1	AVAILABLE TO ORDER	$453.44	Quantity
7	Shaft 02/912489	1	AVAILABLE TO ORDER	$299.57	Quantity

Showing 1 to 7 of 7 parts

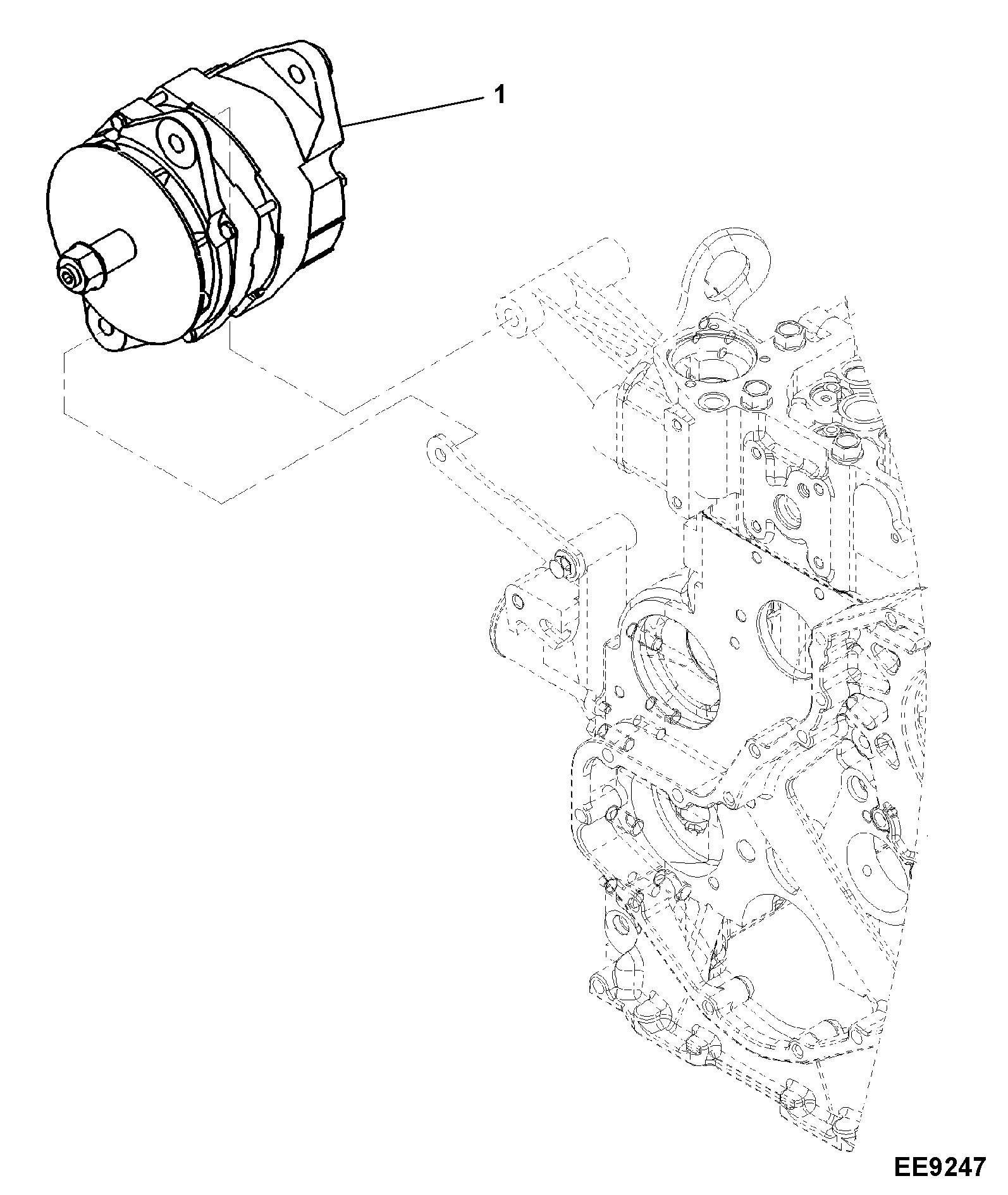

DIAG-V840-1-1-404634 V840-1-1 ALTERNATOR ASSEMBLY
