V740-5-1 COOLING FAN ASSEMBLY FAN MOUNTING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Plate clamping 02/911524	1	AVAILABLE TO ORDER	$96.95	Quantity
2	SCREW 02/911120	1	AVAILABLE TO ORDER	$19.64	Quantity

Showing 1 to 2 of 2 parts

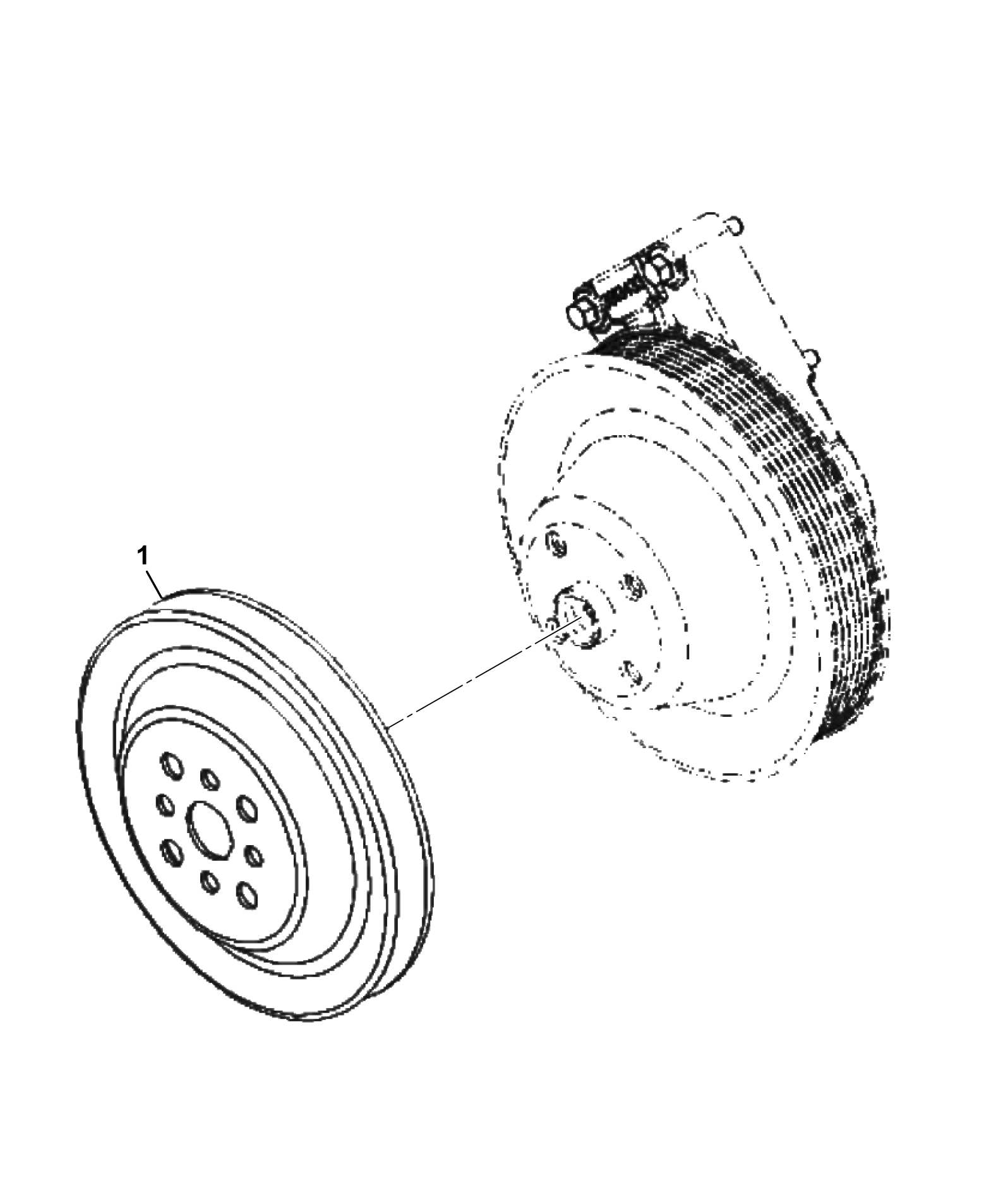

DIAG-V740-1-1-404712 V740-1-1 COOLING FAN FAN DRIVE
View Diagram

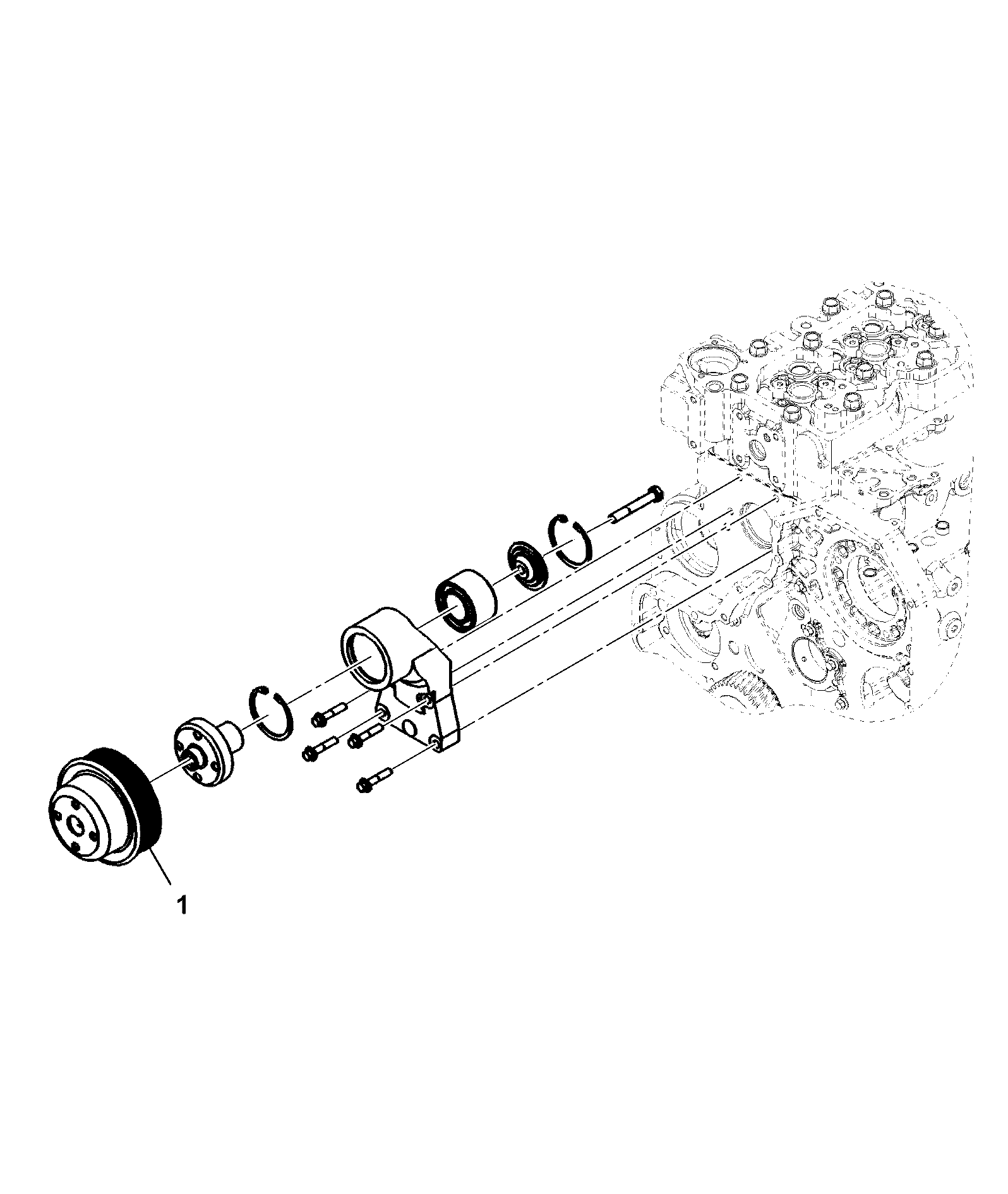

DIAG-V740-10-1-404712 V740-10-1 COOLING FAN ASSEMBLY FAN DRIVE
View Diagram
DIAG-V720-15-1-404712 V720-15-1 DRIVE BELT AND PULLEYS ASSEMBLY ACCESSORY DRIVE PULLEY
View Diagram
