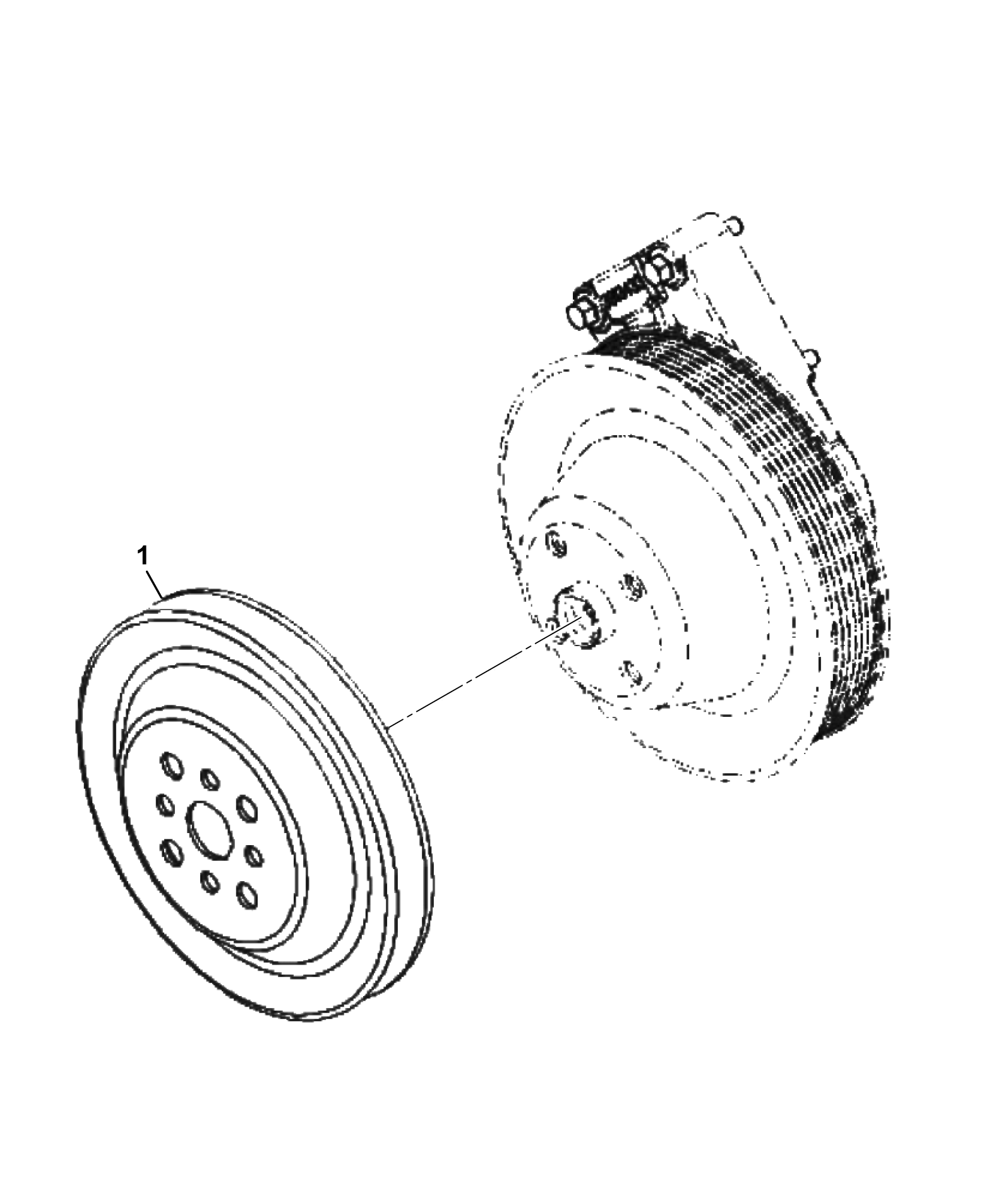

V740-5-1 COOLING FAN MOUNTING FAN Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Plate clamping 02/911524	1	AVAILABLE TO ORDER	$96.95	Quantity
2	SCREW 02/911120	1	AVAILABLE TO ORDER	$19.64	Quantity

Showing 1 to 2 of 2 parts
