V680-5-1 FUEL SYSTEM COLD START SYSTEM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	THERMOSTART 400/04816 02/634830	1	AVAILABLE TO ORDER	$152.44	Quantity
3	Nut 02/630576	1	AVAILABLE TO ORDER	$11.51	Quantity
4	Connector 336/F3389	1	AVAILABLE TO ORDER	$14.62	Quantity
6	Lead 02/630761	1	AVAILABLE TO ORDER	$12.28	Quantity

Showing 1 to 4 of 4 parts

DIAG-V640-5-1-397495 V640-5-1 LP FUEL PIPES FUEL LEAK OFF PIPES
View Diagram
DIAG-V700-1-1-397495 V700-1-1 FRONT END DRIVE FRONT END DRIVE OUTPUT
View Diagram

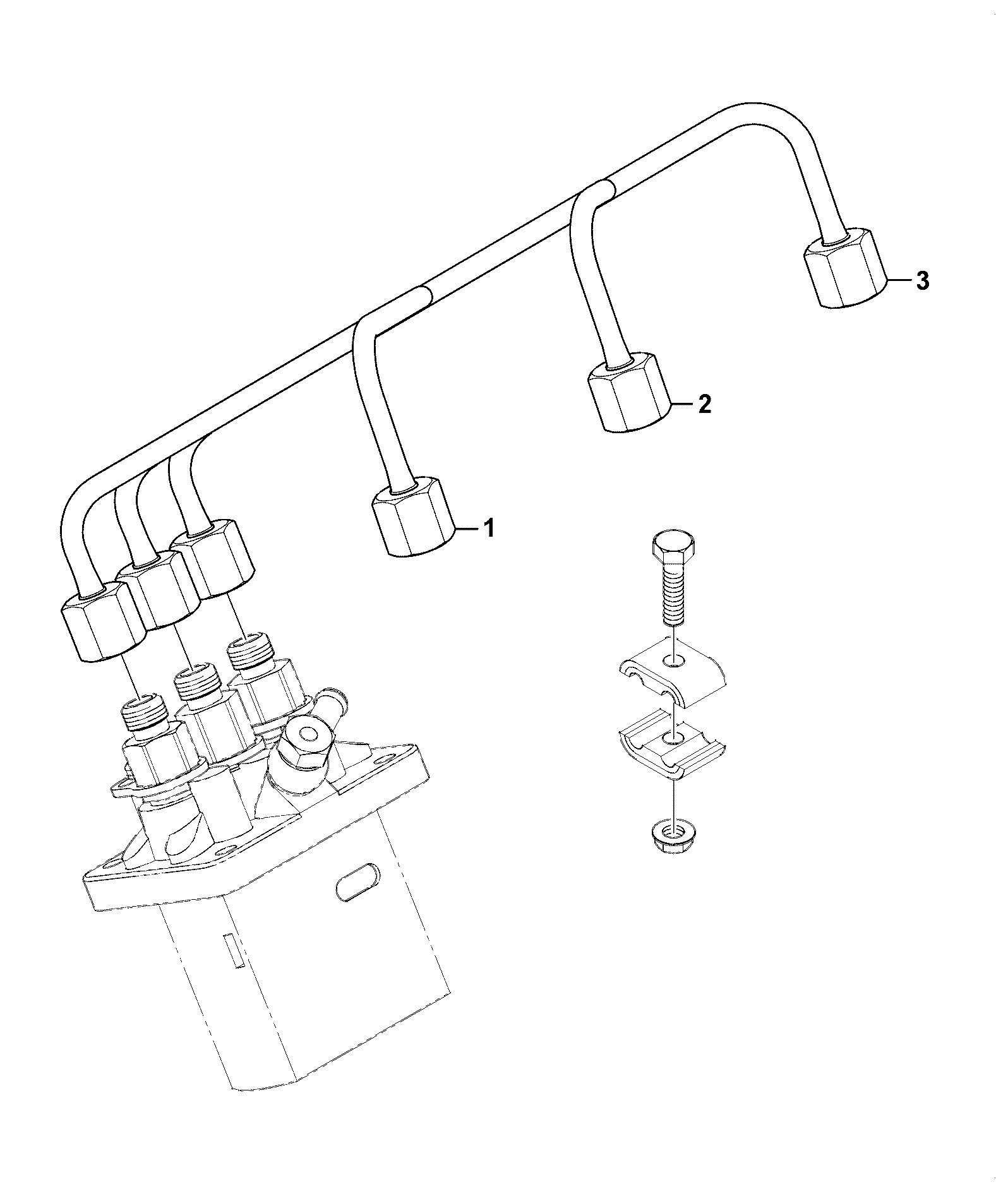

DIAG-V630-5-1-397495 V630-5-1 HP FUEL PIPES HP FUEL PIPES
