Scroll to zoom Click a part # to view details

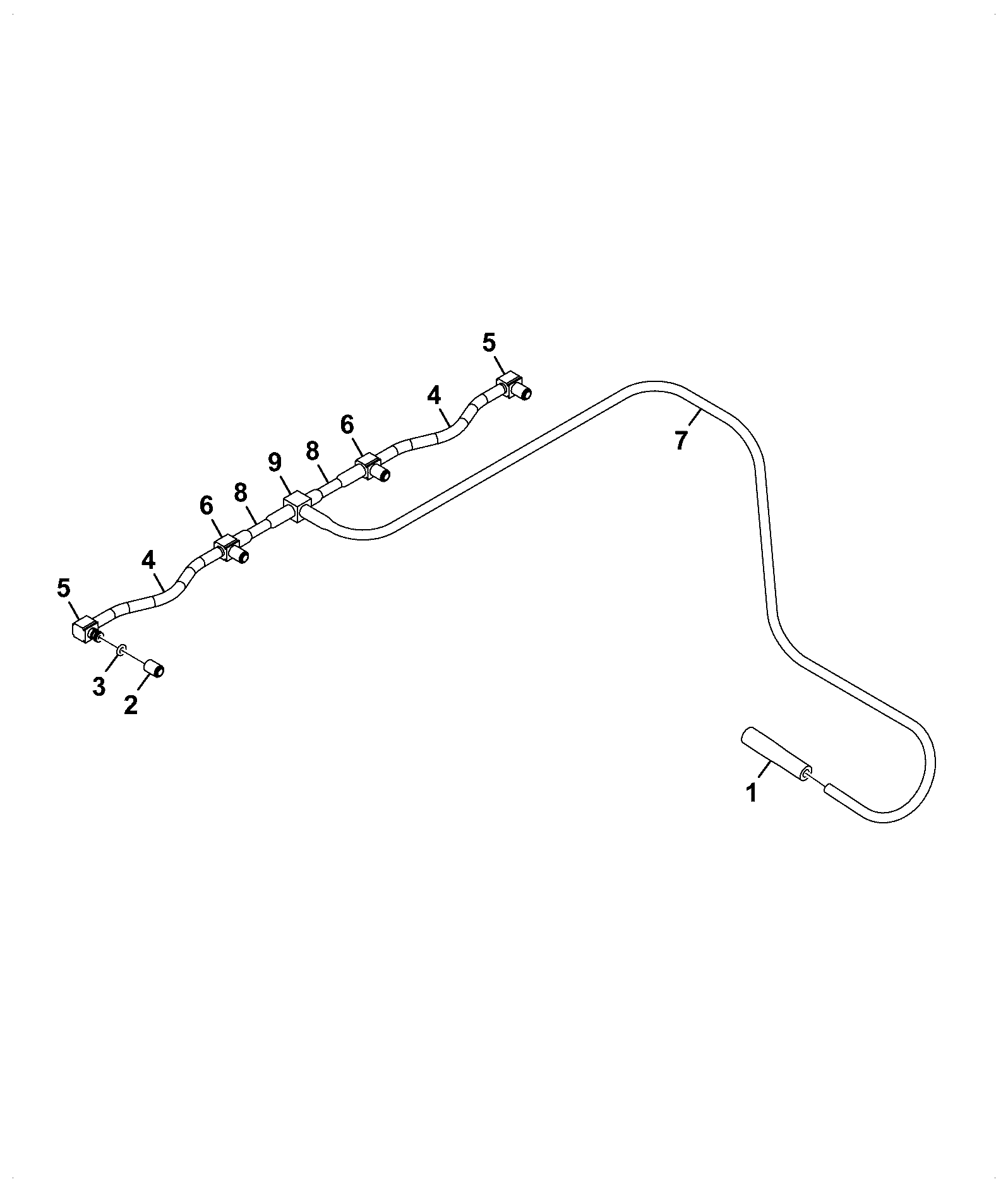

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE CLIP 10mm(KANBAN) (BR3) 320/07121 | 1 | $15.63 | |||
| 2 | SNAP RING (BR3) 320/07033 320/07189 | 1 | $2.57 | |||
| 3 | BRACKET PIPE CLIP (BR3) 320/07120 | 1 | $4.14 | |||
| 4 | LP FUEL DUMP PIPE ASSY (BR3) 320/07160 | 1 | $94.94 | |||
| 5 | GA PIPE LP FUEL LEAK OFF 320/07158 320/07194 | 1 | $133.84 | |||
| 6 | CLIP.FUEL PIPE(KANBAN) (BR3) 320/07055 | 1 | $0.95 | |||
| 9 | SETSCREW M8x16(KANBAN) 1317/0303Z 1319/0303Z | 1 | $6.03 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-V640-20-1-400934 V640-20-1 FUEL SYSTEM INSTALLATION ASSEMBLIES LEAKOFF PIPE
View Diagram -
DIAG-V640-30-1-400934 V640-30-1 LP FUEL PIPES FILTER TO FIP
View Diagram -

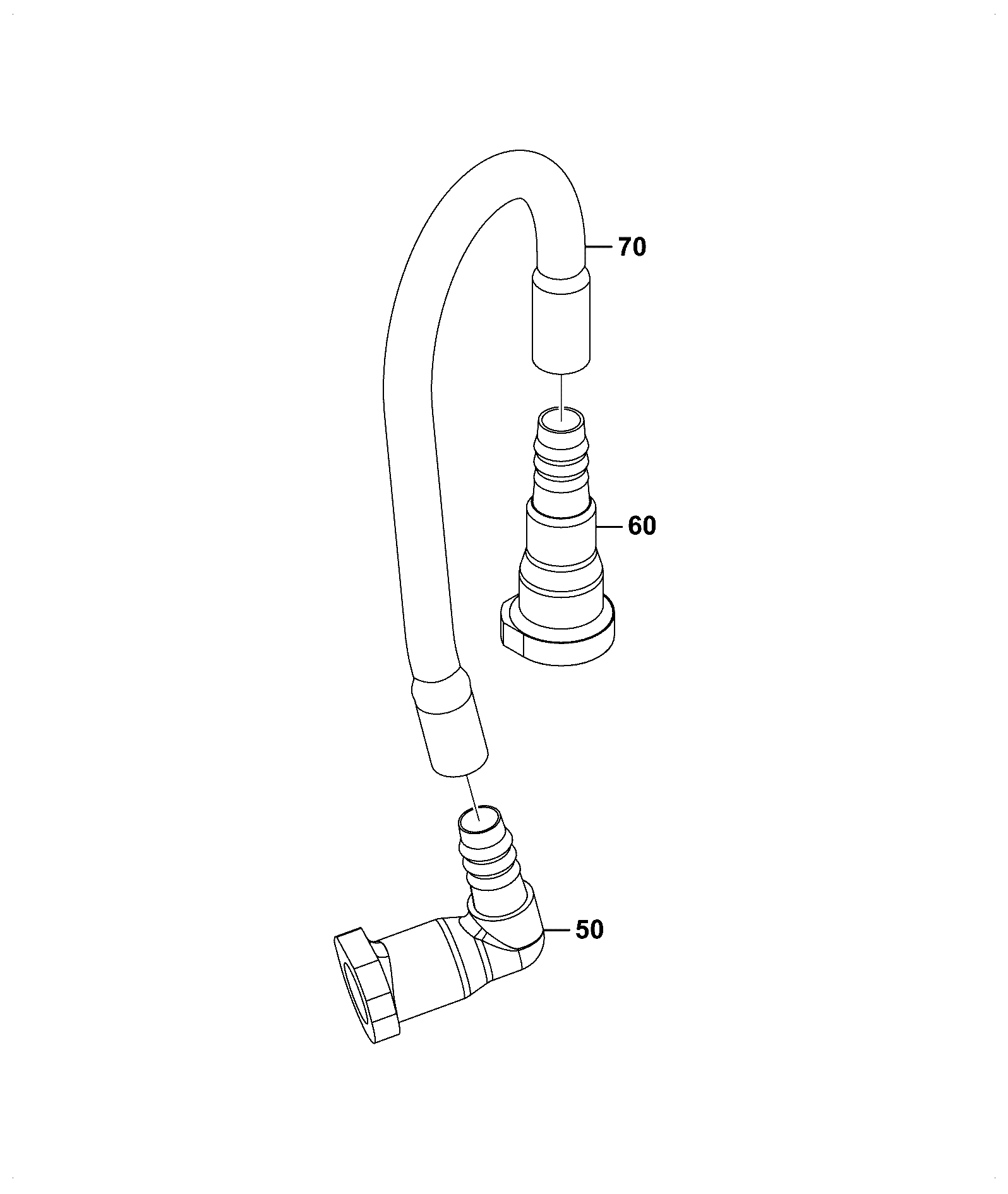

DIAG-V640-35-1-400934 V640-35-1 LP FUEL PIPES LEAK-OFF PIPEWORK
View Diagram
