V640-1-1 LP FUEL PIPES PIPELINE LOW PRESSURE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	LEAK OFF RAIL ASSEMBLY 320/07355 320/A7420	1	AVAILABLE TO ORDER	$254.54	Quantity
2	TANK LINE PIPES - T4 320/07235	1	AVAILABLE TO ORDER	$88.04	Quantity
3	PIPE CLIP 10mm(KANBAN) (BR3) 320/07121	1	AVAILABLE TO ORDER	$15.63	Quantity

Showing 1 to 3 of 3 parts

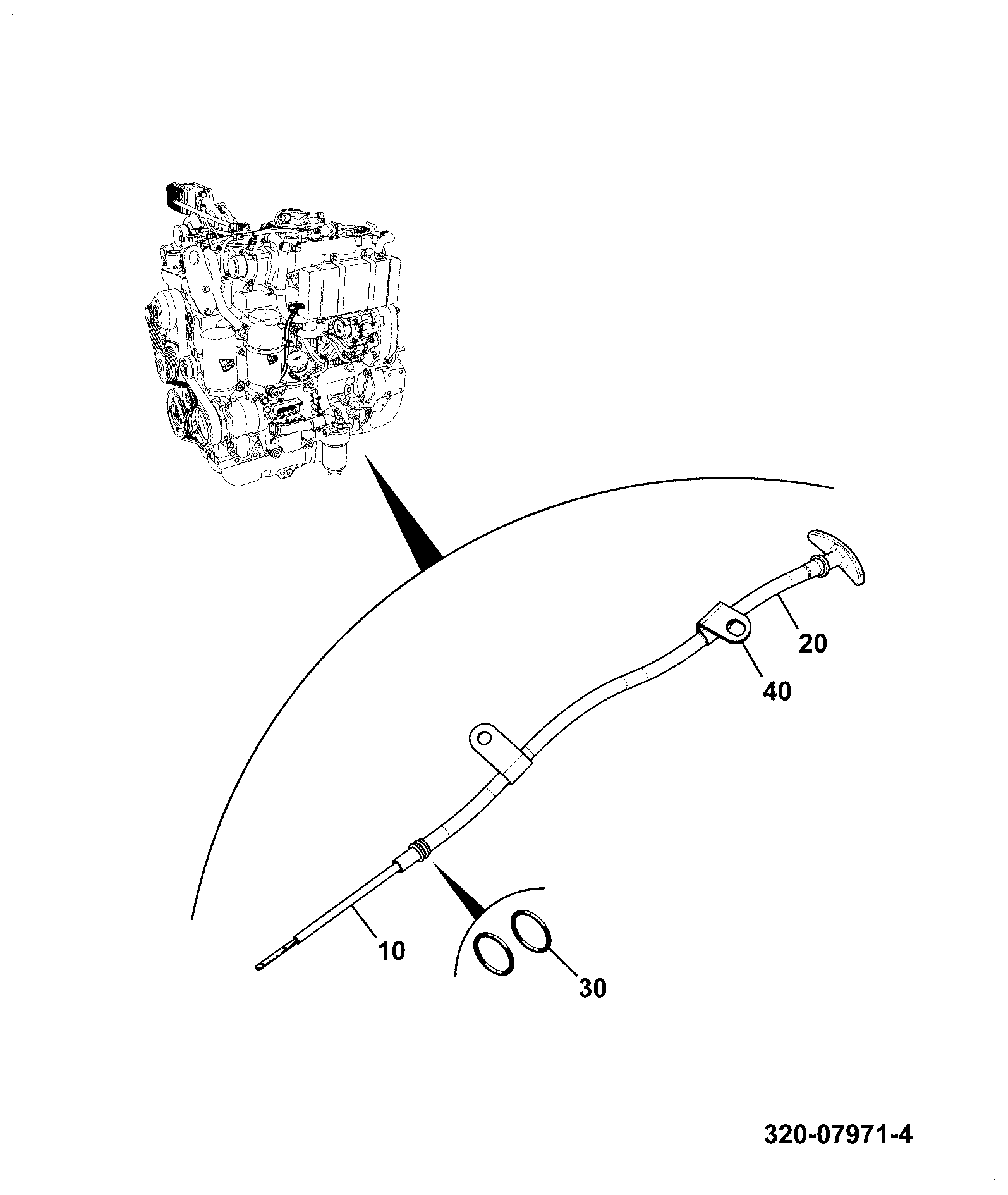

DIAG-V540-60-1-403027 V540-60-1 DIPSTICK ASSEMBLY T4
View Diagram

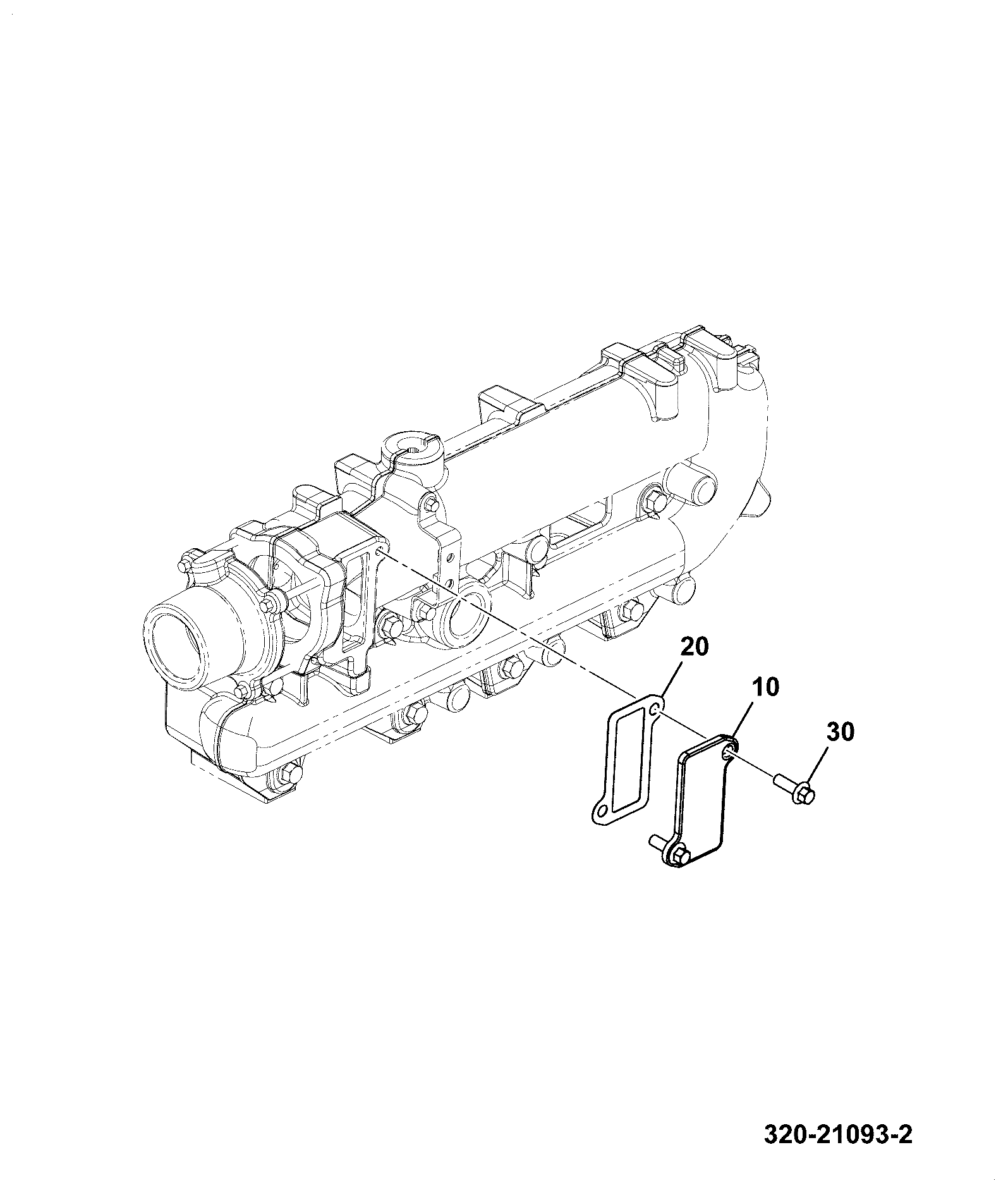

DIAG-V320-5-1-403027 V320-5-1 INTAKE HEATER BLANKING PLATE ASSEMBLY
