V640-1-1 LP FUEL PIPES Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	PIPE CLIP : 8mm 320/07359	1	AVAILABLE TO ORDER	$2.00	Quantity

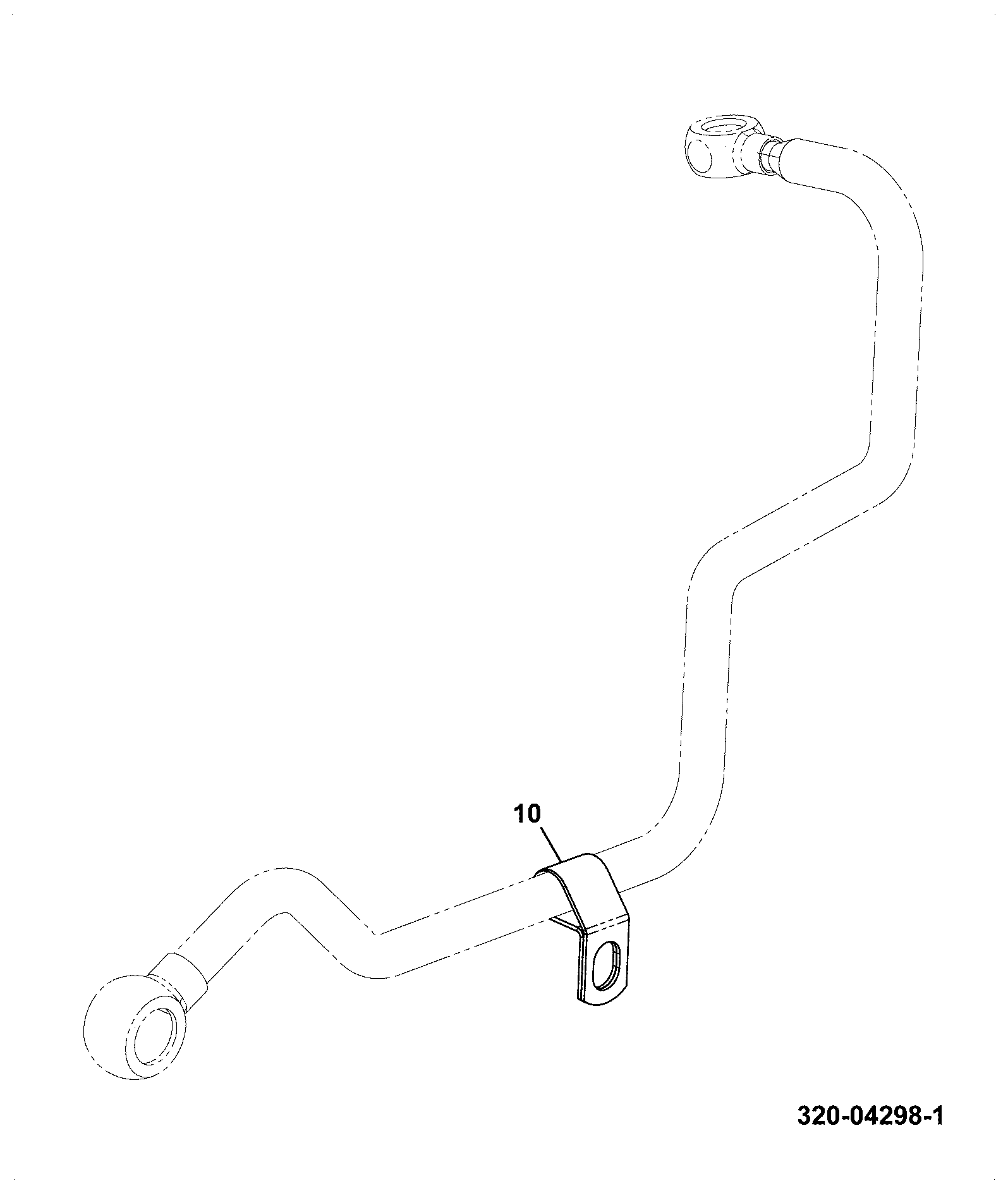

1	LEAK OFF RAIL ASSEMBLY 320/07355 320/A7420	1	AVAILABLE TO ORDER	$254.54	Quantity
2	TANK LINE PIPES - T4 320/07235	1	AVAILABLE TO ORDER	$88.04	Quantity
3	PIPE CLIP 10mm(KANBAN) (BR3) 320/07121	1	AVAILABLE TO ORDER	$15.63	Quantity

Showing 1 to 4 of 4 parts

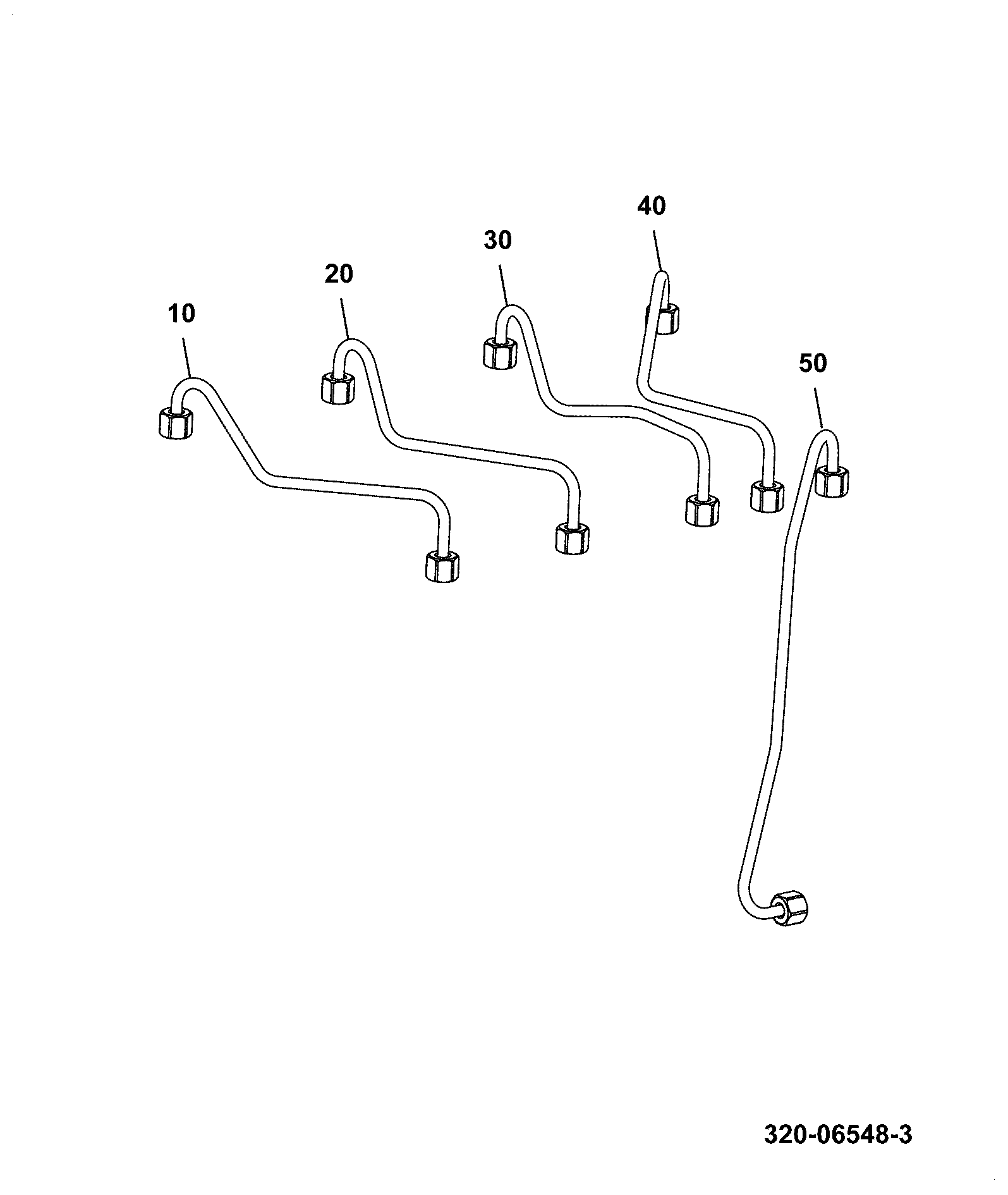

DIAG-V630-5-1-395252 V630-5-1 HP FUEL PIPES DETAILS
View Diagram

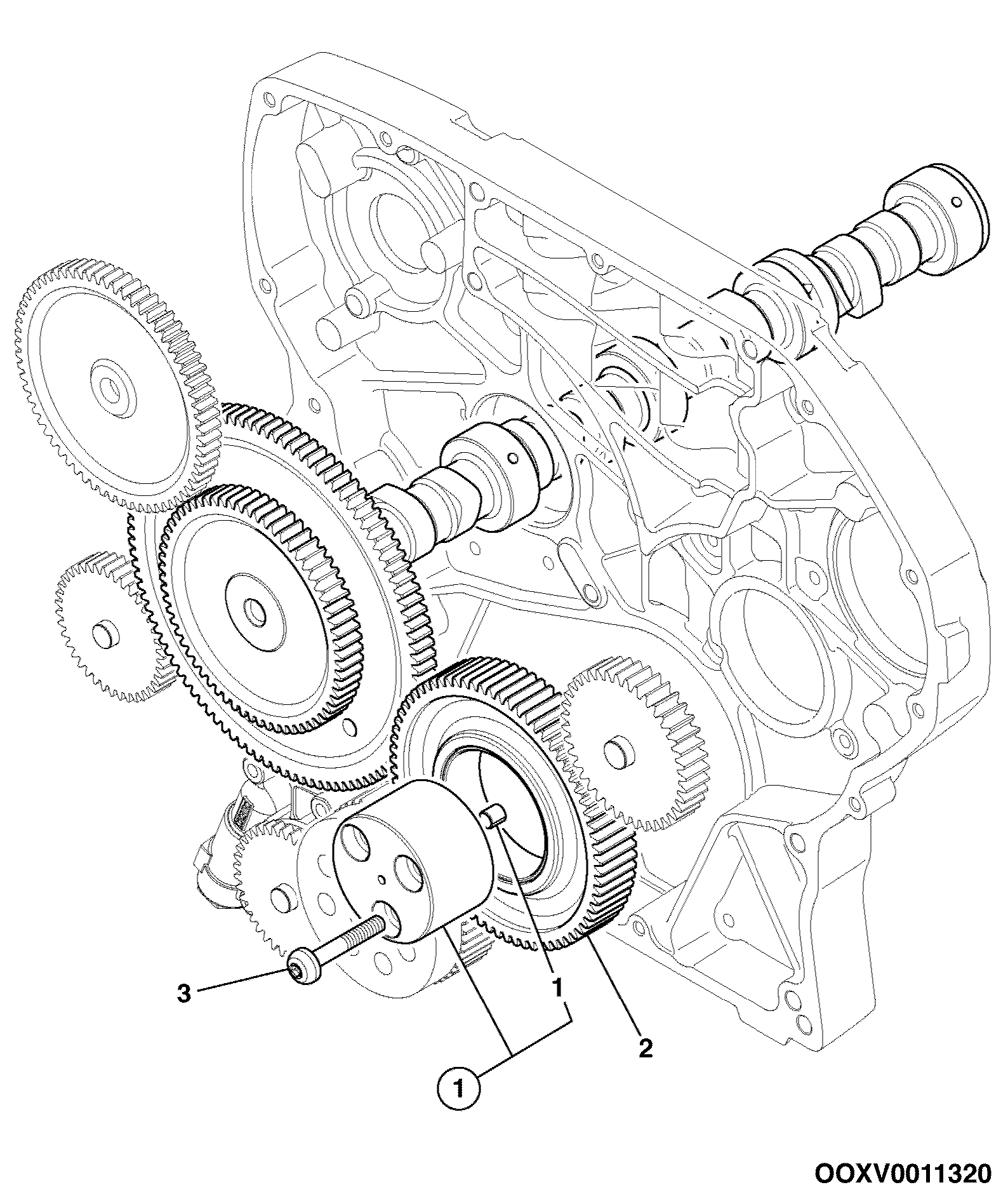

DIAG-V750-1-1-395252 V750-1-1 IDLER GEAR ASSEMBLY
View Diagram
DIAG-V820-15-1-395252 V820-15-1 TURBOCHARGER OIL FEED CLIP
View Diagram

Previous Assembly DIAG-V630-5-1-395252 V630-5-1 HP FUEL PIPES DETAILS Next Assembly DIAG-V750-1-1-395252 V750-1-1 IDLER GEAR ASSEMBLY
