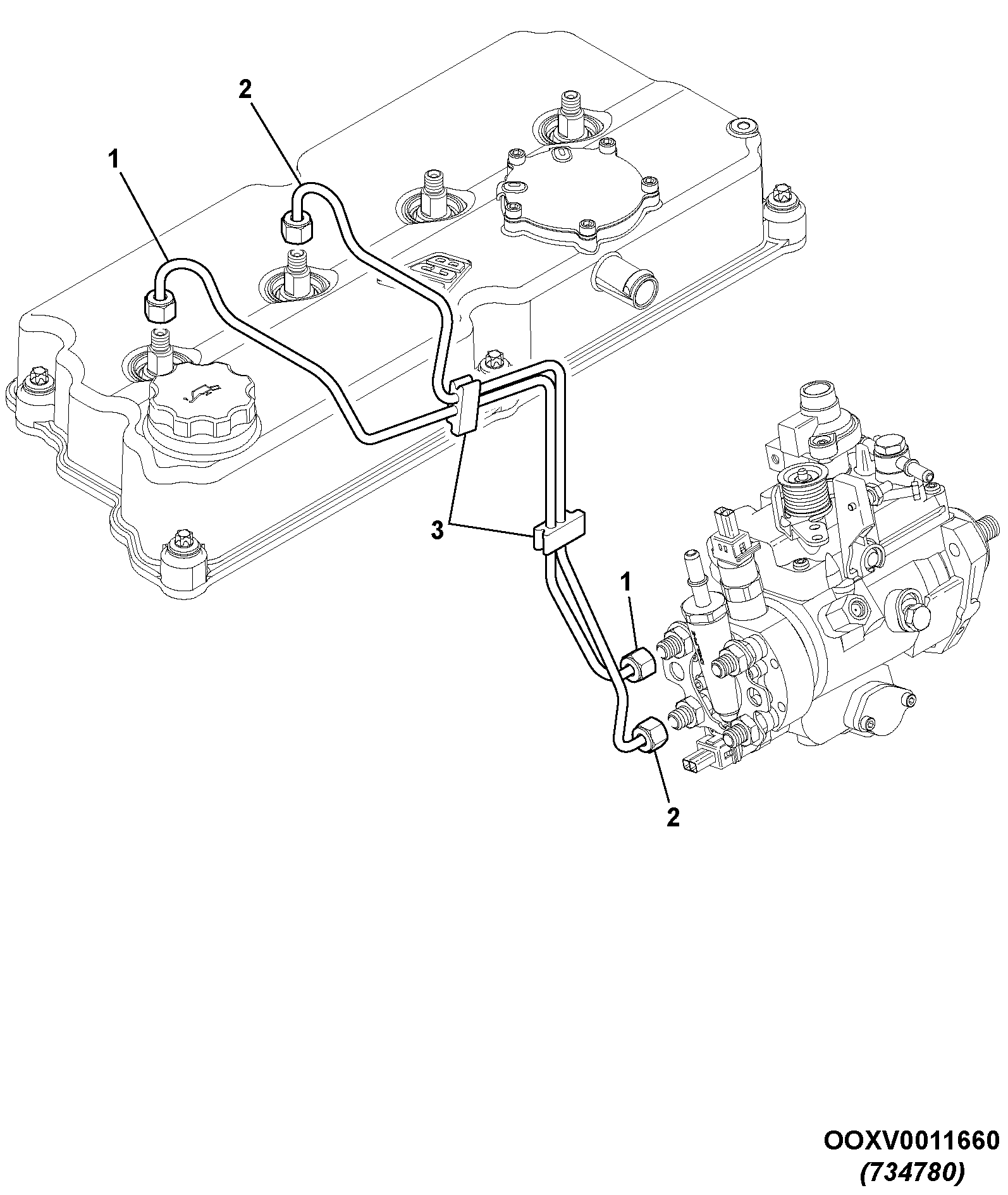

V630-15-1 HP FUEL PIPES No 1,2,3 & 4 – Scholten's Equipments Parts Store

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	PIPE.N0.3&4.HP FUEL.NA/TC 320/06554	1	AVAILABLE TO ORDER	$117.96	Quantity
1	PIPE.N0.1&2.HP FUEL.NA/TC 320/06551	1	AVAILABLE TO ORDER	$115.46	Quantity
A	HP FUEL PIPES ABI 320/06763	1	AVAILABLE TO ORDER	$197.28	Quantity

Showing 1 to 3 of 3 parts
