Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Assembly Swivel Clip | 1 | Price on request | |||
| 2 | KIT Fuel Hoses Return KDI 400/05969 400/14351 | 1 | $846.89 | |||
| 3 | Screw 333/H5244 | 1 | $35.44 | |||
| 4 | Washer copper (UOI 25) 02/960113 | 1 | $2.14 | |||
| 5 | fuel cyl 3 333/H5251 | 1 | $217.82 | |||
| 6 | fuel cyl 4 333/H5248 | 1 | $217.82 | |||
| 7 | fuel cyl 1 333/H5245 | 1 | $217.82 | |||
| 8 | fuel cyl 2 333/H5247 | 1 | $217.82 | |||
| 9 | m8x50 333/H5253 | 1 | $21.40 | |||
| 10 | Screw 02/961266 | 1 | $4.35 | |||
| 11 | rail 333/H5256 | 1 | $319.84 | |||
| 12 | Fuel Rail 333/H5260 | 1 | $2,252.05 | |||
| 13 | Nut 333/H5289 | 1 | $7.18 | |||
| 15 | Pump injection 333/H5264 | 1 | $4,263.78 | |||
| 16 | m8x28 333/H5266 | 1 | $22.17 | |||
| 17 | Injector 333/H5268 | 1 | $1,581.59 | |||
| 18 | O Ring 333/H5269 | 1 | $3.14 | |||
| 19 | Gasket 02/961653 | 1 | $4.74 | |||
| 19 | Gasket 333/H5270 | 1 | $4.74 | |||
| 19 | Gasket Injector, 1MM 400/02174 | 1 | $11.12 | |||
| 19 | Gasket Injector, 2.5MM 400/02173 | 1 | $12.16 | |||
| 19 | Injectors Gasket 335/A7526 | 1 | $14.92 | |||
| 24 | Injector Clamp 333/H5271 | 1 | $102.60 | |||
| 25 | Washer 333/H5273 | 1 | $21.70 | |||
| 26 | Screw Injector Bracket 400/03346 | 1 | $54.04 | |||
| 27 | m6x16 333/H5276 | 1 | $3.61 | |||
| 28 | pipe 334/D5852 | 1 | $16.01 | |||
| 29 | Kit injection pipe 333/H5279 | 1 | $479.40 | |||
| 30 | SCV Valve Kit 400/00220 | 1 | $1,395.73 | |||
| 31 | Clamp 335/H9741 | 1 | $6.06 | |||
| 32 | Clamp 400/H1405 335/H9740 | 1 | $7.27 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-

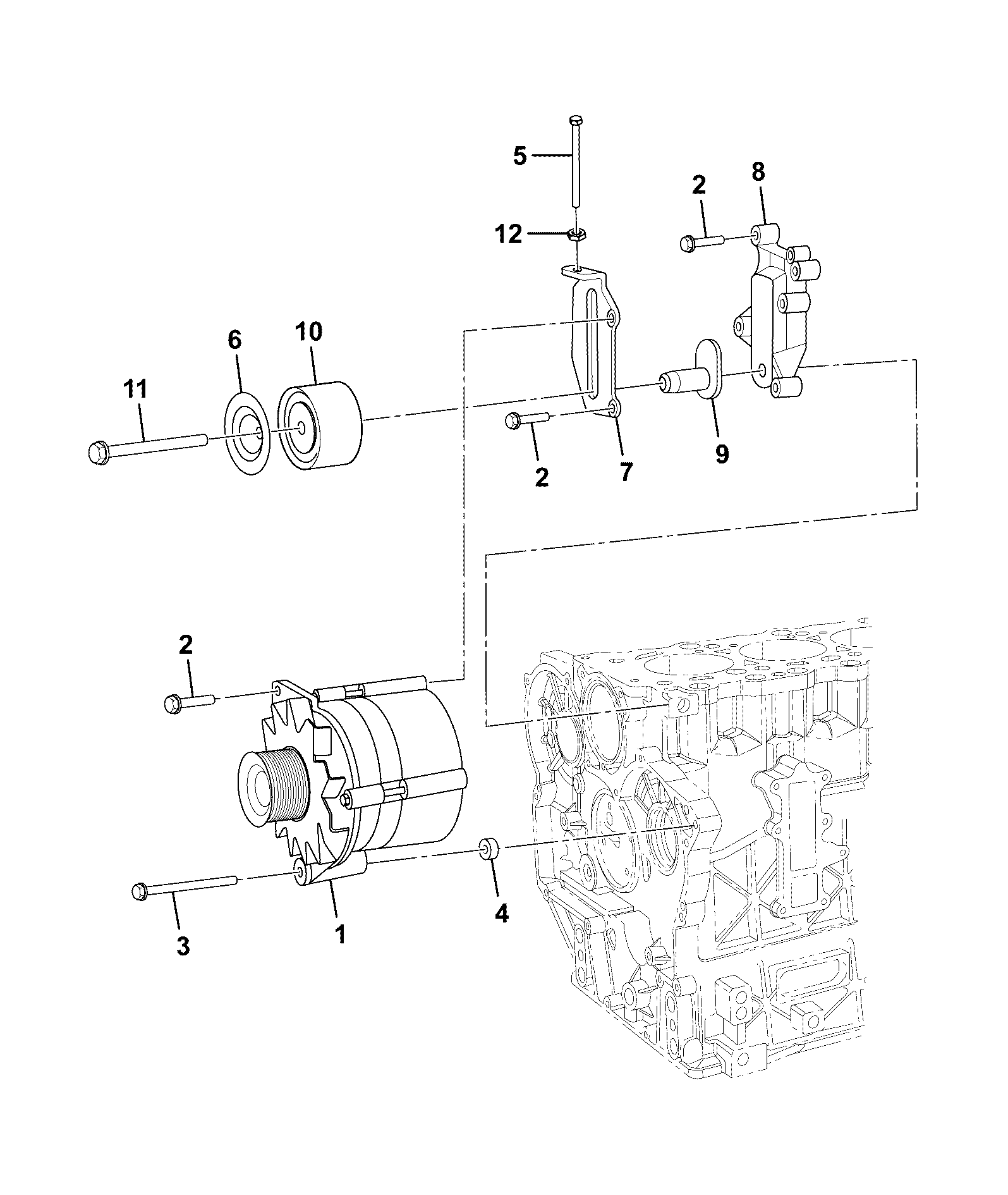

DIAG-V840-10-1-397687 V840-10-1 ALTERNATOR ALTERNATOR VOLTAGE
