| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY PIPE, CONT. TC250-96140 | 1 | $607.53 | |||
| 020 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 030 | O-ring 04815-00100 04817-00100 | 1 | $2.50 | |||
| 040 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 050 | O RING 04817-05200 | 1 | $2.01 | |||
| 070 | ASSY COVER, VALV YW165-00100 | 1 | $173.87 | |||
| 080 | O RING 04810-00080 04817-00080 | 1 | $2.26 | |||
| 090 | PLUG (GPF1/8) 5H550-19830 | 1 | $16.10 | |||
| 100 | BOLT 01150-00875 01153-50875 | 1 | $3.53 | |||
| 110 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 120 | PIPE, RETURN TA040-96150 | 1 | $44.04 | |||
| 130 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 140 | LEVER, VALVE AUX TC230-96220 | 1 | $51.34 | |||
| 150 | MDFE TD060-96250 | 1 | $2.69 | |||
| 160 | PIN 68021-32792 68021-32790 | 1 | $10.08 | |||
| 170 | Plain Washer 04011-00050 04012-50050 | 1 | $0.36 | |||
| 180 | Split Pin (Cotter Pin) 05511-51210 | 1 | $0.14 | |||
| 190 | GRIP,AUX.CONTR.LEVER TD060-96260 TD060-96262 | 1 | $7.65 | |||
| 200 | STAY TA040-96160 | 1 | $22.82 | |||
| 210 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 220 | Bolt 01133-51235 | 1 | $2.47 | |||
| 230 | Plain Washer 04015-50120 | 1 | $0.92 | |||
| 240 | MARK, AUX.CONT.V TD170-96710 | 1 | $5.03 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

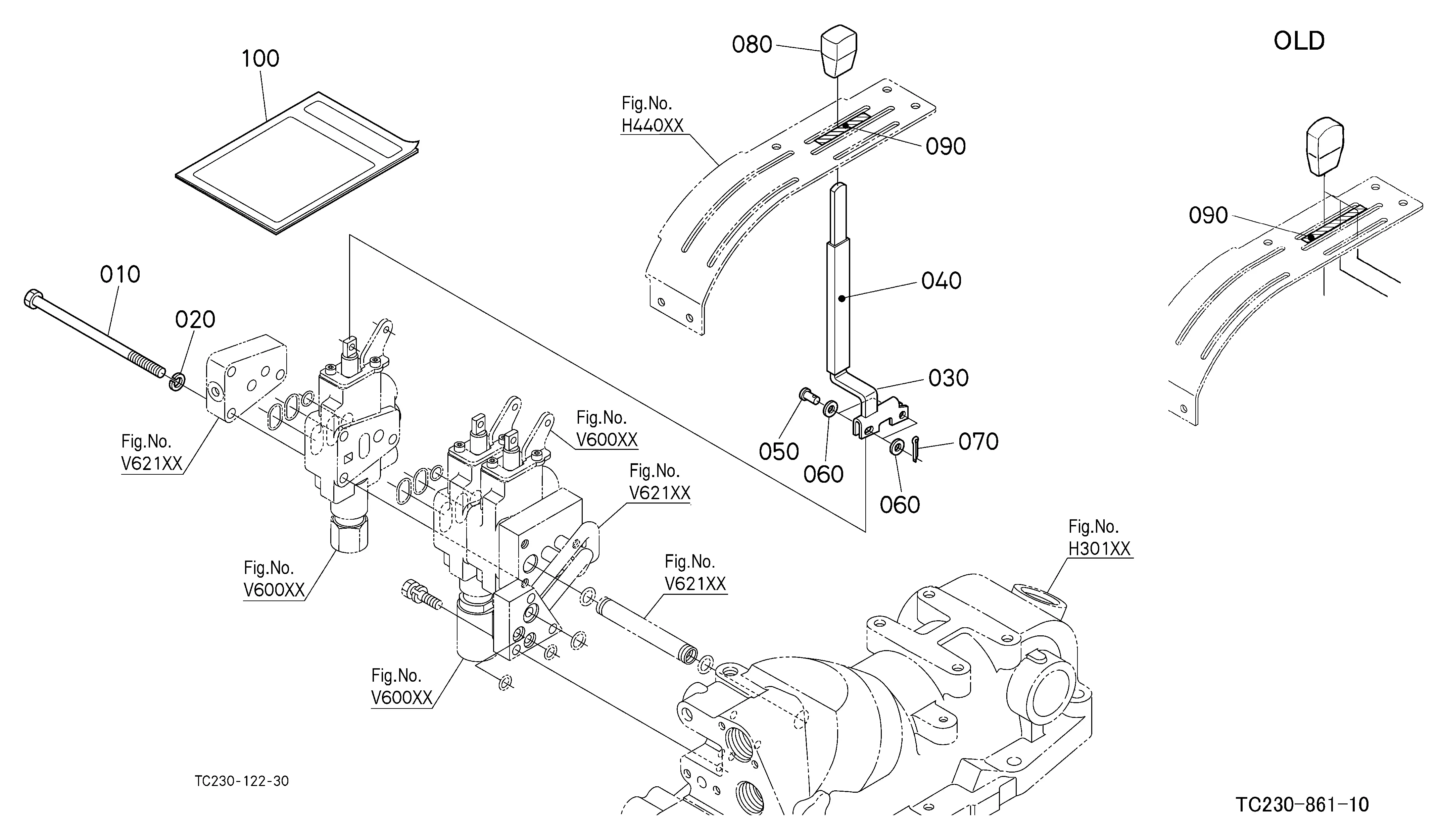

DIAG-V62104-85419 V62104 AUXILIARY CONTROL VALVE LEVER (2ND) [NEW] [OPTION]
View Diagram -
DIAG-V62107-85419 V62107 AUXILIARY CONTROL VALVE LEVER (3RD) [NEW] [OPTION]
View Diagram -
DIAG-V54000-85419 V54000 POSITION CONTROL LEVER (WITH DRAFT) [OPTION]
View Diagram
