Kubota MX4800DT V62101 AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.MX8451) [OPTION] Parts Diagram
Exploded-view parts diagram "V62101 AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.MX8451) [OPTION]" for the Kubota MX4800DT, Kubota MX4800F, Kubota MX4800H, Kubota MX5200DT, Kubota MX5200F, Kubota MX5200H and Kubota MX5800H. 22 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY PIPE, CONT. TC250-96140 | 1 | $607.53 | |||
| 020 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 030 | O-ring 04815-00100 04817-00100 | 1 | $2.50 | |||
| 040 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 050 | O RING 04817-05200 | 1 | $2.01 | |||
| 070 | ASSY COVER, VALV YW165-00100 | 1 | $173.87 | |||
| 080 | O RING 04810-00080 04817-00080 | 1 | $2.26 | |||
| 090 | PLUG (GPF1/8) 5H550-19830 | 1 | $16.10 | |||
| 100 | BOLT 01150-00875 01153-50875 | 1 | $3.53 | |||
| 110 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 120 | PIPE, RETURN TA040-96150 | 1 | $44.04 | |||
| 130 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 140 | LEVER, VALVE AUX TC250-96220 | 1 | $51.34 | |||
| 150 | MDFE TD060-96250 | 1 | $2.69 | |||
| 160 | PIN 68021-32792 68021-32790 | 1 | $10.08 | |||
| 170 | Plain Washer 04011-00050 04012-50050 | 1 | $0.36 | |||
| 180 | Split Pin (Cotter Pin) 05511-51210 | 1 | $0.14 | |||
| 190 | GRIP,AUX.CONTR.LEVER TD060-96260 TD060-96262 | 1 | $7.65 | |||
| 200 | STAY TA040-96160 | 1 | $22.82 | |||
| 210 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 220 | Bolt 01133-51235 | 1 | $2.47 | |||
| 230 | MARK, AUX.CONT.V TD170-96710 | 1 | $5.03 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

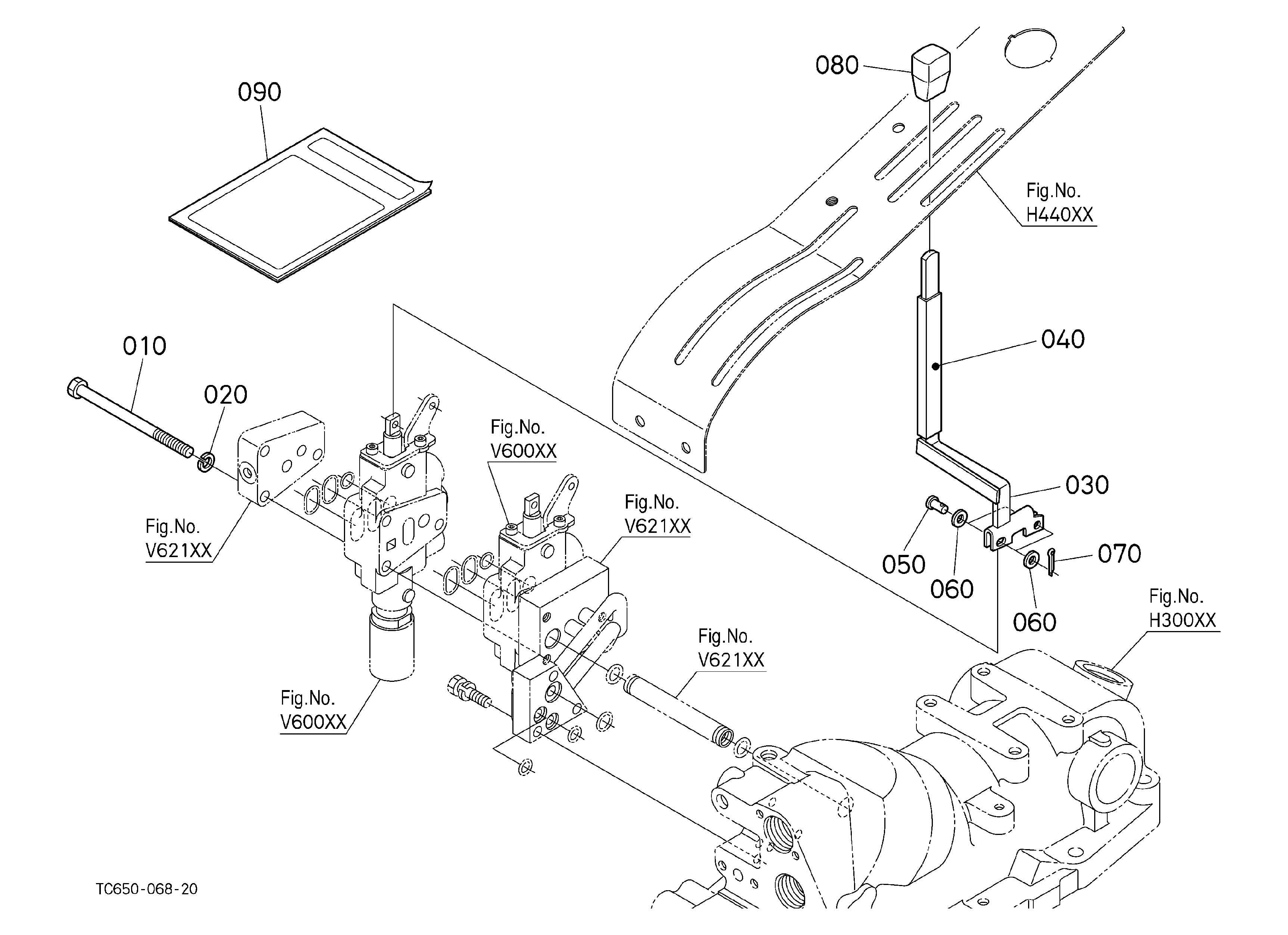

DIAG-V62102-93360 V62102 AUXILIARY CONTROL VALVE LEVER (2ND) (W/G No.MX8452) [OPTION]
View Diagram -

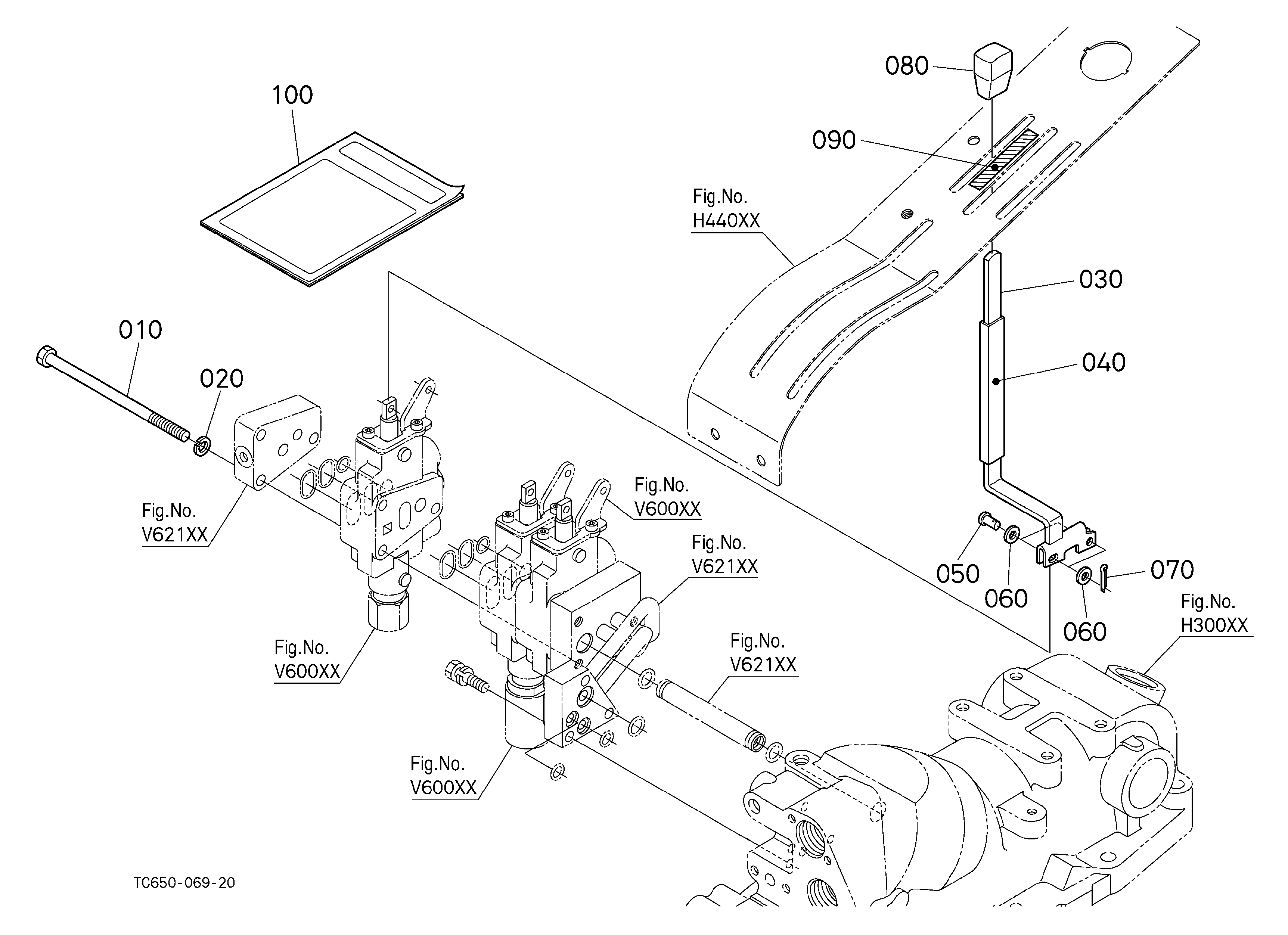

DIAG-V62103-93360 V62103 AUXILIARY CONTROL VALVE LEVER (3RD) (W/G No.MX8453) [OPTION]
