Kubota L4060HST V62101 AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.L8398) [OPTION] Parts Diagram

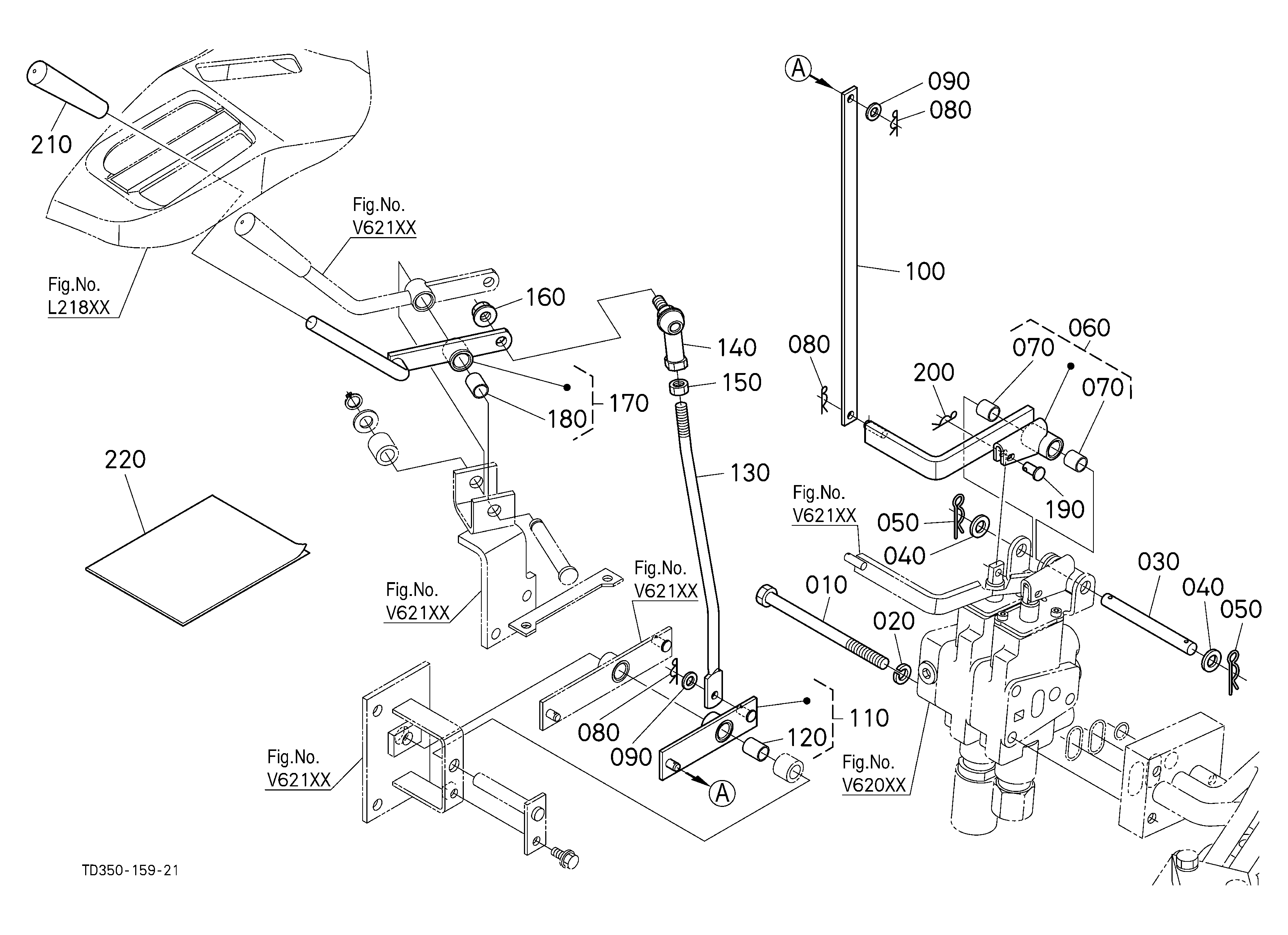

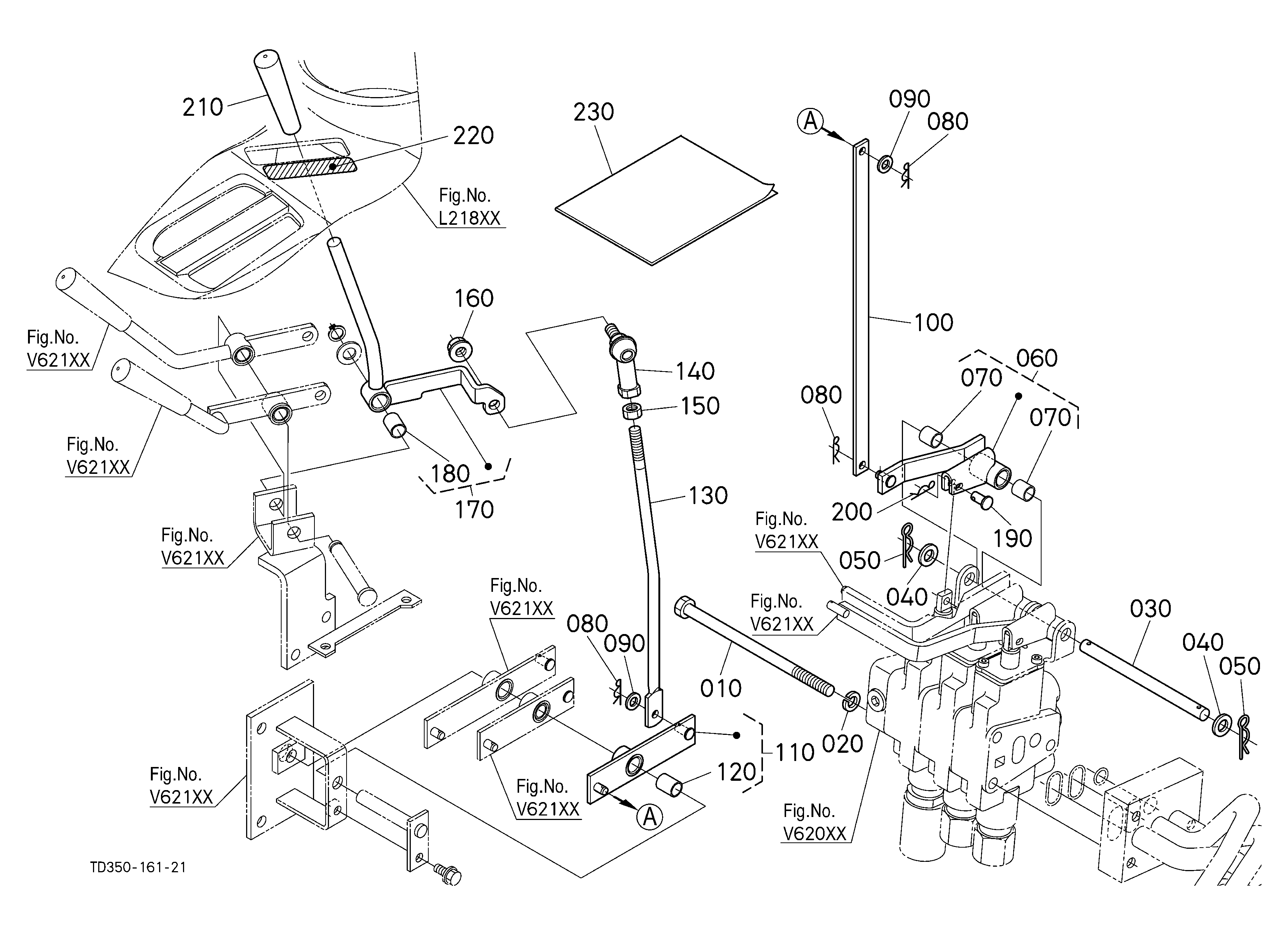

Exploded-view parts diagram "V62101 AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.L8398) [OPTION]" for the Kubota L4060HST. 31 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 PIN, SUPPORT 1 TD170-96360 1 AVAILABLE TO ORDER $17.03
020 Plain Washer 04011-00100 04011-50100 1 15 IN STOCK $0.36
030 Snap Pin Retaining Pin 05515-51000 1 9 IN STOCK $1.51
040 ASSY LEVER 1,AUX TD350-92120 1 AVAILABLE TO ORDER $213.99
040 LEVER,ASSY(1,AUX.CON TD350-92122 1 AVAILABLE TO ORDER $190.12
050 Bushing (Bush) 08511-01012 1 5 IN STOCK $5.05
060 Snap Pin 05525-50600 05525-70600 1 20 IN STOCK $1.48
070 Plain Flat Washer 3J099-05763 04013-50060 1 8 IN STOCK $0.60
080 LINK 1,AUX CON ( TD350-92330 1 AVAILABLE TO ORDER $10.62
080 LINK(1,AUX.CON1) TD350-92320 1 AVAILABLE TO ORDER $53.78
090 ASSY LEVER,AUX C TD350-92520 1 AVAILABLE TO ORDER $59.50
090 LEVER,ASSY TD350-92522 1 AVAILABLE TO ORDER $54.52
100 BUSH 53567-21170 08511-01015 1 1 IN STOCK $5.05
110 COLLAR TD170-92450 1 AVAILABLE TO ORDER $13.47
120 PIN,LINK (AUX CO TD350-96540 1 AVAILABLE TO ORDER $26.75
130 Flange Bolt 01754-50612 1 8 IN STOCK $1.87
140 LINK 2,AUX CON ( TD350-92390 1 AVAILABLE TO ORDER $28.54
150 END, ROD (CREEP 45404-95770 1 2 IN STOCK $27.49
160 Nut Fastener W2336-07200 02114-50080 1 15 IN STOCK $0.60
170 Flange Nut TA140-18310 02751-50080 1 13 IN STOCK $4.62
180 ASSY LEVER 3,AUX TD350-96610 1 AVAILABLE TO ORDER $68.23
200 COLLAR,AUX CON ( TD350-92450 1 AVAILABLE TO ORDER $20.82
210 PIN,LINK (AUX CO TD350-96640 1 AVAILABLE TO ORDER $78.29
230 PIN 68021-32792 68021-32790 1 AVAILABLE TO ORDER $10.08
240 CIR-CLIP 04612-50100 04612-00100 1 13 IN STOCK $0.60
250 Snap Pin 05525-50500 05525-70500 1 16 IN STOCK $1.48
260 GRIP, LEVER 61023-41630 1 1 IN STOCK $14.83
270 BRACKET,Q 1 AUX TD350-96490 1 AVAILABLE TO ORDER $50.99
280 BRACKET,Q 2 AUX TD350-96500 1 AVAILABLE TO ORDER $48.49
290 Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 1 19 IN STOCK $4.33
300 LABEL,AUX CON VA TD350-96710 1 AVAILABLE TO ORDER $3.35

Showing 1 to 31 of 31 parts
