Kubota L3770 V62000 AUXILIARY CONTROL VALVE BASE [OPTION] Parts Diagram
Exploded-view parts diagram "V62000 AUXILIARY CONTROL VALVE BASE [OPTION]" for the Kubota L3770 and Kubota L3970. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 020 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 030 | O-ring 04815-00100 04817-00100 | 1 | $2.50 | |||
| 040 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 050 | O RING 04817-05200 | 1 | $2.01 | |||
| 070 | ASSY COVER, VALV YW165-00100 | 1 | $173.87 | |||
| 080 | O RING 04810-00080 04817-00080 | 1 | $2.26 | |||
| 085 | PLUG (GPF1/8) 5H550-19830 | 1 | $16.10 | |||
| 090 | BOLT 01150-00875 01153-50875 | 1 | $3.53 | |||
| 100 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 120 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 130 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 150 | BOLT 01138-51235 | 1 | $2.95 | |||
| 160 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

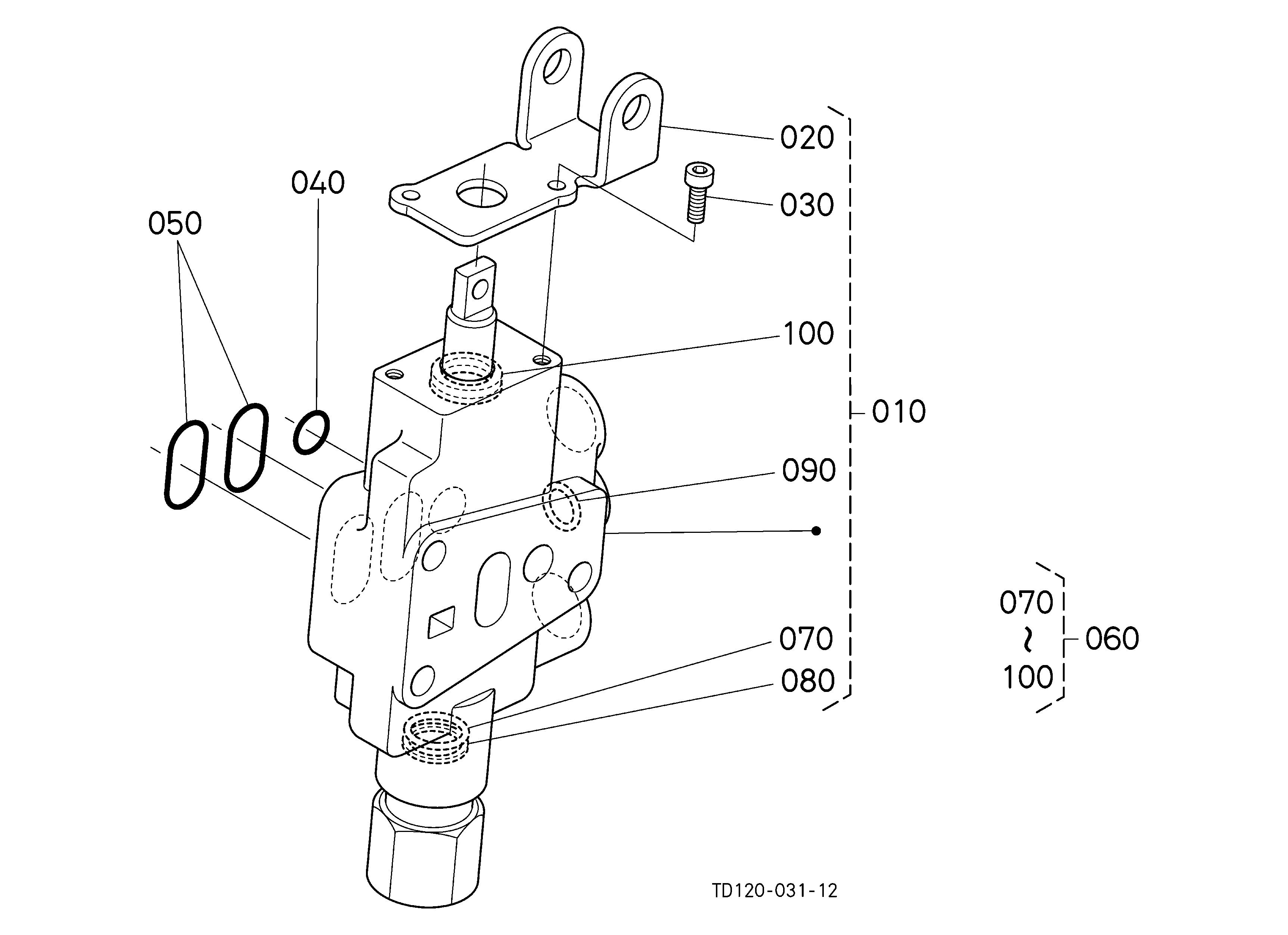

DIAG-V60020-405018 V60020 AUXILIARY CONTROL VALVE (FLOATING) [OPTION]
View Diagram -

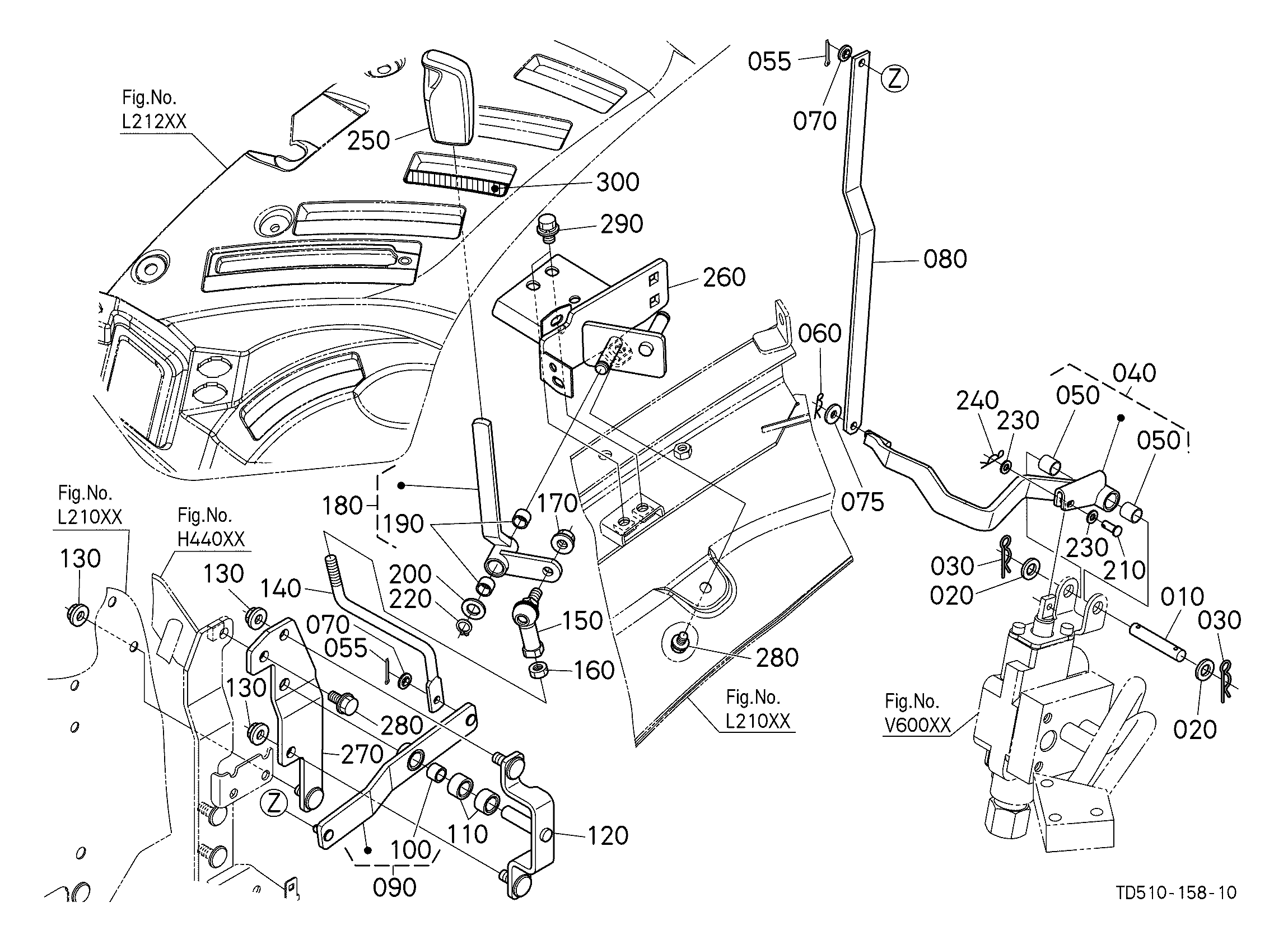

DIAG-V62110-405018 V62110 AUXILIARY CONTROL VALVE LEVER (1ST) [OPTION]
View Diagram -

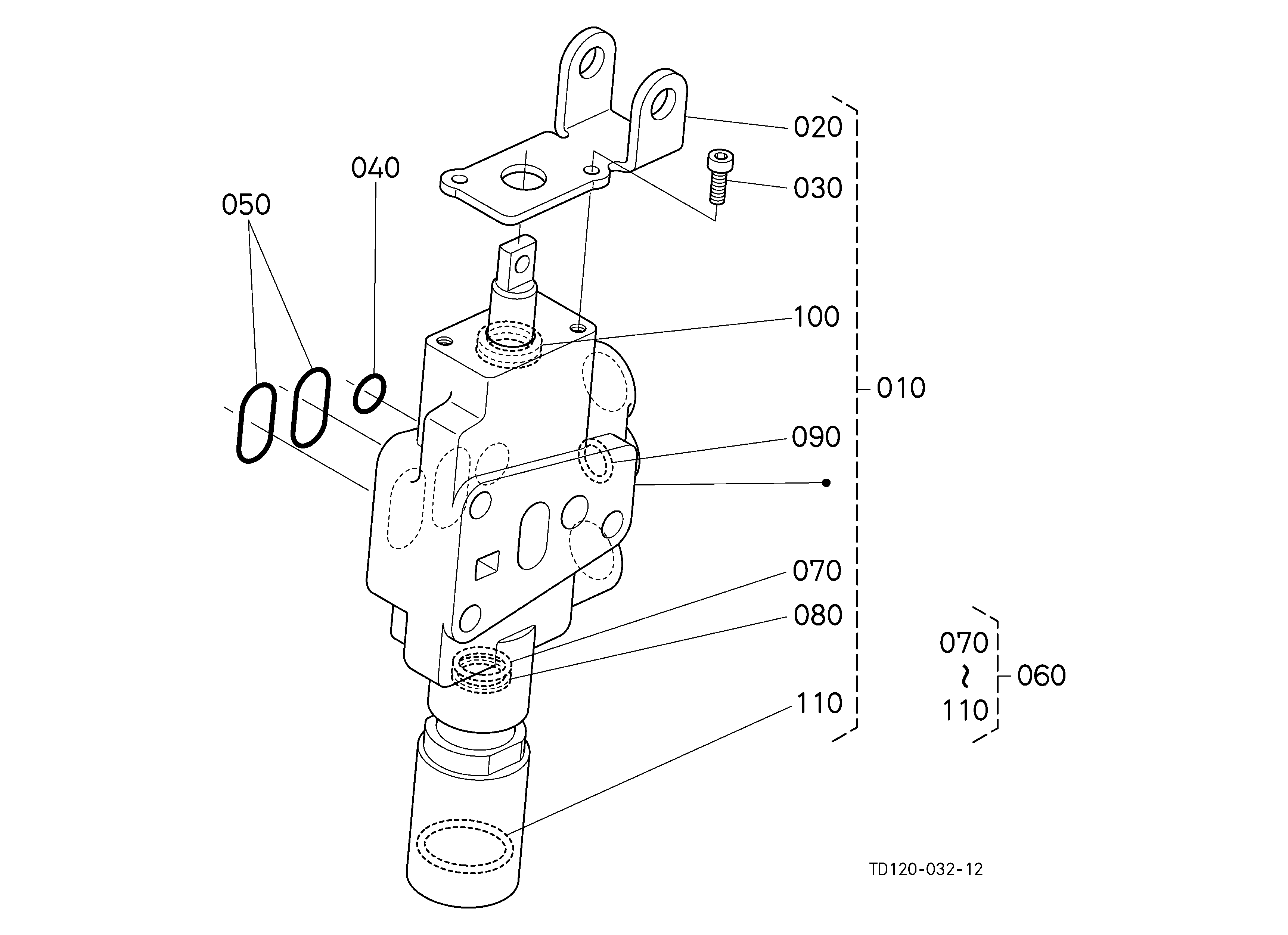

DIAG-V60010-405018 V60010 AUXILIARY CONTROL VALVE [OPTION]
