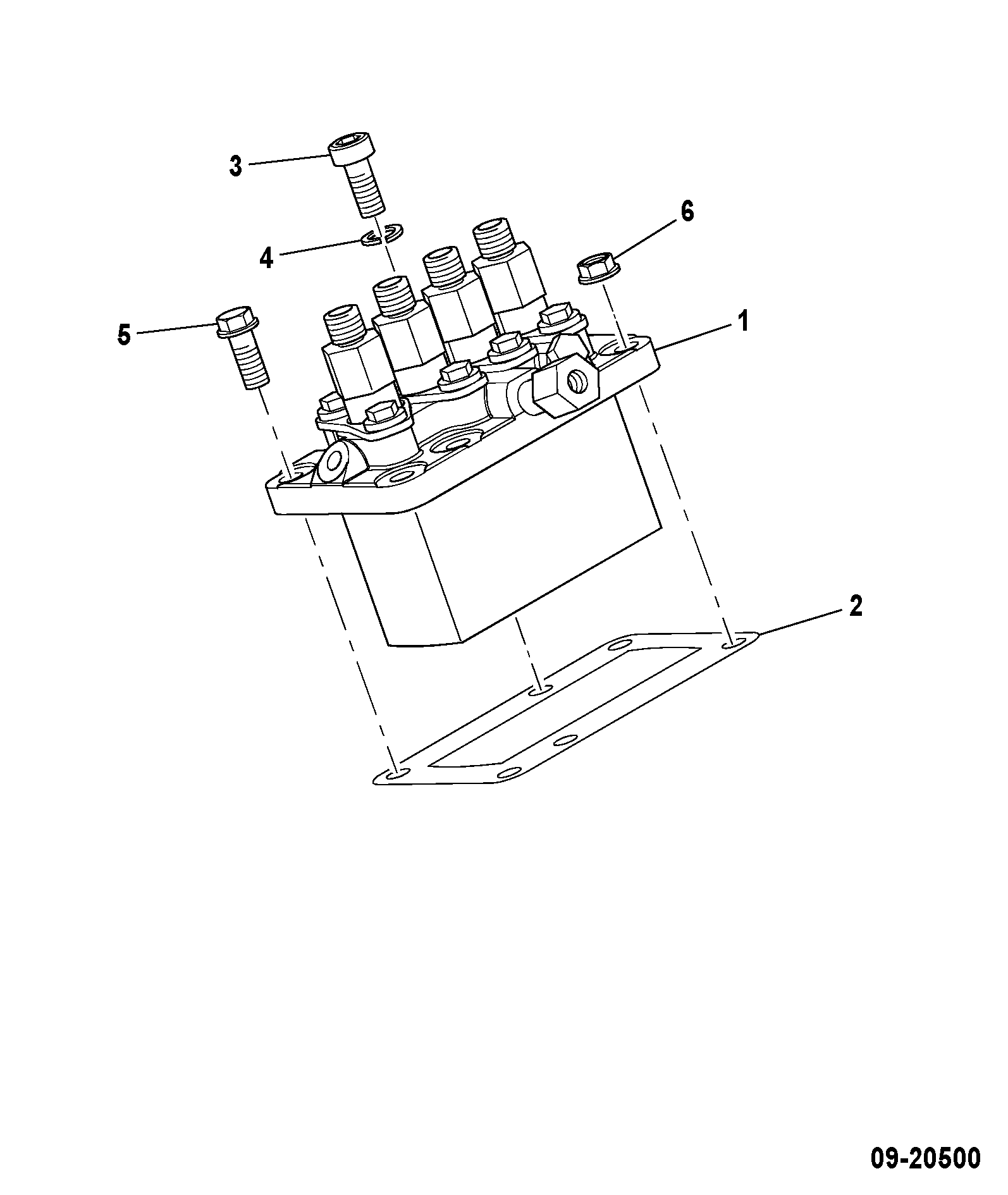

V610-1-1 FUEL PUMP LIFT . Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PUMP -FUEL LIFT 02/634780	1	AVAILABLE TO ORDER	$222.55	Quantity
2	FUEL PRE-FILTER 32/922300	1	3 IN STOCK	$68.34	Quantity
3	Bracket 02/634654	1	AVAILABLE TO ORDER	$18.60	Quantity
4	SCEW 826/10725	1	AVAILABLE TO ORDER	$5.52	Quantity
5	NUT 02/630078	1	AVAILABLE TO ORDER	$2.89	Quantity
6	WASHER 02/634224	1	AVAILABLE TO ORDER	$16.93	Quantity

Showing 1 to 6 of 6 parts

DIAG-V620-1-1-398102 V620-1-1 THROTTLE STOP CONTROLS .
View Diagram
DIAG-V550-5-1-398102 V550-5-1 OIL FILTER CONNECTOR
View Diagram
DIAG-V620-5-1-398102 V620-5-1 FUEL INJECTION PUMP .
View Diagram

Previous Assembly DIAG-V550-5-1-398102 V550-5-1 OIL FILTER CONNECTOR Next Assembly DIAG-V620-1-1-398102 V620-1-1 THROTTLE STOP CONTROLS .
