V550-1-1 OIL FILTER ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cover 02/960110	1	AVAILABLE TO ORDER	$113.42	Quantity
2	Plug 02/960112	1	AVAILABLE TO ORDER	$11.93	Quantity
3	Washer copper (UOI 25) 02/960113	1	25 IN STOCK	$2.14	Quantity
4	ELEMENT 02/960114	1	AVAILABLE TO ORDER	$91.98	Quantity
8	Screw 02/960105	1	AVAILABLE TO ORDER	$21.40	Quantity
9	Filter oil 02/960109	1	AVAILABLE TO ORDER	$29.69	Quantity
10	O-RING 02/960111	1	AVAILABLE TO ORDER	$9.75	Quantity

Showing 1 to 7 of 7 parts

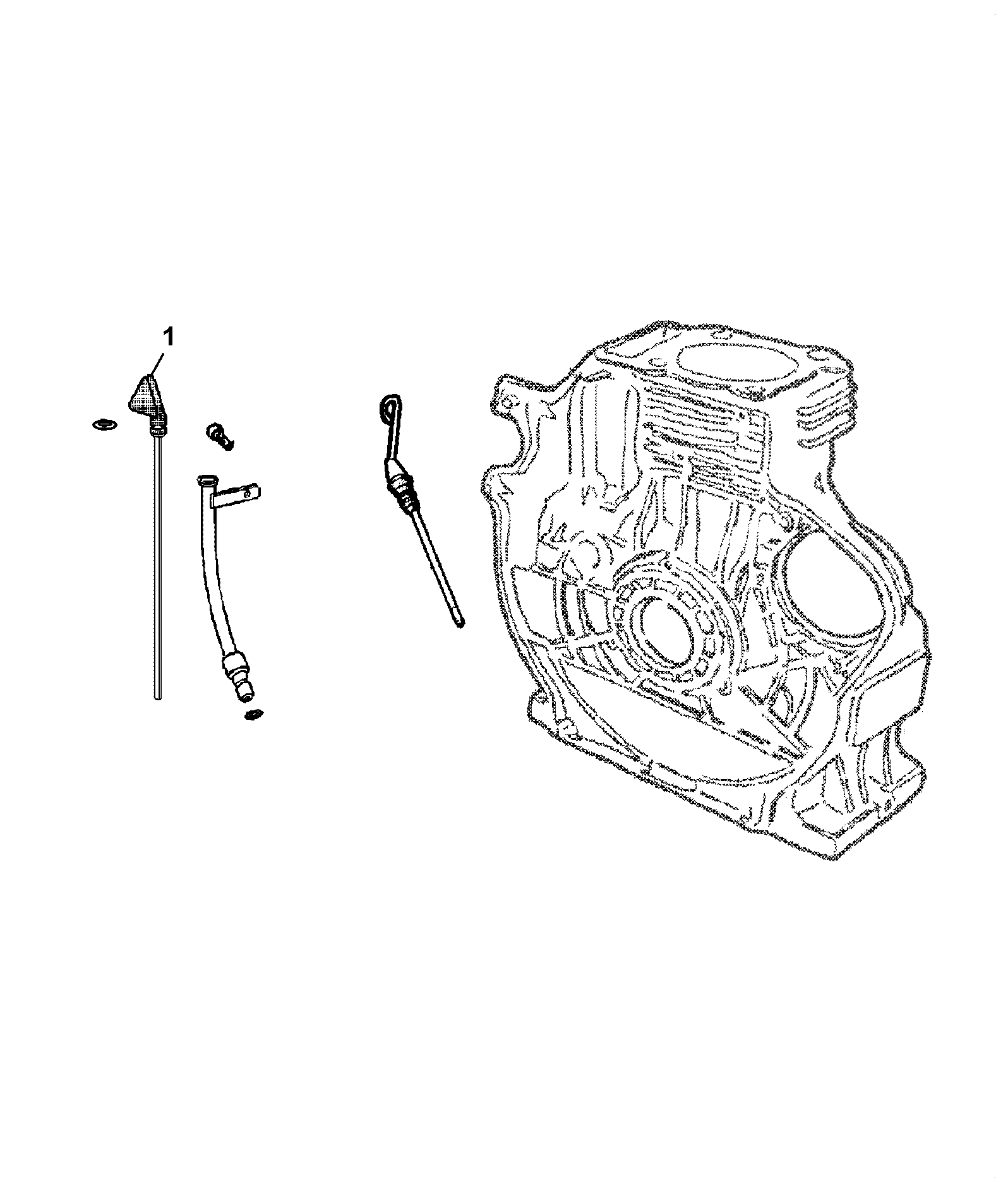

DIAG-V540-1-1-399304 V540-1-1 DIPSTICK OIL DIPSTICK
View Diagram

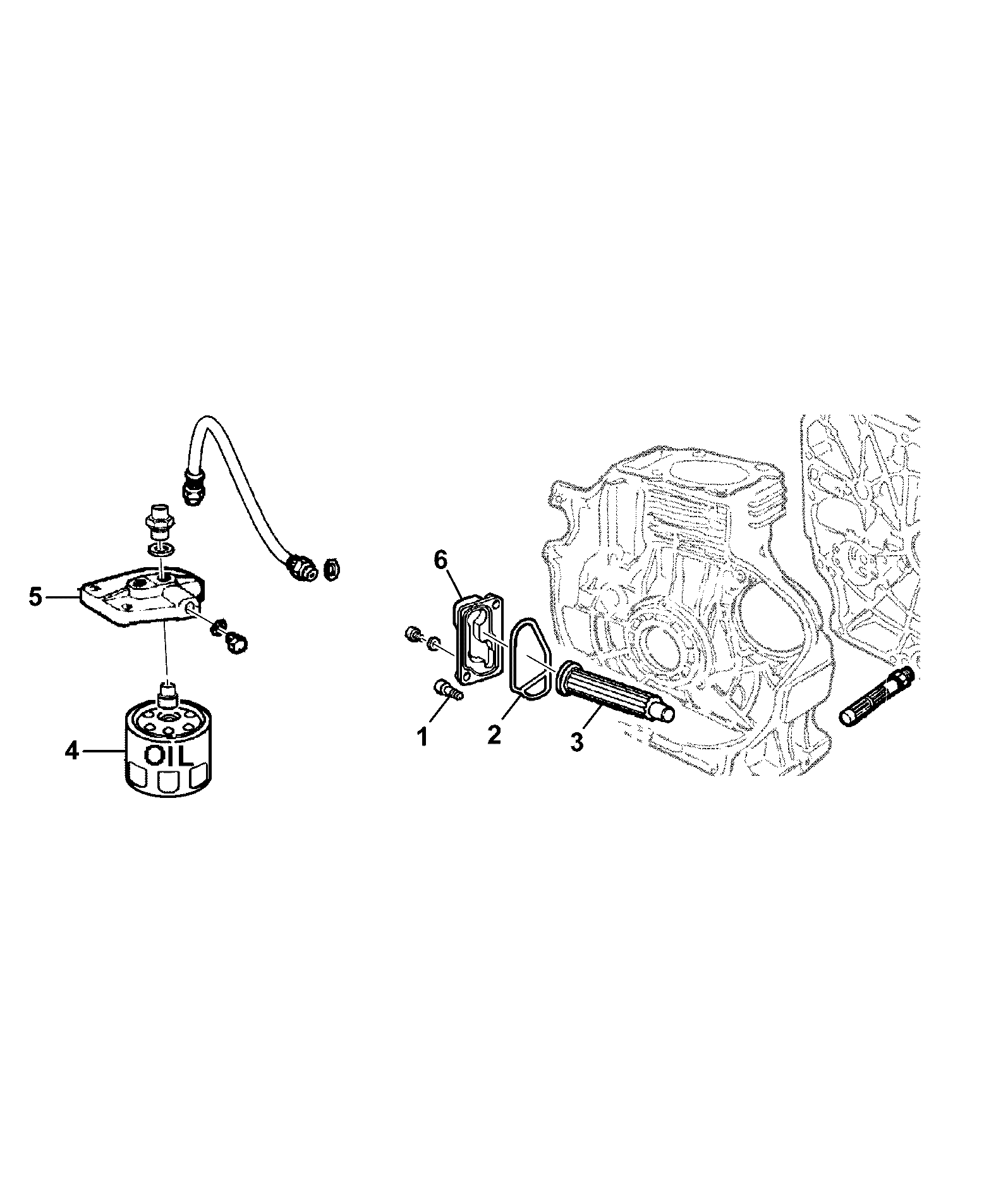

DIAG-V550-5-1-399304-12231940 V550-5-1 OIL FILTER OIL PRESSURE VALVE
