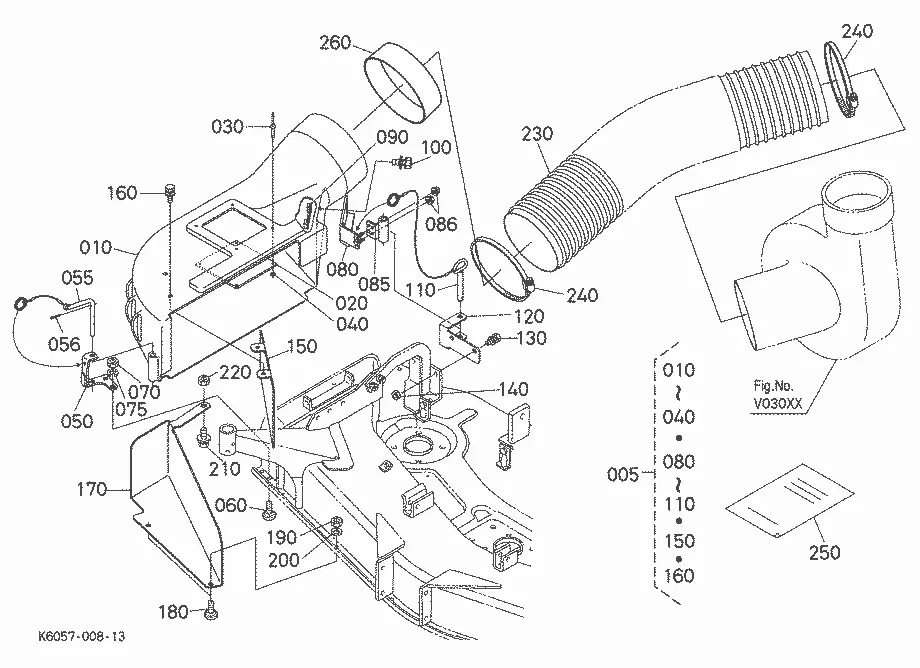

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | CASE, ASSY BOOT K6056-30010 K6056-30012 | 1 | $1,333.21 | |||
| 010 | CASE, BOOT K6056-31013 | 1 | $430.21 | |||
| 020 | WINDOW K6056-52500 | 1 | $19.23 | |||
| 030 | 3/16 in Pop Rivet K6045-52480 | 1 | $1.48 | |||
| 030 | Pop Rivet - 3/1 K6045-52470 | 1 | $0.71 | |||
| 040 | WASHER, POP RIVE K6045-52490 | 1 | $6.50 | |||
| 050 | STAY, FULCRUM 54 K6057-31510 | 1 | $134.66 | |||
| 060 | M8-1.25 Metric Bolt K1122-91320 | 1 | $3.94 | |||
| 060 | Short Square Bolt K1122-91330 K1122-91332 | 1 | $0.60 | |||
| 070 | Nut Fastener W2336-07200 02114-50080 | 1 | $30.16 | |||
| 075 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.92 | |||
| 080 | STAY, BOOT 60 K6056-31530 K6056-31534 | 1 | $47.37 | |||
| 085 | BOSS, BOOT K6056-31560 K6056-31562 | 1 | $79.79 | |||
| 086 | Nut Hardware Fastener 02121-50080 | 1 | $1.07 | |||
| 090 | PLATE (BOOT,1) K6056-31550 K6056-31552 | 1 | $12.54 | |||
| 100 | BOLT 01025-50816 01125-50825 | 1 | $1.77 | |||
| 110 | PIN(ASSY FRONT) K6045-45500 K6045-45503 | 1 | $15.44 | |||
| 120 | STAY, DECK 54-24 K6057-31640 K6057-31642 | 1 | $282.23 | |||
| 120 | STAY, DECK 54-29 K6057-31550 | 1 | $75.64 | |||
| 130 | Bolt 01133-51235 | 1 | $2.47 | |||
| 140 | Nut Fastener for Equipment Assemblies 02173-50120 02174-50120 | 1 | $1.01 | |||
| 150 | PLATE, FRONT 60 K6056-31522 | 1 | $33.68 | |||
| 170 | PLATE, MOWER 54 K6056-31680 | 1 | $75.23 | |||
| 190 | Nut 60009-61553 02054-50080 | 1 | $2.01 | |||
| 210 | BOLT 01135-61020 01135-71020 | 1 | $1.99 | |||
| 220 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 230 | CHUTE 1 K6165-47000 K6057-47002 | 1 | $574.70 | |||
| 240 | CLAMP, HOSE K4182-31830 | 1 | $48.74 | |||
| 250 | EX MANUAL,INSTRU K6057-92092 Discontinued | 1 | $10.27 | |||
| 250 | IM - GCK60-76B * K6057-92090 Discontinued | 1 | $7.20 | |||
| 260 | BOOT, SEAL K6056-31130 | 1 | $21.48 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-V50001-84989 V50001 BOOT CASE
View Diagram -
DIAG-V50003-84989 V50003 BOOT CASE
View Diagram -

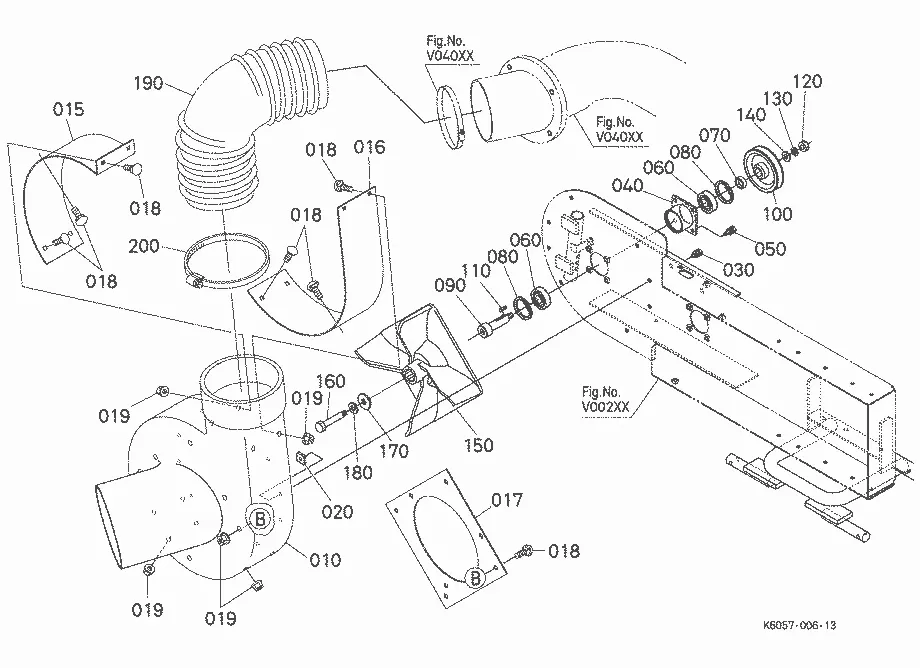

DIAG-V03001-84989 V03001 BLOWER
View Diagram
