V500-5-1 LUBRICATION SYSTEM OIL FILLER Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cap oil filler 333/H5494	1	AVAILABLE TO ORDER	$62.11	Quantity
2	O Ring 02/960049	1	AVAILABLE TO ORDER	$4.62	Quantity
3	O Ring 333/H5497	1	AVAILABLE TO ORDER	$7.18	Quantity
4	oil fill assy 333/H5498	1	AVAILABLE TO ORDER	$70.62	Quantity
5	m6x20 333/H5203	1	AVAILABLE TO ORDER	$3.61	Quantity

Showing 1 to 5 of 5 parts

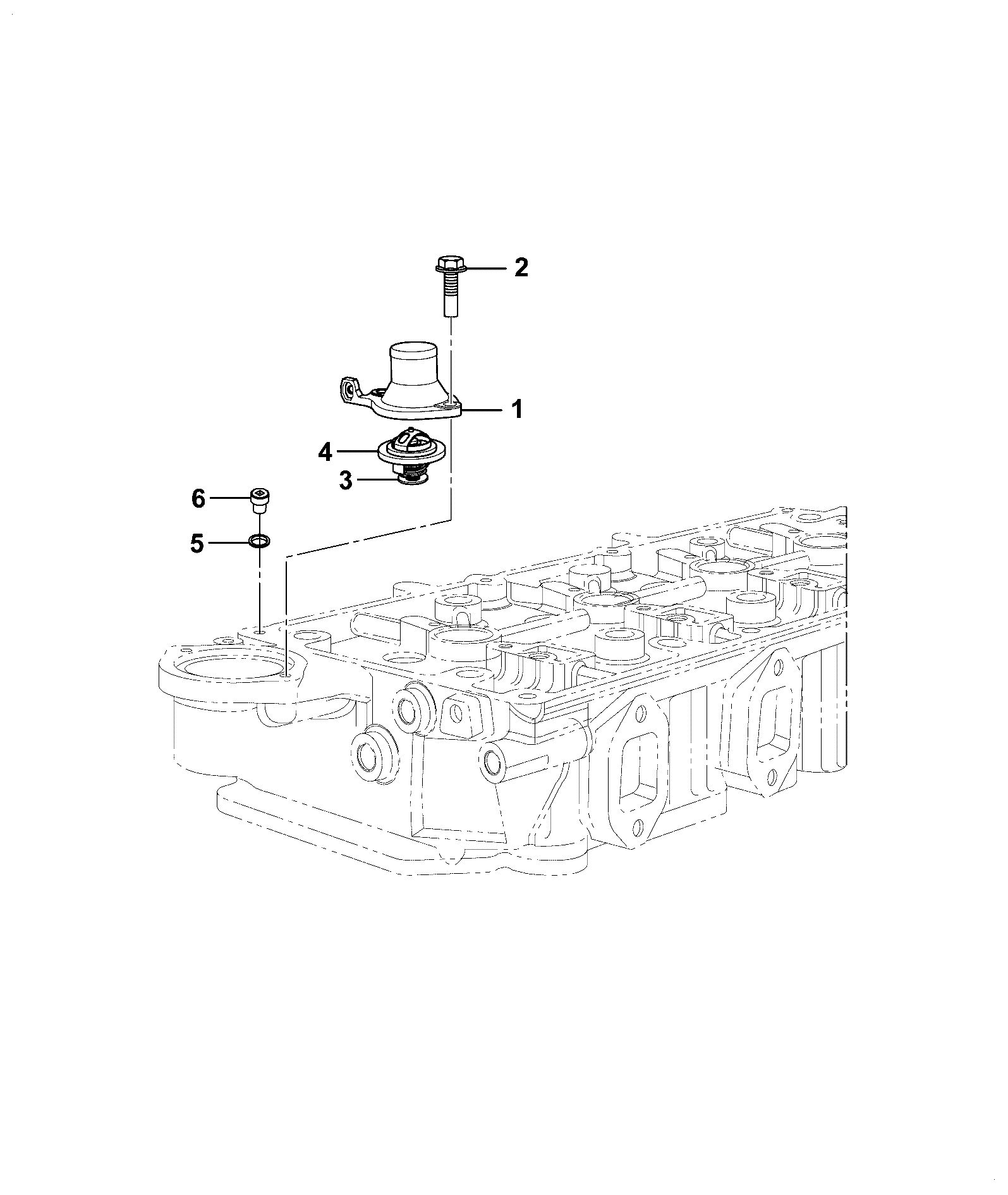

DIAG-V420-10-1-397579 V420-10-1 THERMOSTAT - WATER ASSEMBLY THERMOSTAT UNIT
View Diagram
DIAG-V520-10-1-397579 V520-10-1 OIL PAN OIL PAN
View Diagram

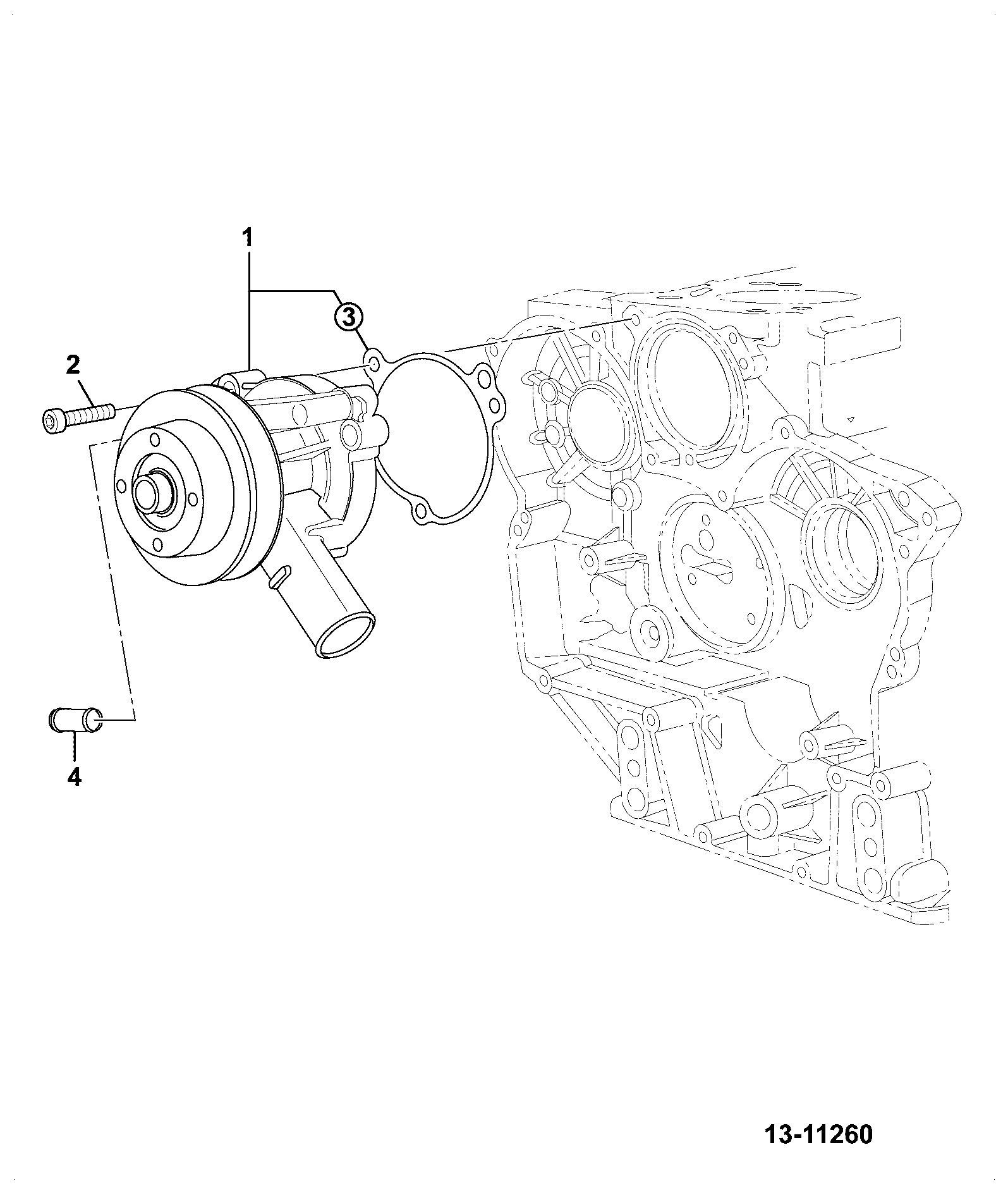

DIAG-V410-5-1-397579 V410-5-1 WATER PUMP ASSEMBLY
