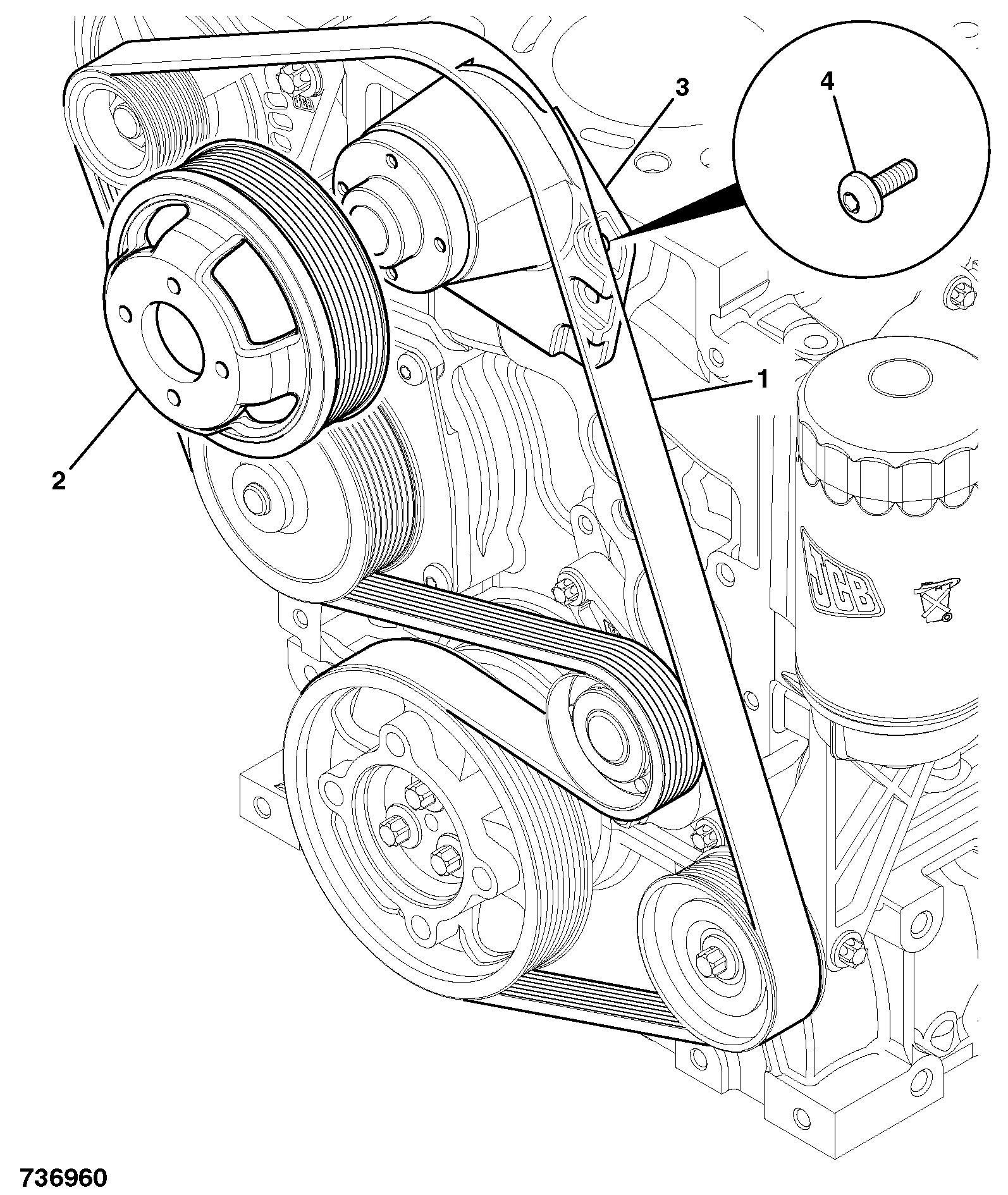

V49-4-1 FRONT END DRIVE ACCESSORY WITH COOLING FAN AND AIR CONDITIONING

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	BELT.8PK 2011 AR3 320/08604	1	AVAILABLE TO ORDER	$99.20	Quantity
2	FAN PULLEY EFF DIA 190 320/A8508	1	AVAILABLE TO ORDER	$90.19	Quantity
4	SCREW M8X20 PAN HEAD(KANBAN) (BR3) 320/08802	1	AVAILABLE TO ORDER	$10.95	Quantity
5	IDLER PULLEY - A/C (new 08921) 320/08530 320/08773	1	AVAILABLE TO ORDER	$69.42	Quantity

Showing 1 to 4 of 4 parts

DIAG-V49-3-1-404497 V49-3-1 FRONT END DRIVE ACCESSORY WITH COOLING FAN
View Diagram

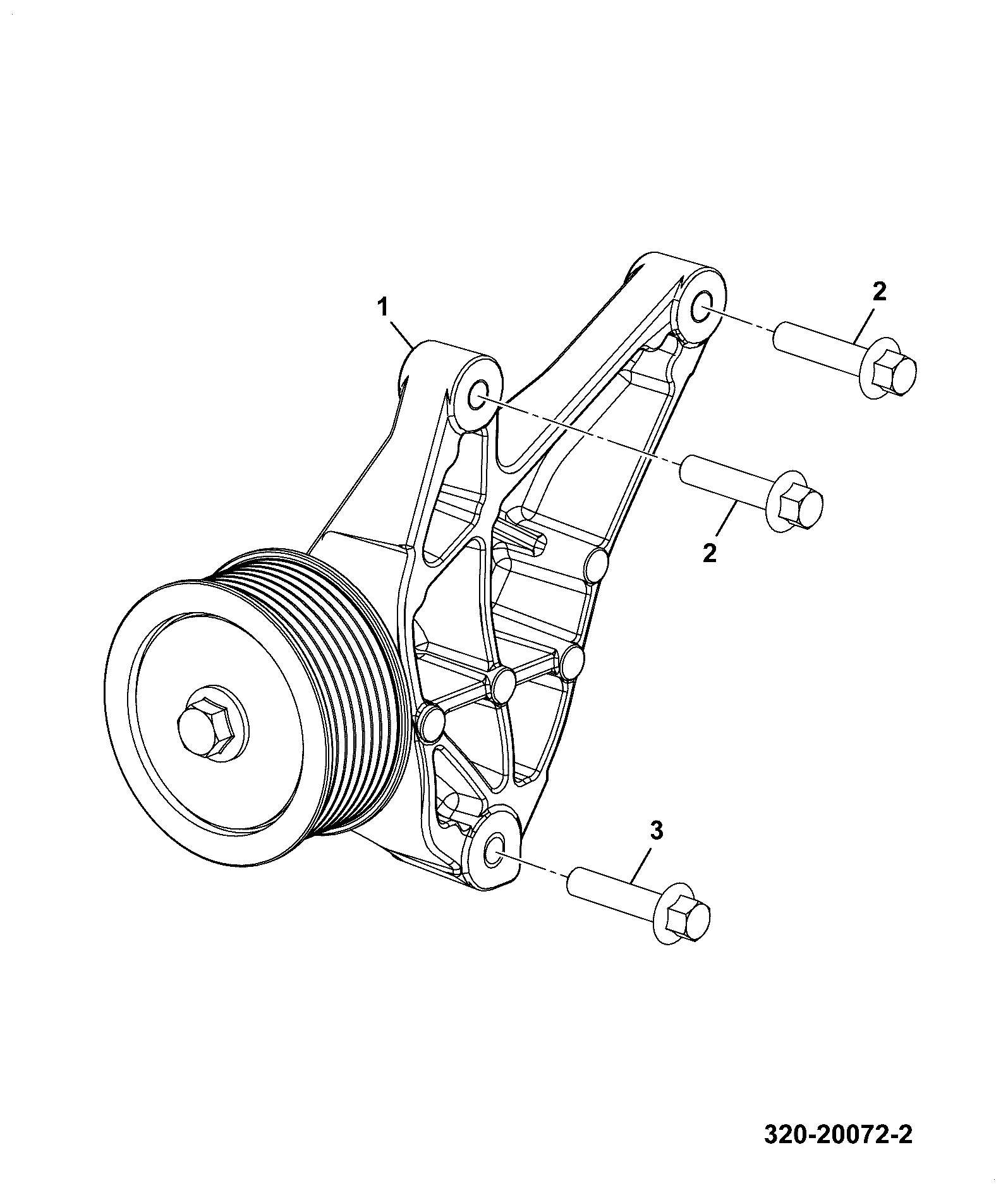

DIAG-V49-20-1-404497 V49-20-1 LOWER IDLER PULLEY SMALL
View Diagram

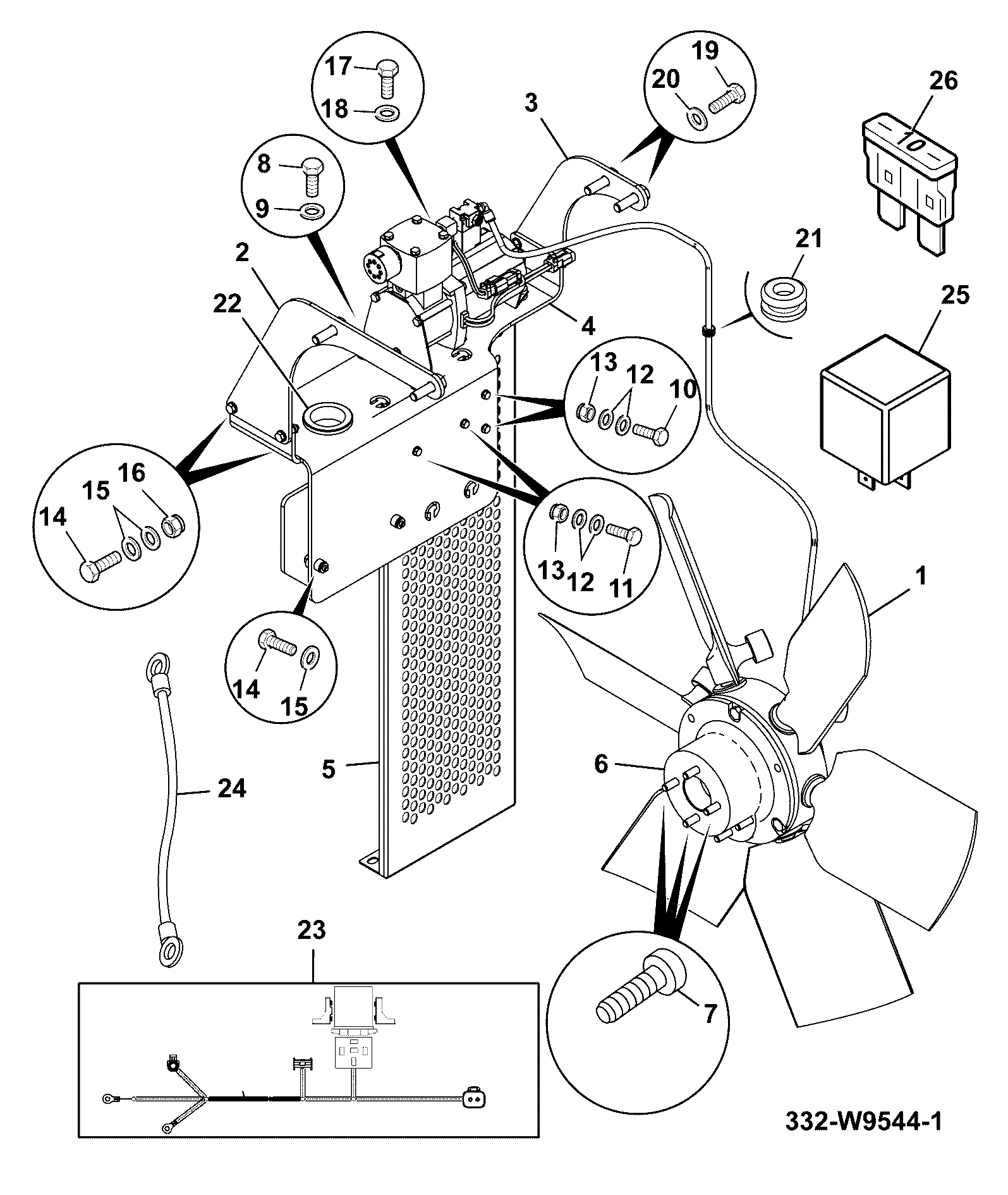

DIAG-V49-1-10-404497 V49-1-10 COOLING FAN REVERSE AIR OPERATED, SALES OPTION
