Scroll to zoom Click a part # to view details

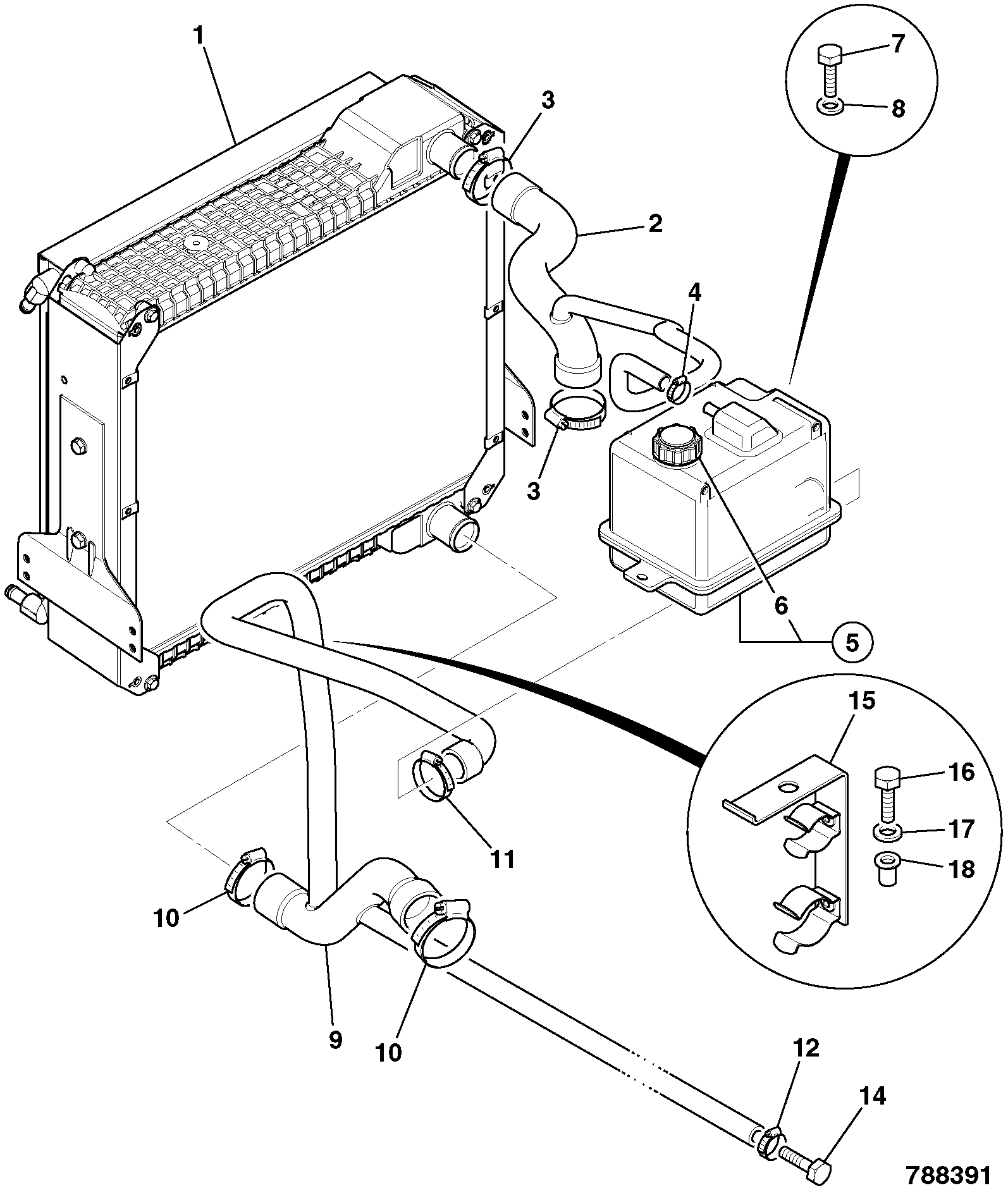

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COOLING PACK 2ws 128/14326 | 1 | $5,344.71 | |||
| 2 | TOP HOSE 2WS 834/11380 | 1 | $159.21 | |||
| 4 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
| 5 | GA EXPANSION TANK sensor 128/15479 | 1 | $454.80 | |||
| 6 | PRESSURE CAP 477/00223 | 1 | $56.31 | |||
| 7 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 9 | GA BOTTOM HOSE 2ws 834/10991 128/15196 | 1 | $300.89 | |||
| 10 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 11 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 12 | W) CLIP - WORMDRIVE 20/32mm 2201/0006 | 1 | $5.14 | |||
| 14 | BOLT M16x60 1315/3714Z | 1 | $5.00 | |||
| 15 | PLUG 1/2 UNF O-RING BOSS(KANBAN) 816/90702 | 1 | $24.03 | |||
| 16 | O RING 828/10310 | 1 | $6.94 | |||
| 17 | Guide hose 128/15558 | 1 | $31.03 | |||
| 18 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 20 | RIVET NUT-M8(KANBAN) 826/01102 | 1 | $4.83 | |||
| 22 | O RING 2401/0504 | 1 | $0.62 | |||
| 23 | 3-WAY DEUTSCH DTM BLANKING PLUG 715/20029 | 1 | $7.34 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-V48-7-1-395124 V48-7-1 RADIATOR & HOSES
View Diagram -
DIAG-V47-11-1-395124 V47-11-1 COMBINATION COOLER ASSEMBLY 2WS 20" FAN NON CAC
View Diagram -
DIAG-V47-1-1-395124 V47-1-1 COMBINATION COOLER 2WS ASSEMBLY
View Diagram
