Scroll to zoom Click a part # to view details

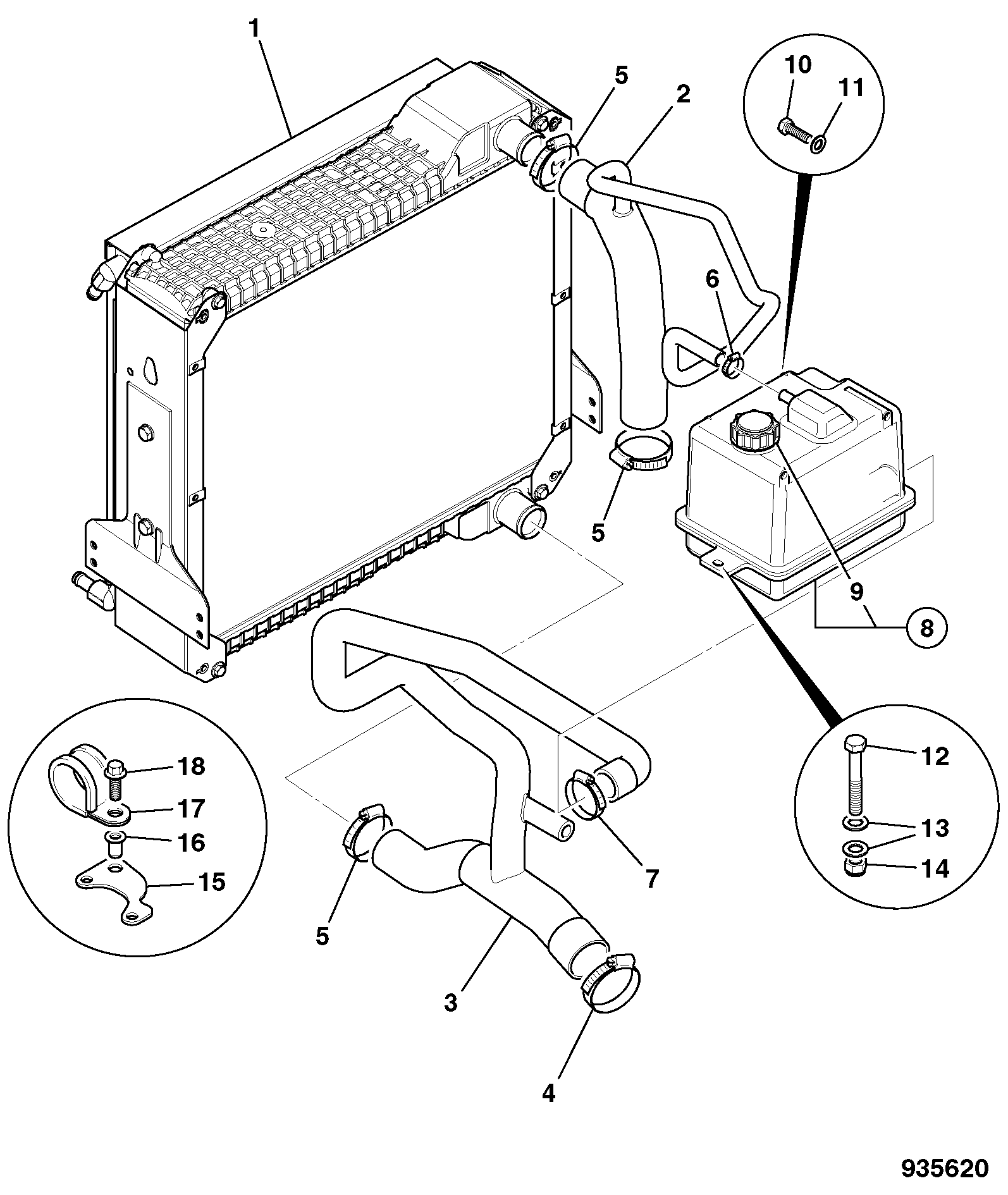

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COOLING PACK 2ws 128/14326 | 1 | $5,344.71 | |||
| 2 | TOP HOSE 2WS 834/11380 | 1 | $159.21 | |||
| 4 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $0.00 | |||
| 5 | GA EXPANSION TANK 128/15480 | 1 | $0.00 | |||
| 6 | PRESSURE CAP 477/00223 | 1 | $56.31 | |||
| 7 | (W) SET SCREW M8x40 1315/0310Z | 1 | $0.00 | |||
| 9 | BOTTOM HOSE 2ws 834/11557 | 1 | $117.61 | |||
| 10 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 11 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 12 | W) CLIP - WORMDRIVE 20/32mm 2201/0006 | 1 | $5.14 | |||
| 14 | HOSE CONNECTOR (P564) RE-INST 141/00953 650/10166 | 1 | $15.21 | |||
| 15 | BOLT M16x60 1315/3714Z | 1 | $0.00 | |||
| 16 | Guide hose 128/15558 | 1 | $31.03 | |||
| 17 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 18 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 19 | RIVET NUT-M8(KANBAN) 826/01102 | 1 | $4.83 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

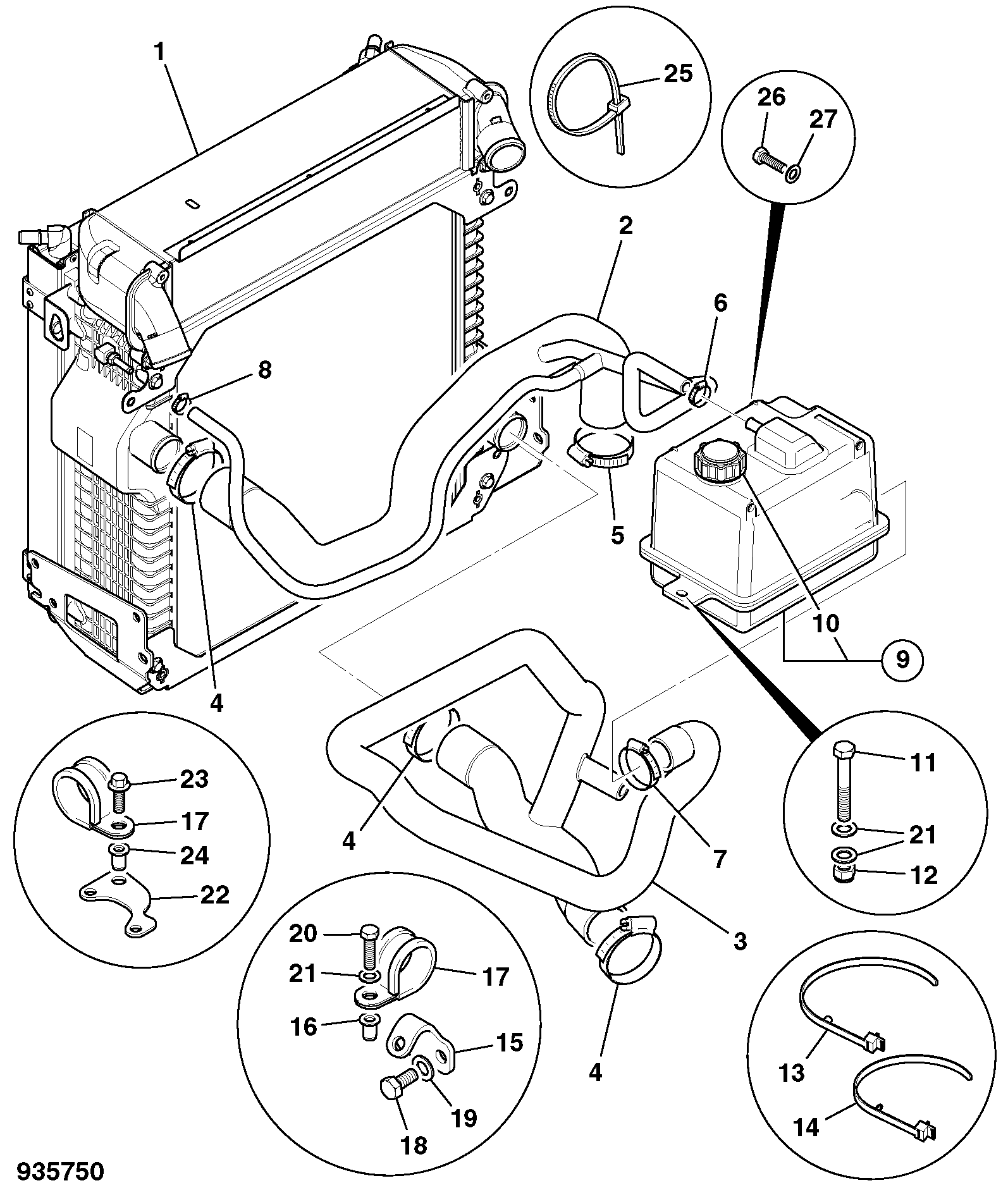

DIAG-V48-14-1-394826 V48-14-1 RADIATOR & HOSES AWS 100BHP T3, CHARGE AIR COOLED BUILDS
View Diagram -
DIAG-V48-13-1-394826 V48-13-1 RADIATOR & HOSES AWS 100BHP T3
View Diagram -

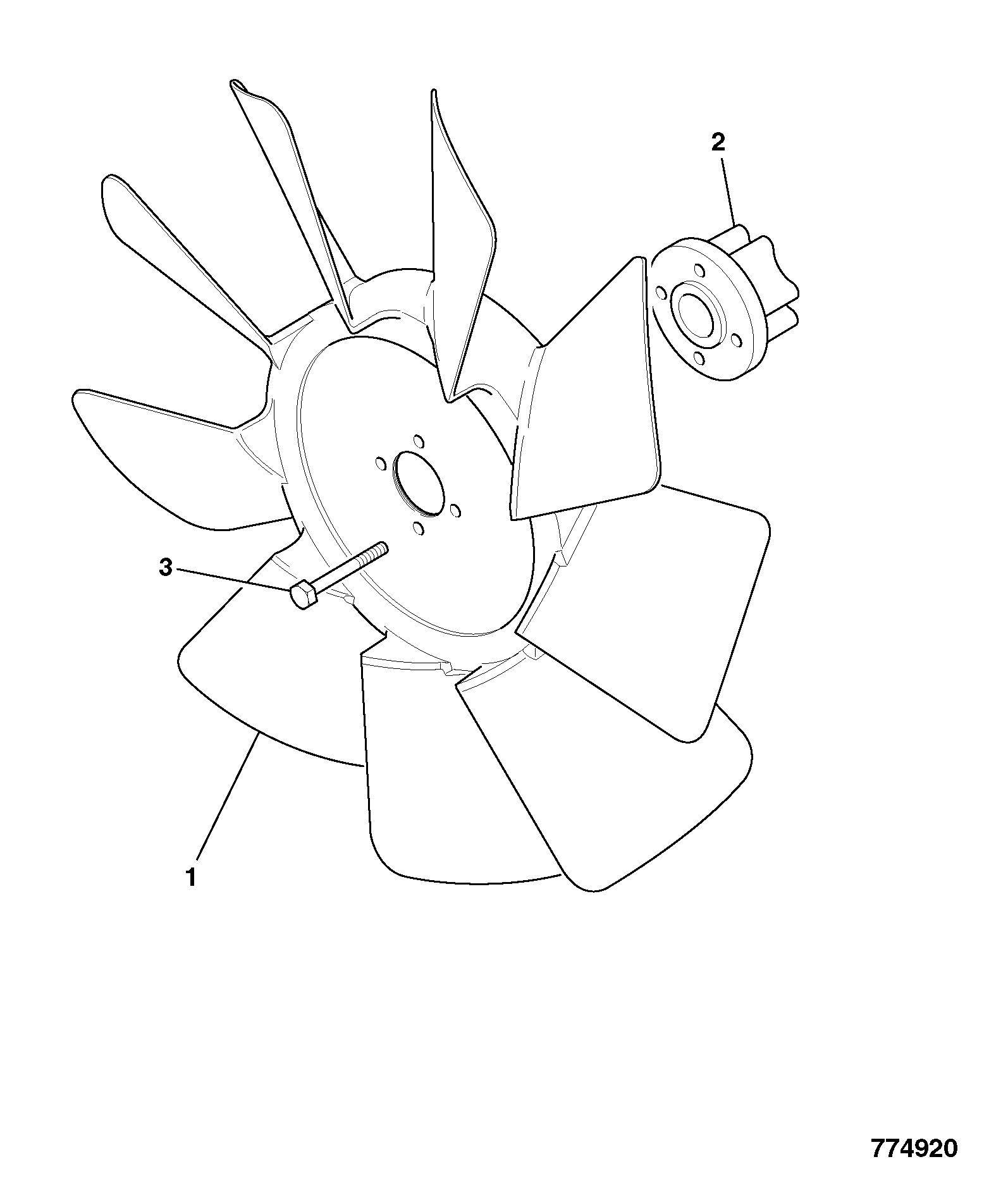

DIAG-V49-2-1-394826 V49-2-1 COOLING FAN 20" AWS BUILDS T2
View Diagram
