Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COMBINATION COOLING PACK 332/T9374 | 1 | $9,970.21 | |||

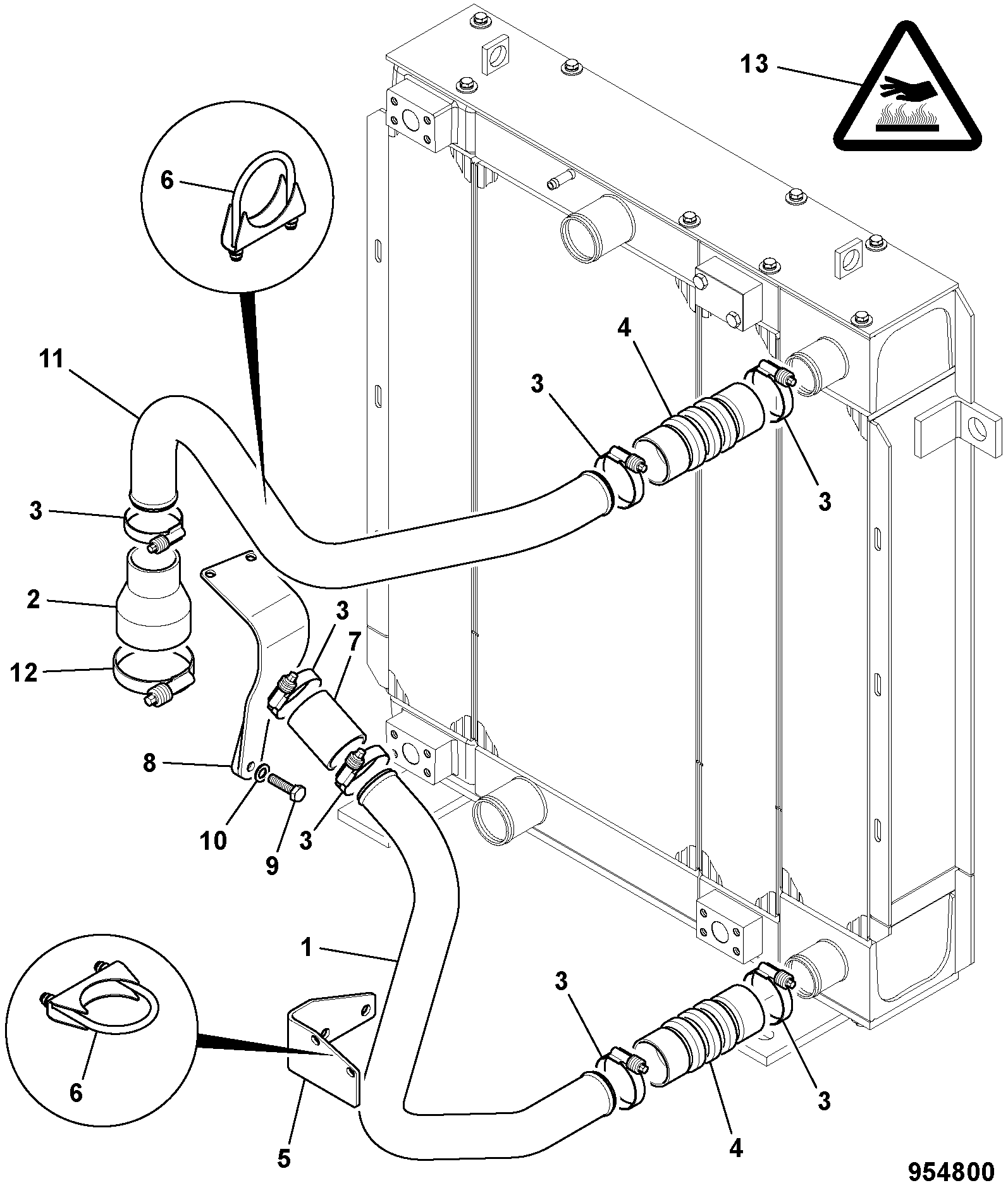

| 2 | HOSE TOP COOLANT JCB 416 834/11274 | 1 | $76.35 | |||
| 3 | HOSE BOTTOM COOLANT JCB 416 834/11275 334/S3737 | 1 | $425.16 | |||
| 4 | HOSE VENT 332/V8929 | 1 | $20.13 | |||
| 5 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 6 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 7 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
| 8 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 9 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 10 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 11 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 12 | HEADER TANK WW 332/E9125 | 1 | $171.44 | |||
| 13 | PRESSURE CAP 477/00223 | 1 | $56.31 | |||
| 14 | PLUG 1/2 UNF O-RING BOSS(KANBAN) 816/90702 | 1 | $24.03 | |||
| 15 | O RING 2401/0504 | 1 | $0.62 | |||
| 17 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 18 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-V47-2-1-404497 V47-2-1 COOLER ASSEMBLY EPOXY COATED
View Diagram -
DIAG-V48-3-1-404497 V48-3-1 COOLER,AIR CHARGE INSTALLATION
View Diagram -
DIAG-V47-1-1-404497 V47-1-1 COOLER ASSEMBLY
View Diagram
