Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| FIXING BRKT - FAN COWL 331/68909 | 1 | $500.60 | ||||
| 1 | Cooler combination 30/926944 | 1 | $2,103.14 | |||
| 2 | Cowling fan - ATB 30/927119 | 1 | $295.90 | |||
| 3 | WA TOP ANTI RE-CRIC PLATE 335/90456 | 1 | $430.26 | |||
| 4 | WA MIDDLE ARC PL 335/14155 | 1 | $163.25 | |||
| 7 | C/PACK & COWL BRKT 332/R3904 | 1 | $80.86 | |||
| 9 | ANTI-RECIRC COWL 332/R3443 | 1 | $156.67 | |||
| 11 | BOTTOM WATER HOSE 524/7 332/R9632 | 1 | $175.68 | |||
| 12 | TOP WATER HOSE 524/7 332/R3148 | 1 | $64.34 | |||
| 13 | RESILIENT MOUNT 141/00936 | 1 | $17.97 | |||
| 14 | SEALING PROFILE 50M (ROLL) 926/19700 | 1 | $34.06 | |||
| 16 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 17 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 18 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 19 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 20 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 21 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 22 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 23 | RECOVERY BOTTLE.RAD.O/FLW 243/20162 | 1 | $227.38 | |||
| 24 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 25 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 26 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 27 | HOSE BAND 826/01749 | 1 | $2.28 | |||
| 29 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
| 30 | DRAIN PLUG ; COOLING 242/00387 | 1 | $46.61 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-V46-4-1-400577 V46-4-1 COOLING INSTALLATION ASSEMBLIES
View Diagram -

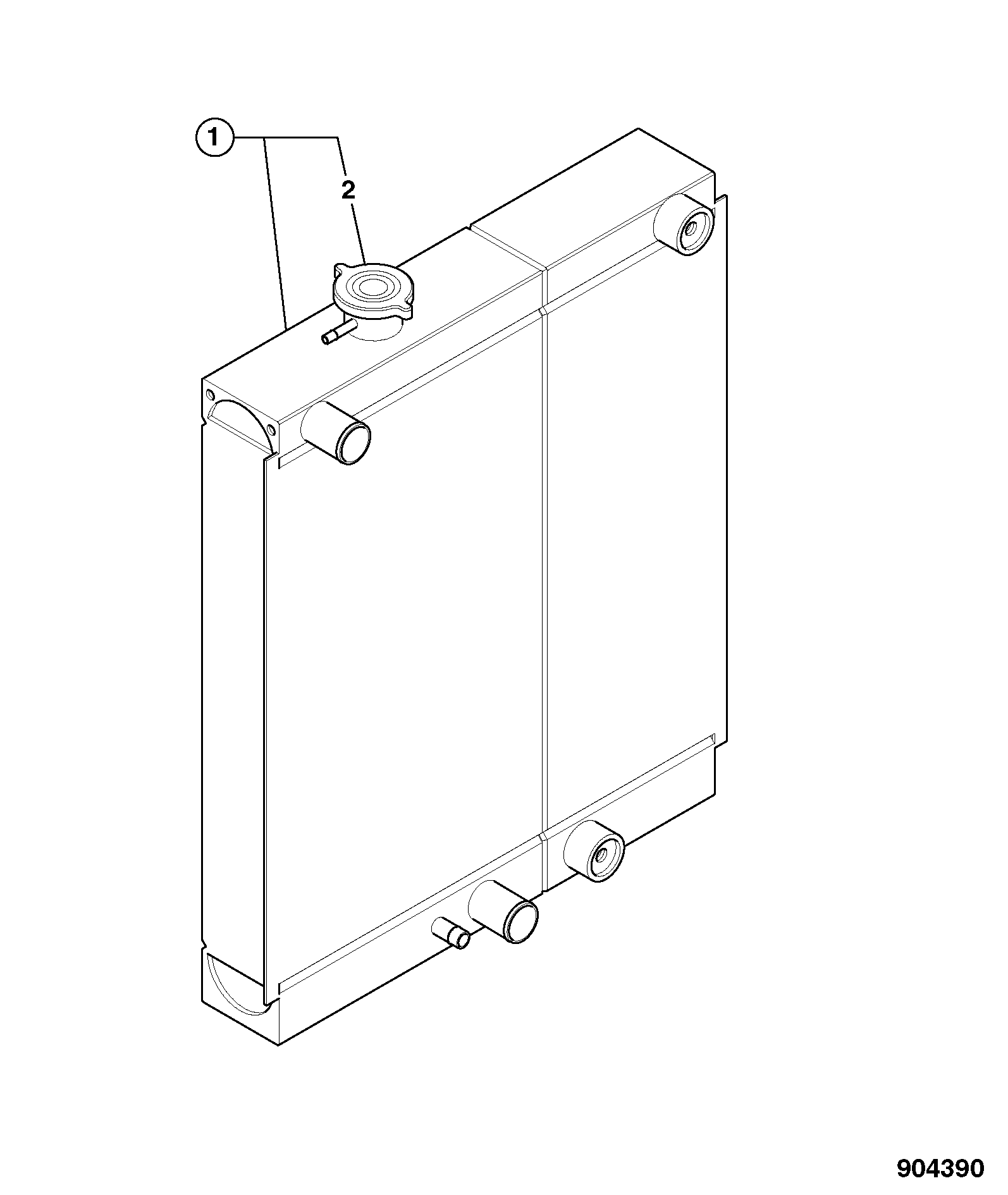

DIAG-V47-1-1-400577 V47-1-1 COMBINATION COOLER
View Diagram -

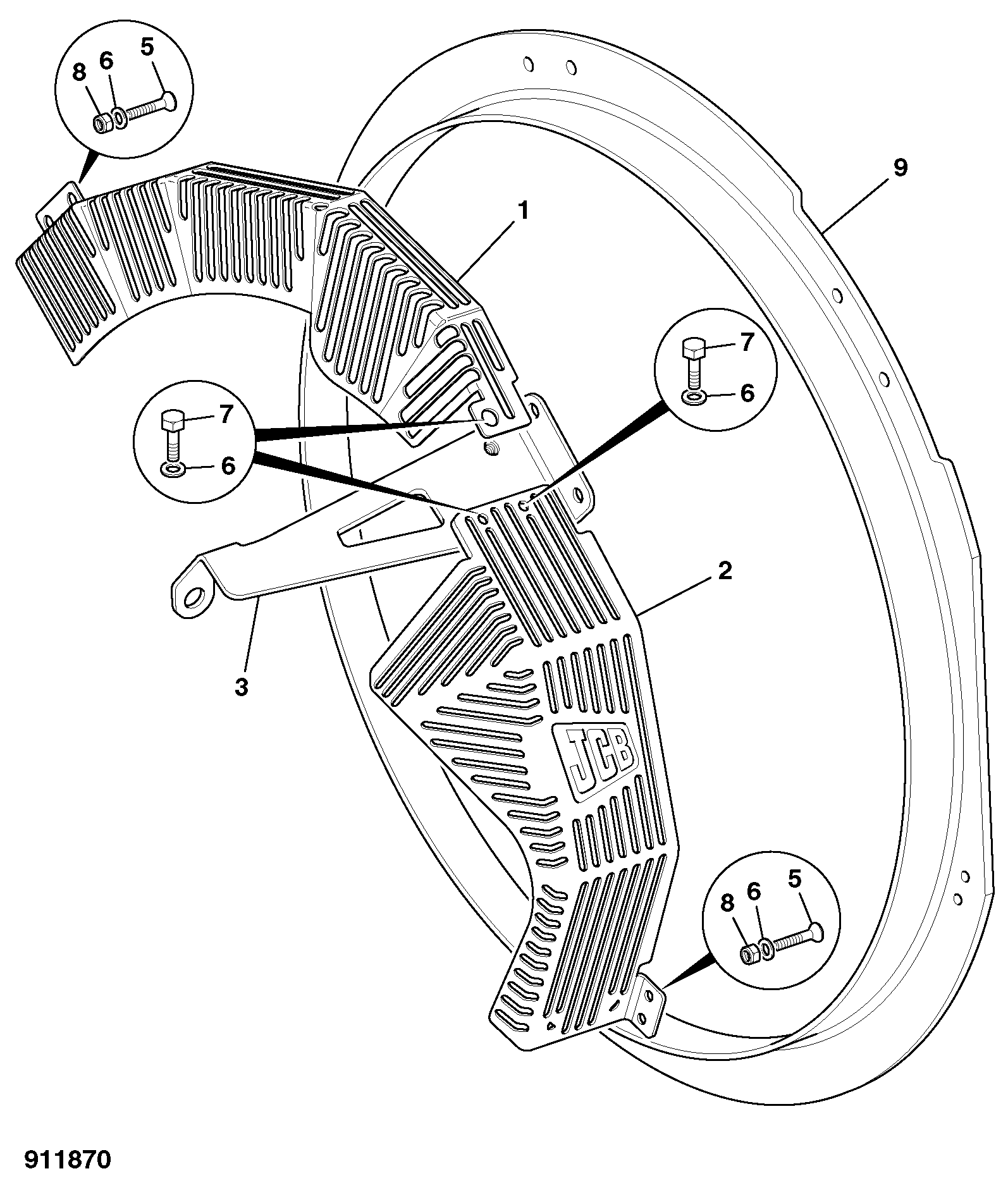

DIAG-V46-3-2-400577-12837343 V46-3-2 FAN GUARDS
View Diagram
