V340-2-1 AIR FILTER AIR TRANSFER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	CONNECTOR 333/Y3136 02/912415	1	AVAILABLE TO ORDER	$493.08	Quantity
	GASKET 02/911377	1	2 IN STOCK	$25.83	Quantity
	PLUG PIPE 02/912663	1	AVAILABLE TO ORDER	$60.87	Quantity

Showing 1 to 3 of 3 parts

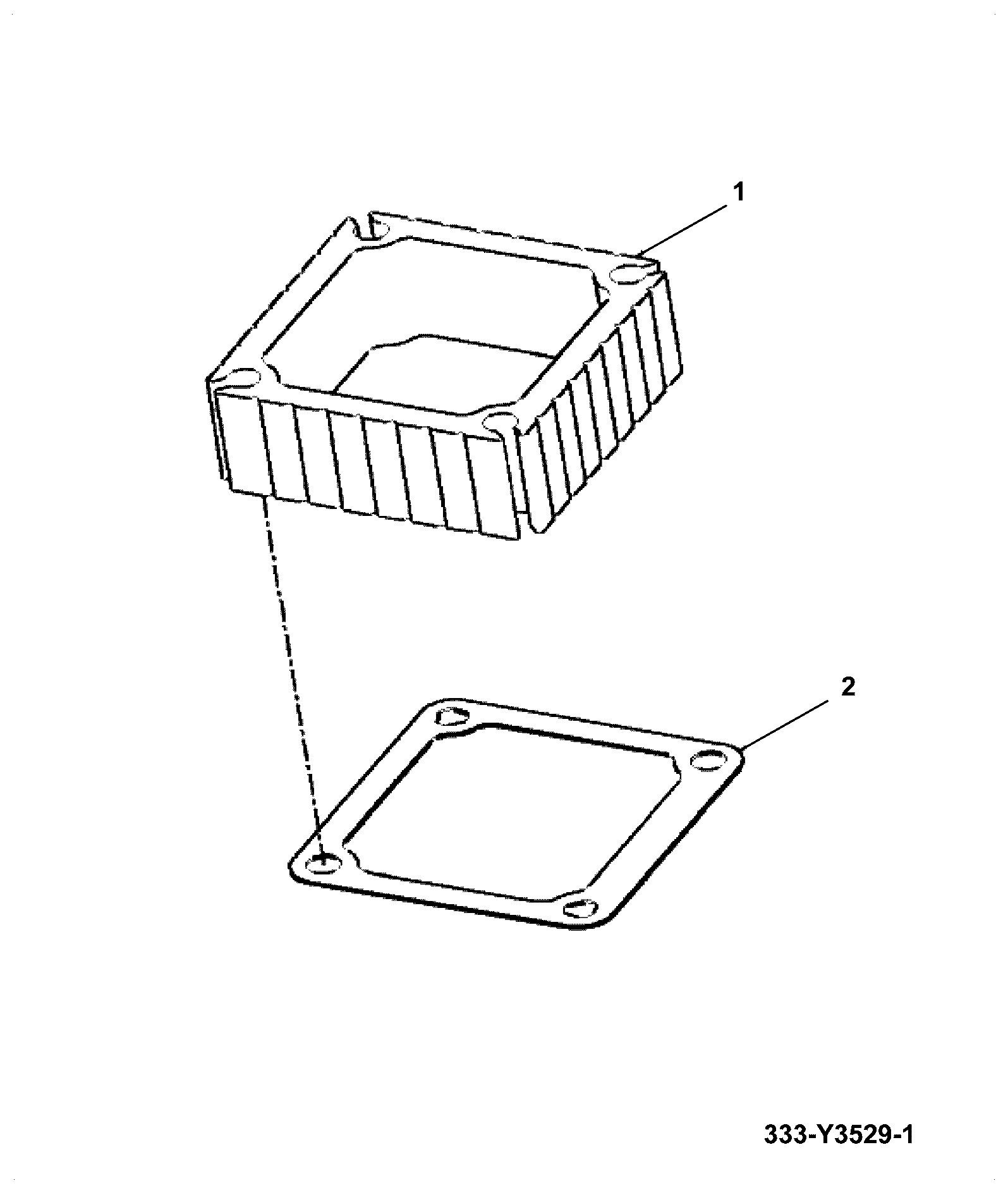

DIAG-V320-1-1-404765 V320-1-1 INTAKE HEATER HEATER AIR INTAKE
View Diagram

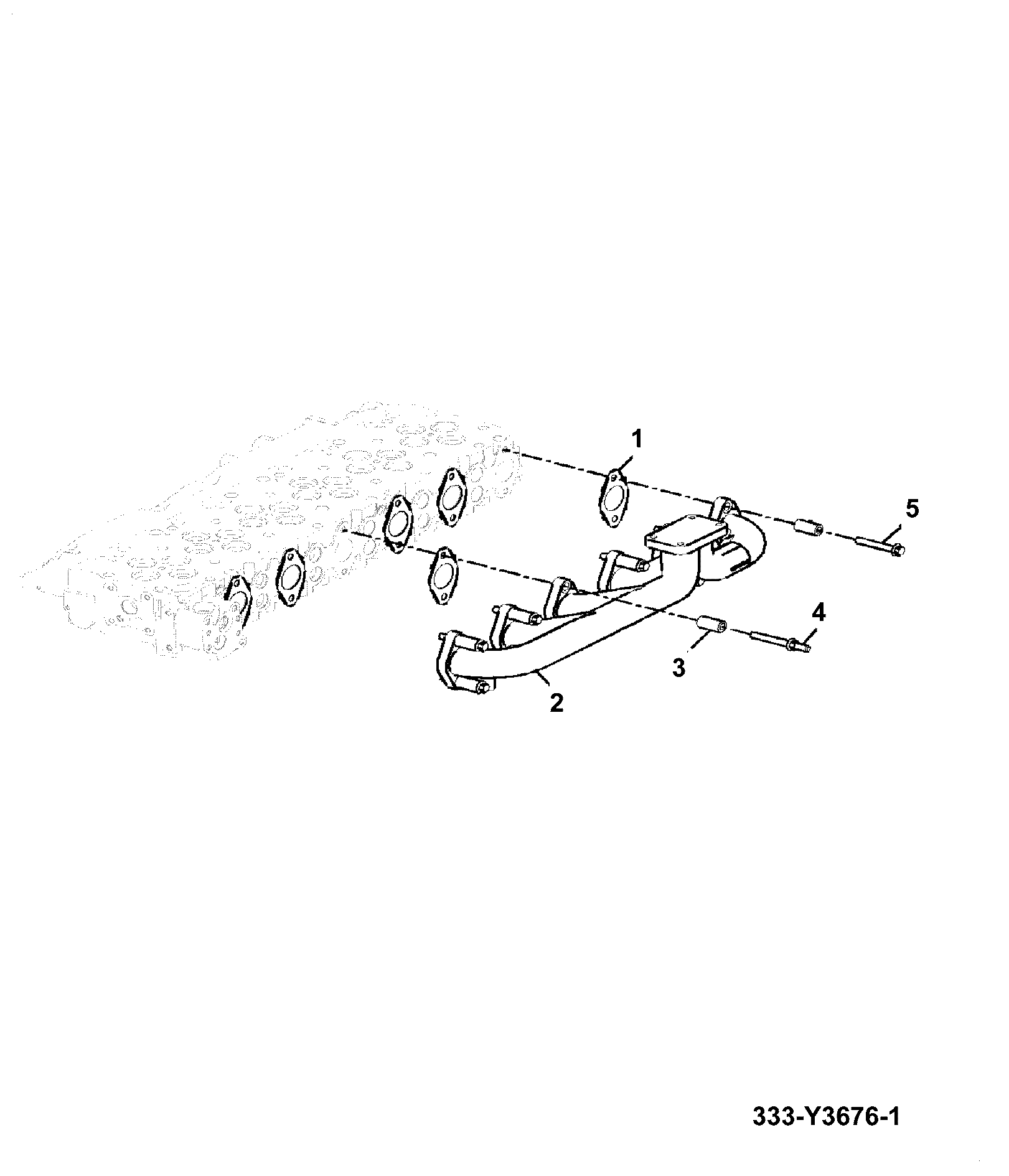

DIAG-V350-2-1-404765 V350-2-1 EXHAUST SYSTEM EXHAUST MANIFOLD
View Diagram

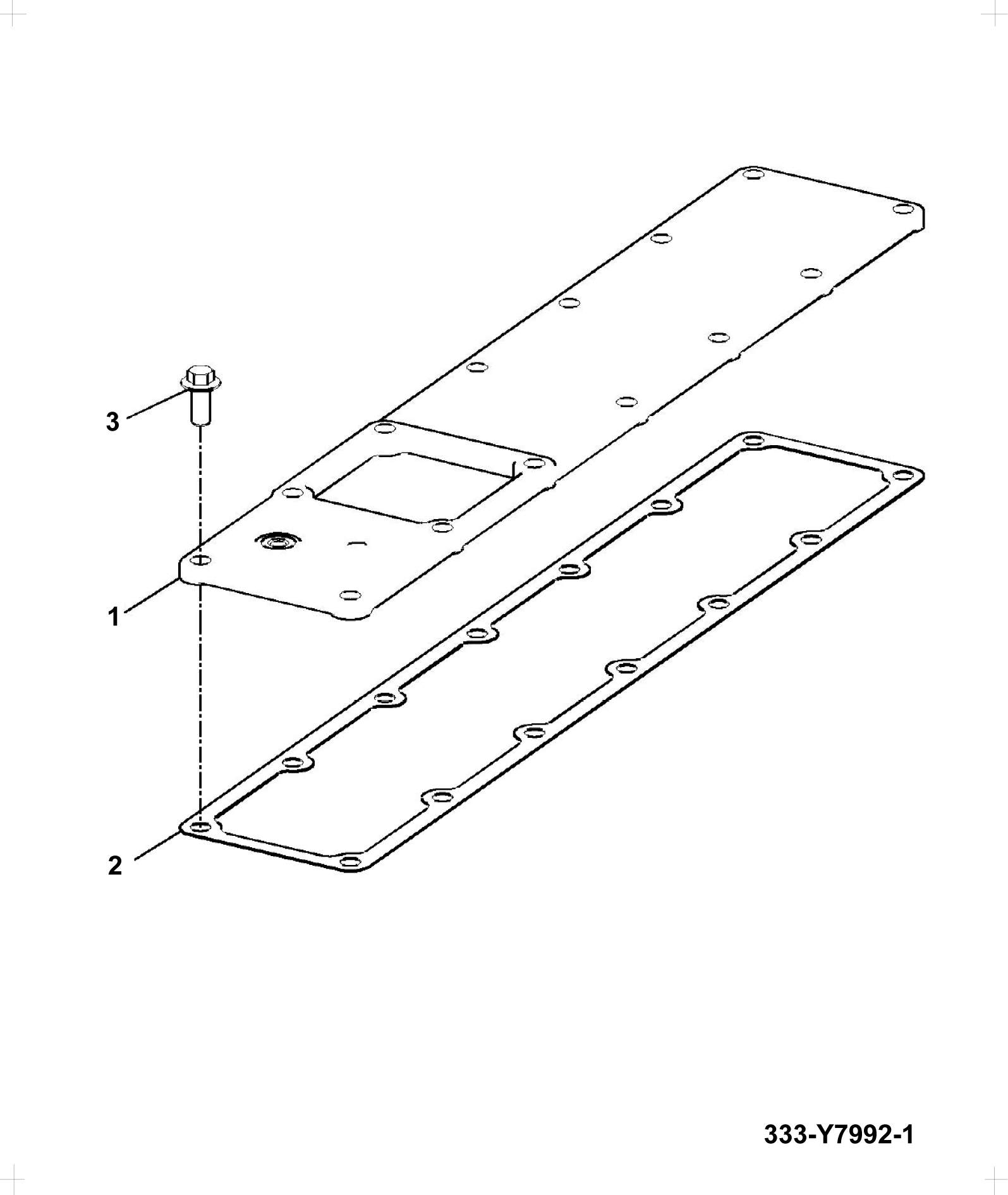

DIAG-V310-2-1-404765 V310-2-1 INTAKE MANIFOLD MANIFOLD AIR INTAKE
