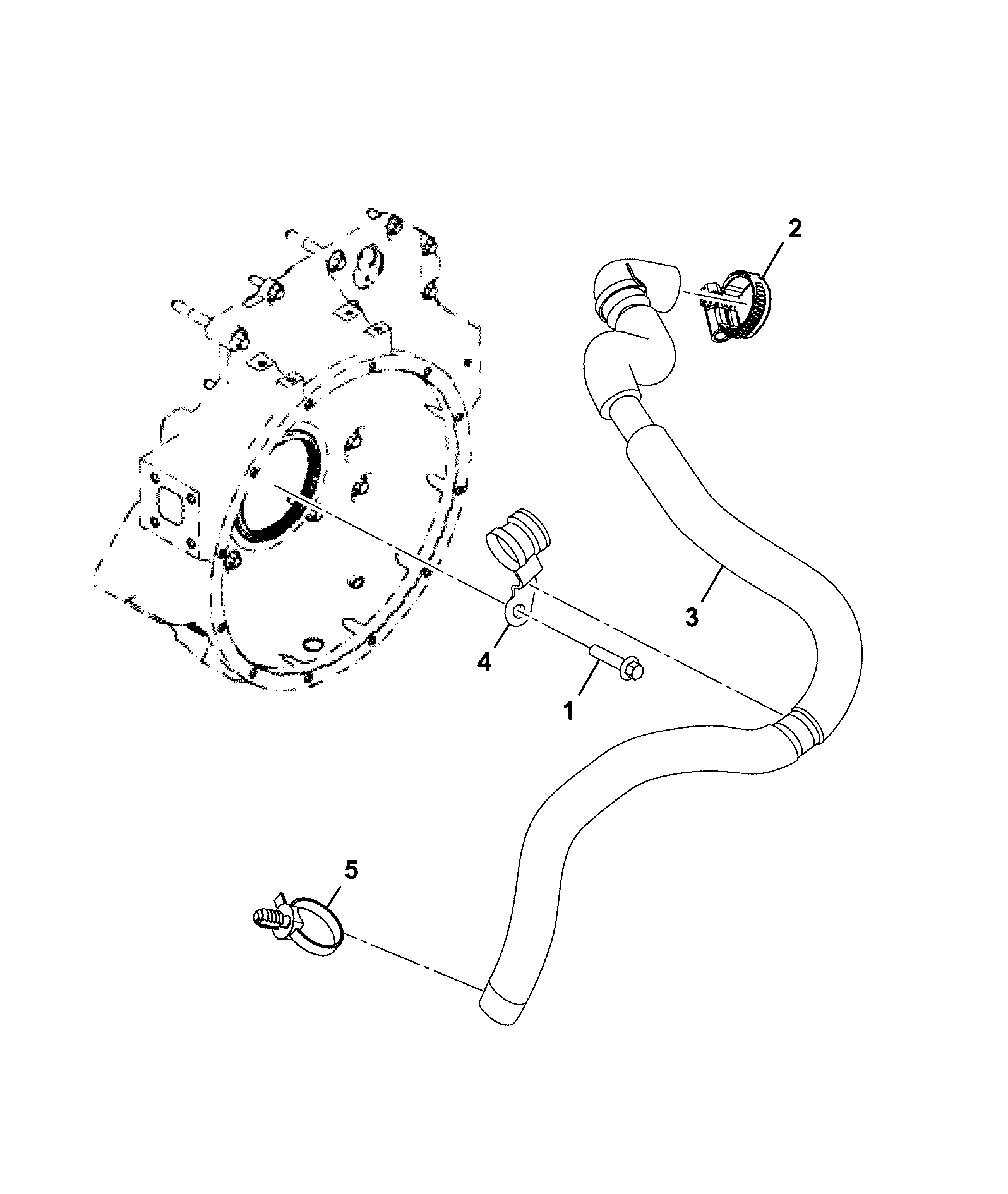

V310-1-1 INTAKE MANIFOLD AIR TRANSFER CONNECTION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	PLUG 02/910113	1	AVAILABLE TO ORDER	$13.75	Quantity
2	SEAL 02/911206	1	AVAILABLE TO ORDER	$21.78	Quantity
3	PIPE 02/911205	1	AVAILABLE TO ORDER	$203.39	Quantity
4	NUT, LOCK 02/911204	1	AVAILABLE TO ORDER	$6.94	Quantity
5	CLAMP "V" 02/911467 02/911207	1	AVAILABLE TO ORDER	$154.31	Quantity

Showing 1 to 5 of 5 parts
