V260-1-1 CCV FILTER BREATHER CRANKCASE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Sensor, Pressure 400/R1817 400/02335	1	AVAILABLE TO ORDER	$189.43	Quantity
2	GASKET 02/910910	1	AVAILABLE TO ORDER	$16.58	Quantity
3	Breather, Oil Seperator 400/06481	1	AVAILABLE TO ORDER	$1,057.11	Quantity

Showing 1 to 3 of 3 parts

DIAG-V250-15-1-404712 V250-15-1 ROCKER COVER ASSEMBLY ROCKER LEVER
View Diagram
DIAG-V260-5-1-404712 V260-5-1 CCV FILTER ASSEMBLY CRANKCASE BREATHER
View Diagram

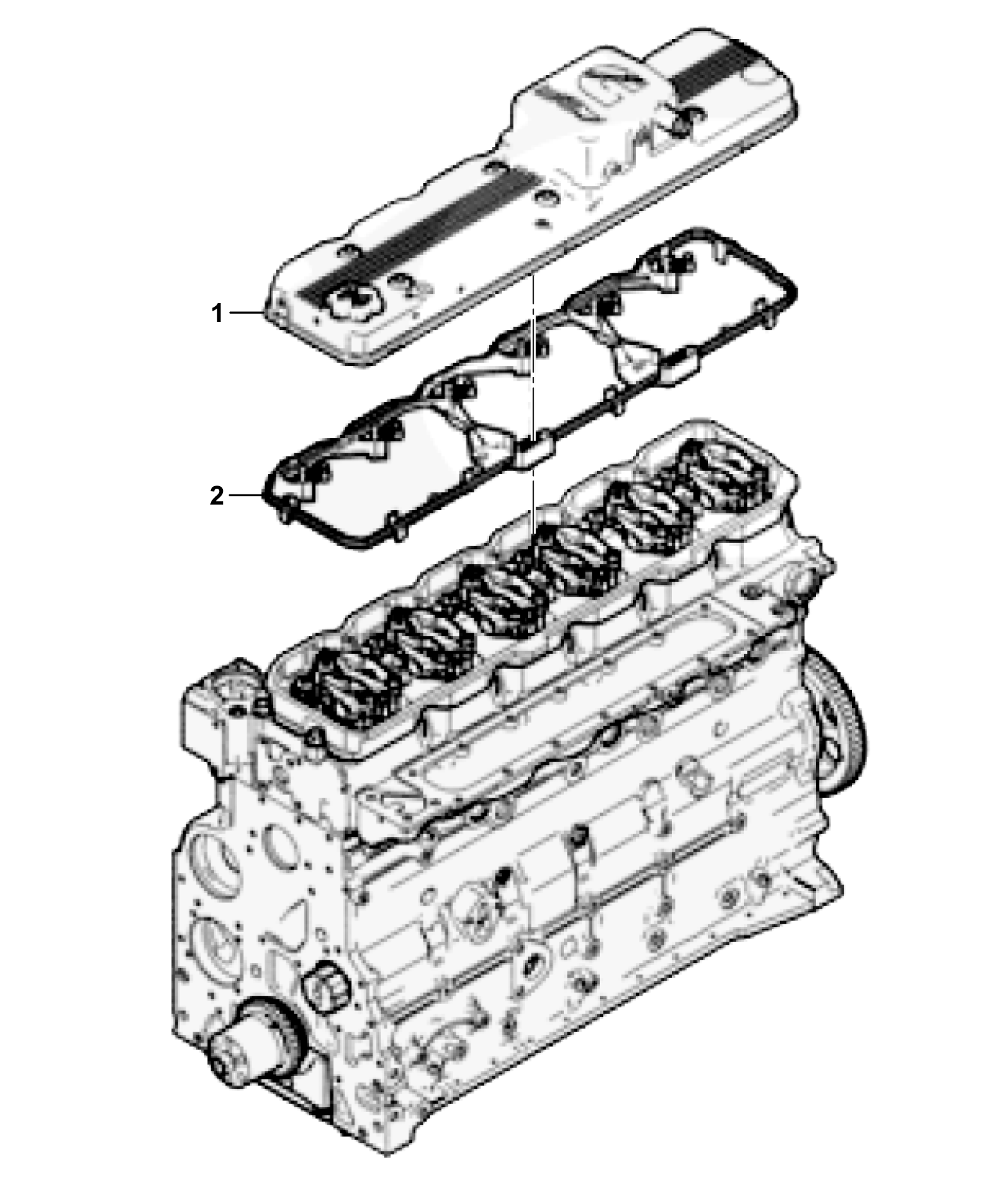

DIAG-V250-10-1-404712 V250-10-1 ROCKER COVER ASSEMBLY ARRANGEMENT,VALVE COVER
