Scroll to zoom Click a part # to view details

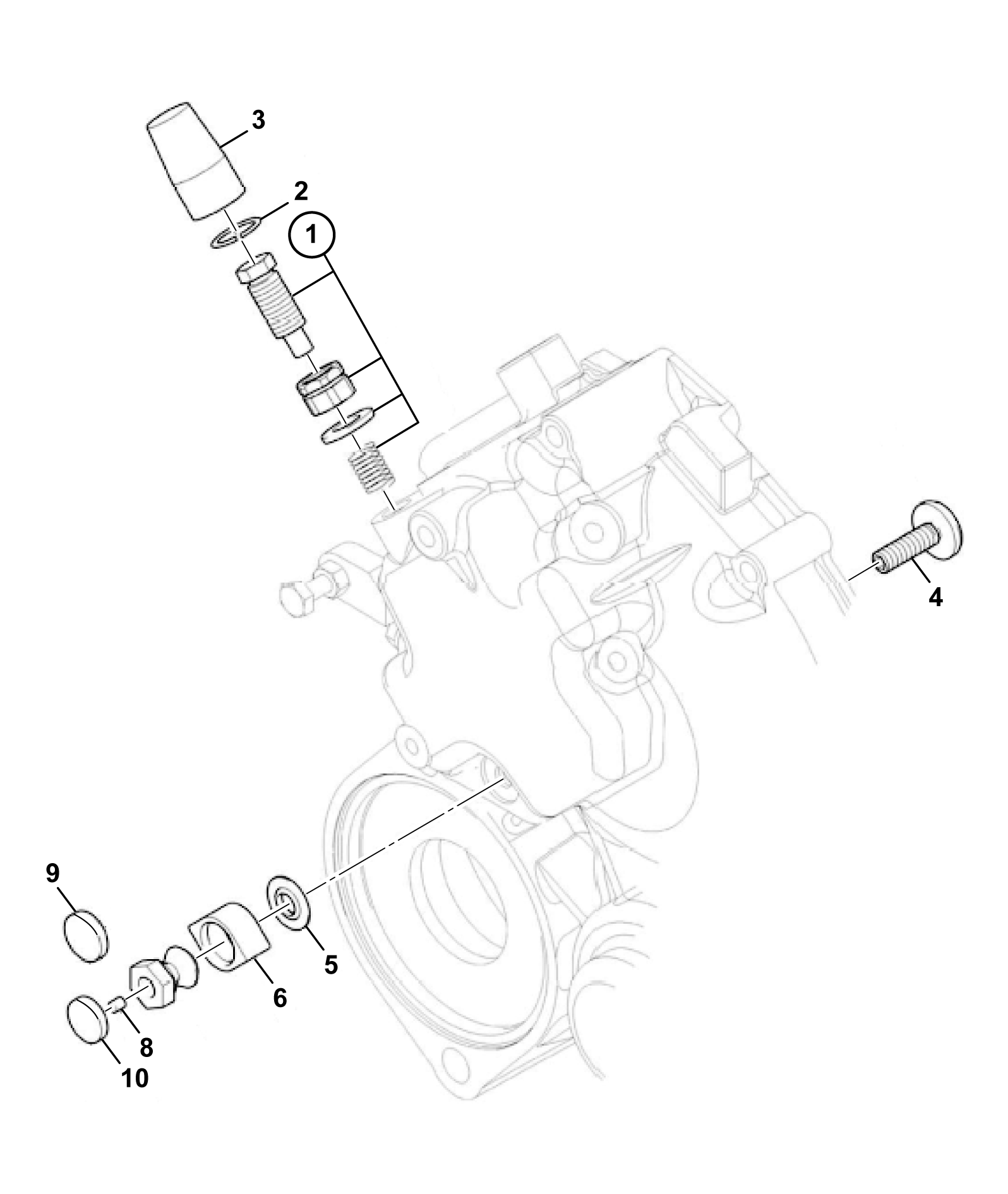

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Bracket 332/G4931 | 1 | $110.46 | |||
| 2 | Gasket . 02/634770 | 1 | $16.07 | |||
| 3 | Lever Arm 02/634930 | 1 | $33.37 | |||
| 4 | Spring . 02/634773 | 1 | $21.64 | |||
| 5 | O RING 02/630114 | 1 | $3.17 | |||
| 6 | Spring . 02/634771 | 1 | $13.05 | |||
| 7 | NUT 02/630078 | 1 | $2.89 | |||
| 8 | Screw 333/D4956 | 1 | $23.71 | |||
| 9 | Nut 826/10743 | 1 | $20.70 | |||
| 10 | Cap anti-tamper 02/634166 | 1 | $12.79 | |||
| 12 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 13 | BOLT 02/291092 | 1 | $1.55 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-V160-40-1-397978 V160-40-1 TIMING CASE _3 ASSEMBLY
View Diagram -

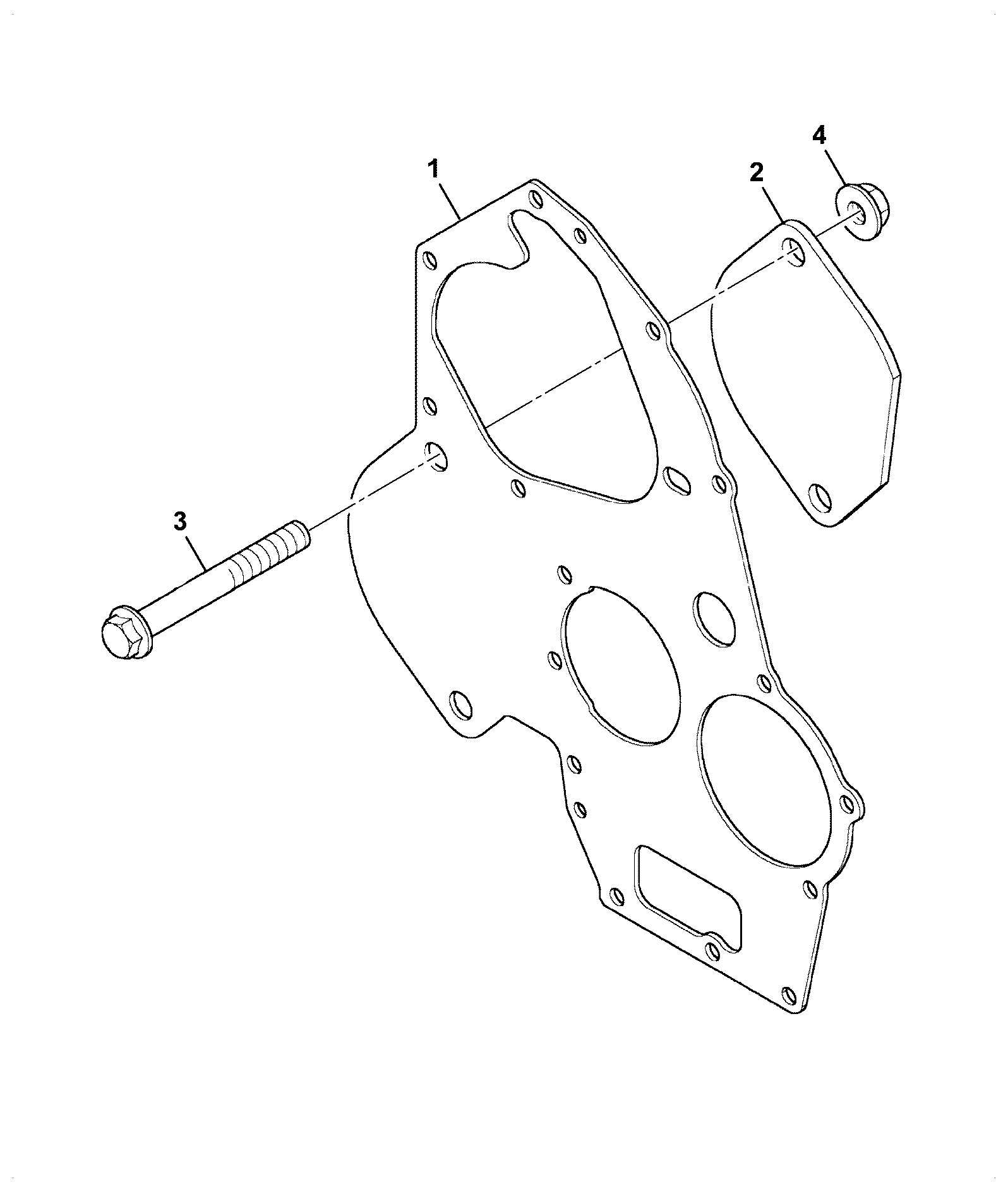

DIAG-V160-50-1-397978 V160-50-1 TIMING CASE BLANKING PLATES
View Diagram -
DIAG-V160-35-1-397978 V160-35-1 TIMING CASE ASSEMBLY
View Diagram
