| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ENGINE (PERKINS 404D-22) 332/S6579 | 1 | $10,313.22 | ||||
| 1 | Bracket 332/G4931 | 1 | $110.46 | |||
| 2 | Gasket . 02/634770 | 1 | $16.07 | |||
| 3 | Lever Arm 02/634739 | 1 | $34.29 | |||
| 4 | Spring . 02/634773 | 1 | $21.64 | |||
| 5 | O RING 02/630114 | 1 | $3.17 | |||
| 6 | Spring . 02/634771 | 1 | $13.05 | |||
| 7 | NUT 02/630078 | 1 | $2.89 | |||
| 9 | Nut 826/10743 | 1 | $20.70 | |||
| 10 | Cap anti-tamper 02/634166 | 1 | $12.79 | |||
| 11 | SCREW 826/10742 | 1 | $2.15 | |||
| 12 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 13 | SCREW 02/630071 | 1 | $4.62 | |||
| 14 | Lever Control 02/634736 02/634874 | 1 | $169.98 | |||
| 15 | Shaft . 02/634738 | 1 | $287.05 | |||
| 16 | WASHER 02/630808 | 1 | $12.41 | |||
| 17 | Sensor Speed 02/634935 | 1 | $130.85 | |||
| 18 | Nut . 02/634717 | 1 | $11.81 | |||
| 19 | Control Lever 02/634932 | 1 | $41.60 | |||
| 20 | Pivot Pin Bolt 02/634737 | 1 | $10.54 | |||
| 21 | WASHER 02/630266 | 1 | $12.11 | |||
| 22 | Nut 02/634720 | 1 | $3.70 | |||
| 23 | Spring . 02/634774 | 1 | $12.61 | |||
| 24 | PIN 02/630111 | 1 | $20.33 | |||
| 25 | Bolt Assembly 02/634827 | 1 | $110.11 | |||
| 26 | NUT 826/10738 | 1 | $12.11 | |||
| 27 | WASHER 02/630308 | 1 | $9.42 | |||
| 28 | Spring 02/634775 | 1 | $9.18 | |||
| 29 | Ring . 02/634776 | 1 | $11.69 | |||
| 30 | Cap anti-tamper 02/634159 | 1 | $11.69 | |||
| 31 | Bolt . 02/634749 | 1 | $10.14 | |||
| 32 | Nut . 02/634716 | 1 | $10.08 | |||
| 34 | Cap Anti Tamper 02/634760 | 1 | $5.58 | |||
| 35 | Cap Anti Tamper 02/634942 333/G3954 | 1 | $39.10 | |||
| 36 | Lever . 02/634742 | 1 | $20.97 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-
DIAG-V160-1-1-397145 V160-1-1 TIMING CASE CAMSHAFT & GEAR
View Diagram -

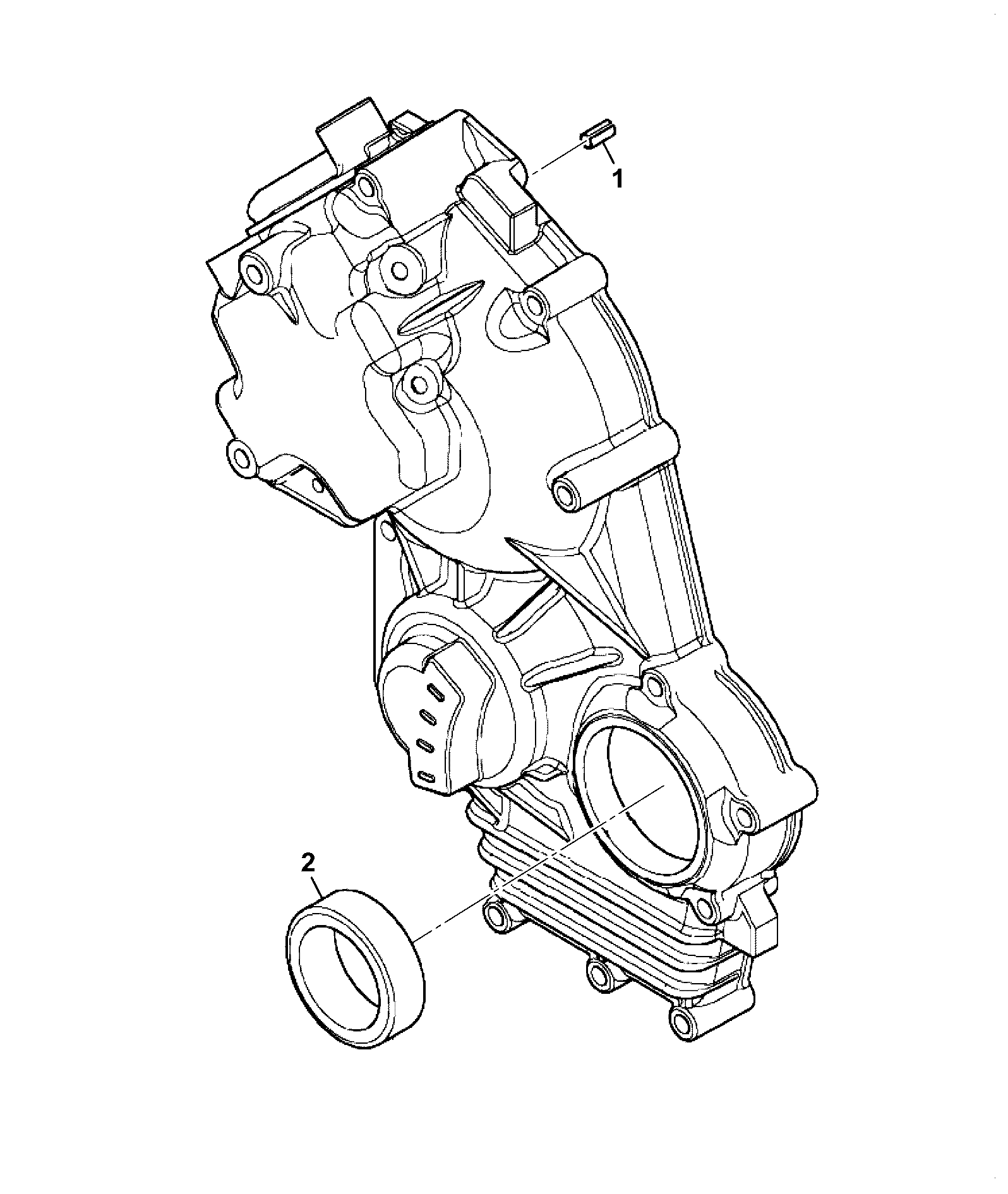

DIAG-V160-10-1-397145 V160-10-1 TIMING CASE TIMING CASE
View Diagram -

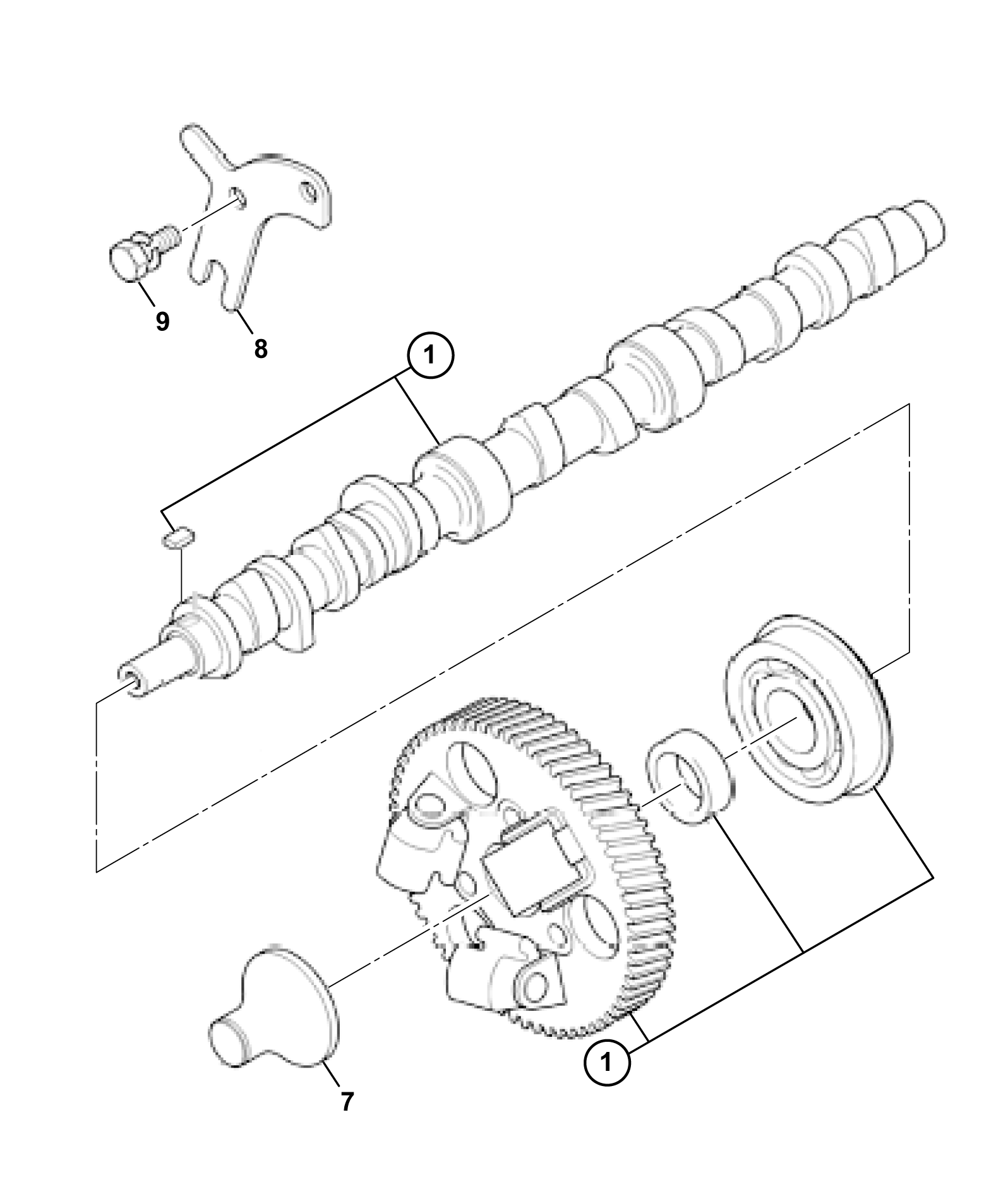

DIAG-V150-5-1-397145 V150-5-1 CAMSHAFT CAMSHAFT & GEARS
