V150-10-1 CAMSHAFT ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	CAMSHAFT 02/910410	1	AVAILABLE TO ORDER	$1,328.48	Quantity
3	GEAR 02/910411	1	AVAILABLE TO ORDER	$762.85	Quantity
4	KEY 02/910062	1	AVAILABLE TO ORDER	$19.43	Quantity
5	BRACKET 02/910063	1	AVAILABLE TO ORDER	$29.69	Quantity
6	BOLT 02/911013	1	AVAILABLE TO ORDER	$6.87	Quantity

Showing 1 to 5 of 5 parts

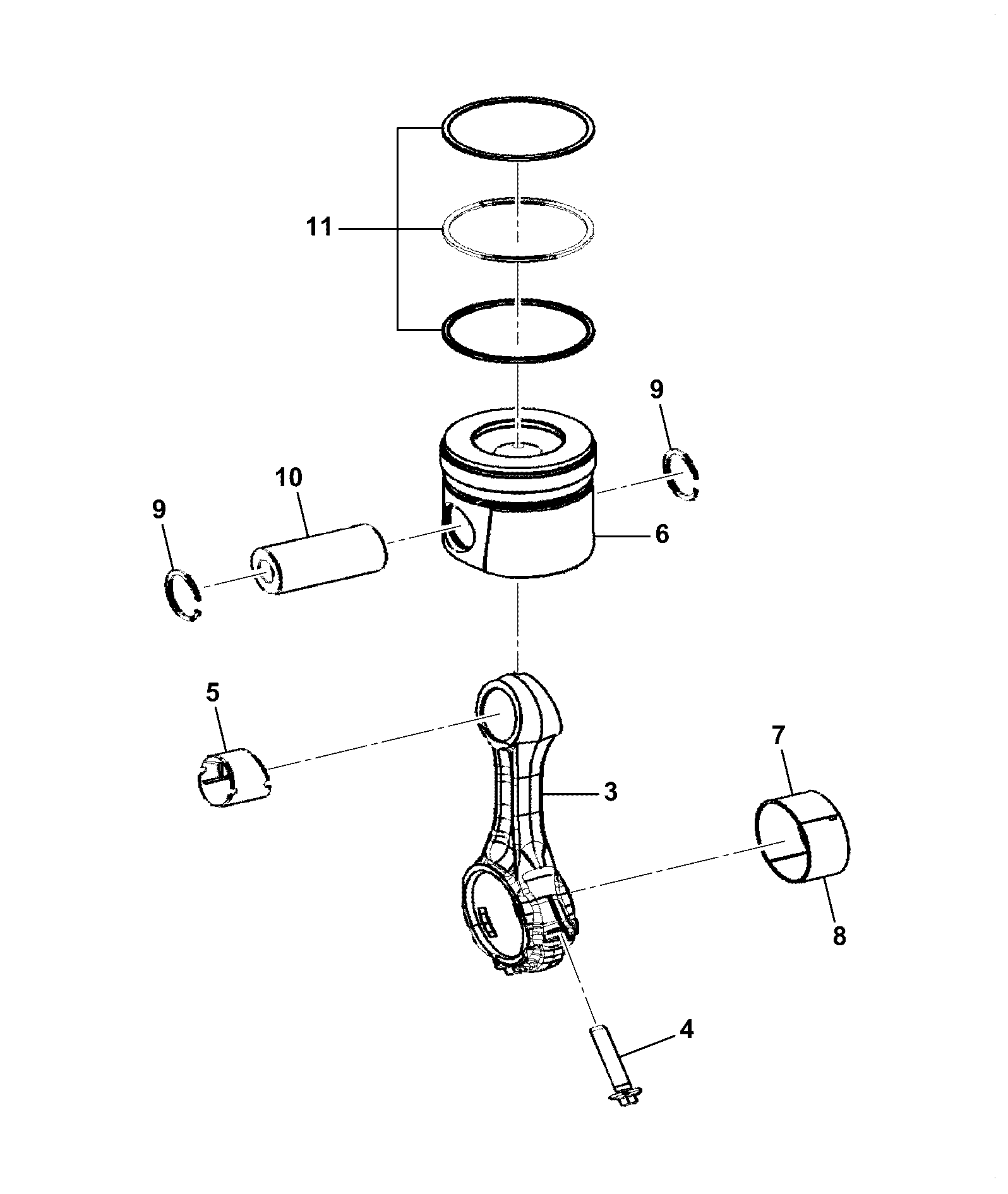

DIAG-V140-5-1-404763 V140-5-1 PISTON AND CONROD ASSEMBLIES PISTON PISTON,ENGINE
View Diagram

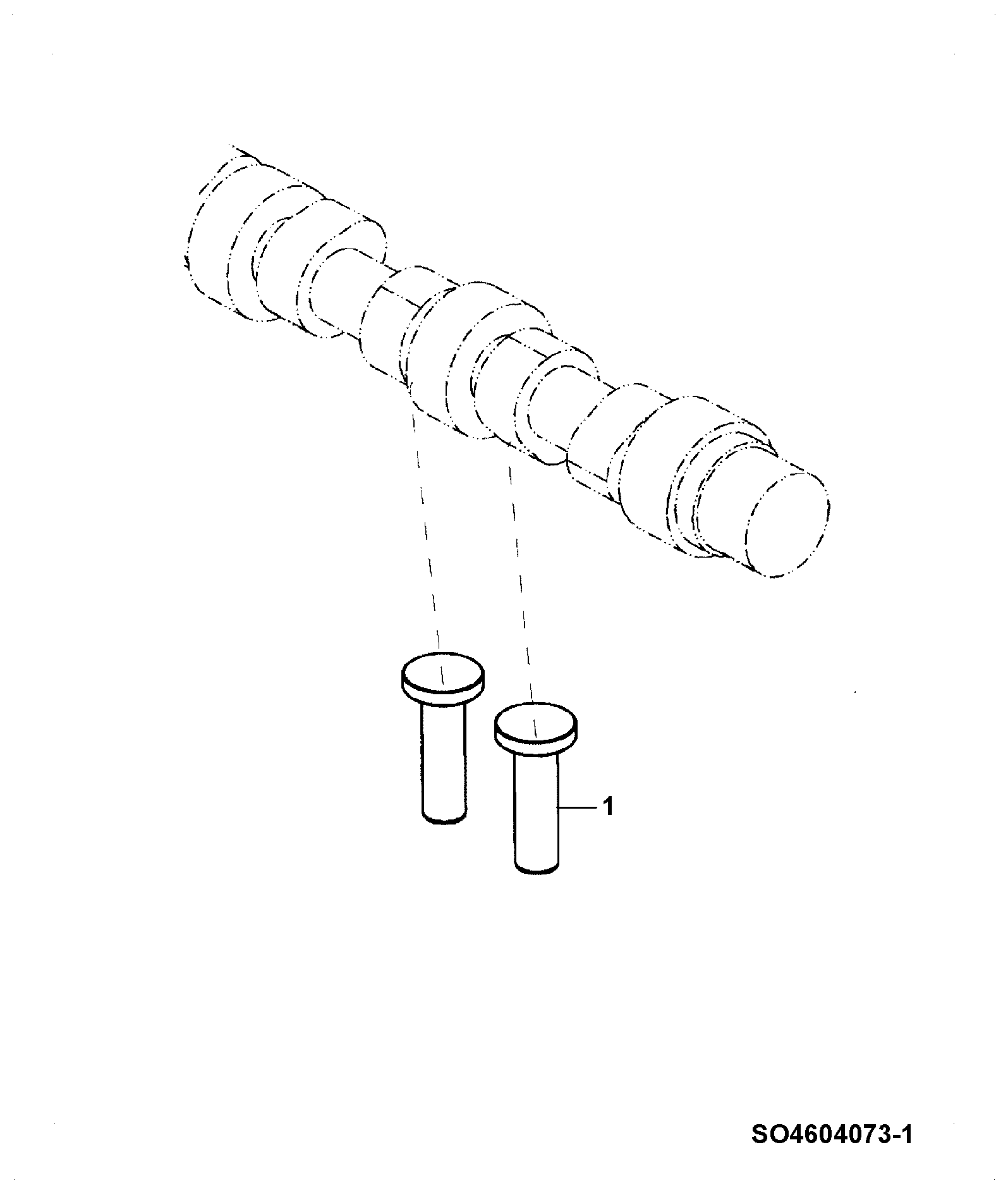

DIAG-V150-15-1-404763 V150-15-1 CAMSHAFT TAPPET VALVE
