Scroll to zoom Click a part # to view details

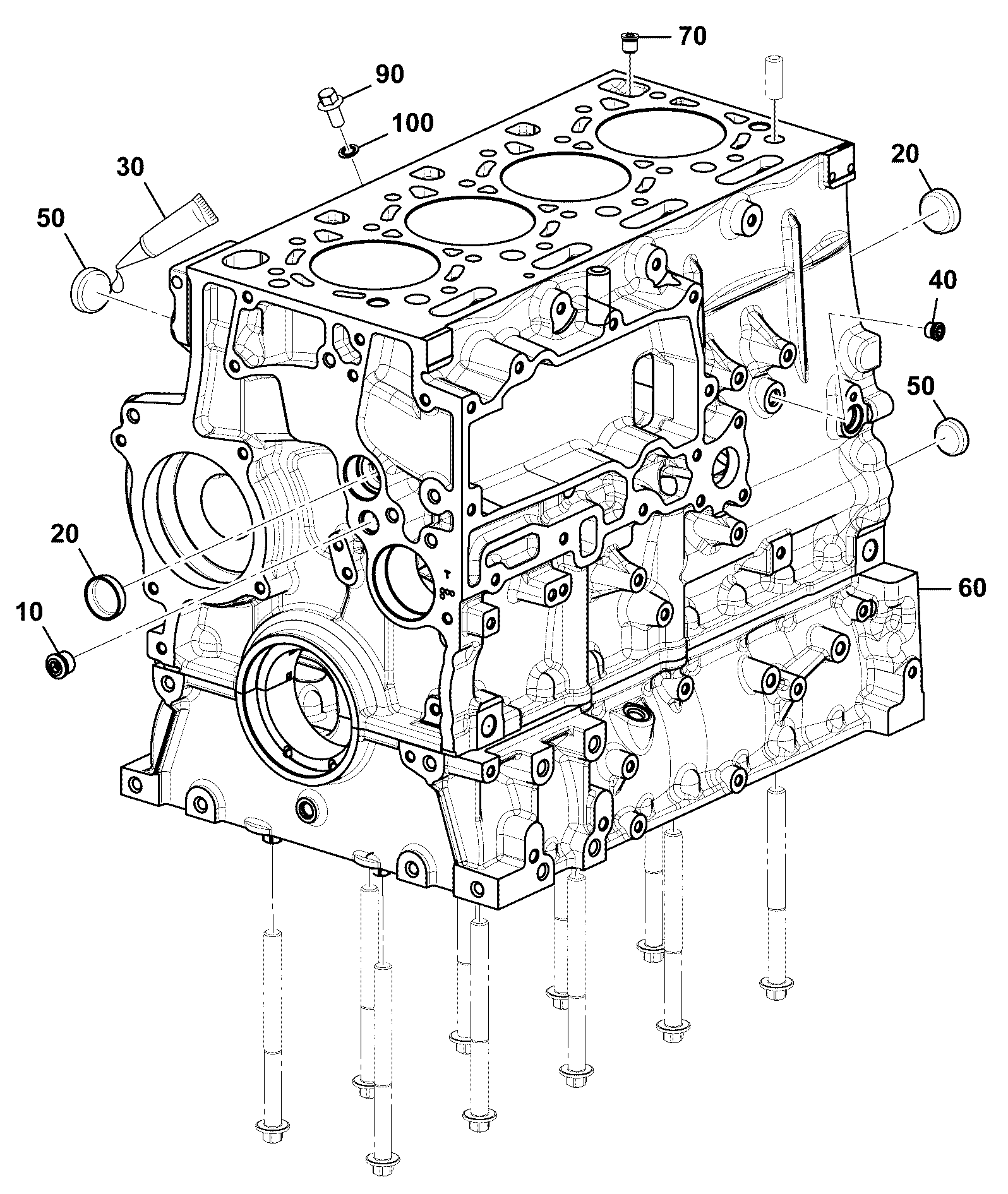

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 tube SEALANT.LOCTITE 518 4102/4100 320/00831 | 1 | $52.38 | ||||
| LOCTITE 638 - 50ml 4101/0600 4101/0602 | 1 | $75.94 | ||||
| 10 | 'Cylinder block (Finish Machined) CR-448 320/01921 320/A1627 | 1 | $5,084.32 | |||
| 20 | PLUG.CORE.62mm DIA.(KANBAN) 320/00804 | 1 | $8.89 | |||
| 40 | BOLT FLANGED HEX M8 x 80 g8.8 1317/3318V | 1 | $1.55 | |||
| 60 | PISTON COOLER JET 320/B4435 | 1 | $16.69 | |||
| 70 | DOWEL.FLATTED 10 X 25(KANBAN) 320/01526 | 1 | $18.30 | |||
| 80 | DOWEL 12 x 25(KANBAN) 320/01528 | 1 | $8.21 | |||
| 90 | RING DOWEL(KANBAN) (BR3) 320/02525 | 1 | $3.44 | |||
| 110 | CORE PLUG - 16mm dia(KANBAN) (BR3) 320/00805 320/00896 | 1 | $1.36 | |||
| 120 | O RING (BR3) 320/01656 | 1 | $7.93 | |||
| 130 | SCREW M8x20 HEXALOBULAR 320/B0663 | 1 | $55.48 | |||
| 140 | BOLT M14 L-164mm MAI 320/00917 | 1 | $13.12 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-V120-30-5-398345 V120-30-5 CYLINDER BLOCK FITTINGS & MOUNTINGS
View Diagram -
DIAG-V120-115-1-398345 V120-115-1 CYLINDER BLOCK ASSEMBLY
View Diagram -
DIAG-V120-30-1-398345 V120-30-1 CYLINDER BLOCK
View Diagram
