Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | 'Cylinder block (Finish Machined) T4-448 320/A1607 320/A1606 | 1 | $4,329.19 | |||
| 20 | PLUG.CORE.62mm DIA.(KANBAN) 320/00804 | 1 | $8.89 | |||
| 30 | Loctite 243 - 250ml 4101/1103 | 1 | $122.83 | |||
| 40 | BOLT FLANGED HEX M8 x 80 g8.8 1317/3318V | 1 | $1.55 | |||
| 50 | 1 tube SEALANT.LOCTITE 518 4102/4100 320/00831 | 1 | $52.38 | |||
| 60 | PISTON COOLER JET 320/B4435 | 1 | $16.69 | |||
| 70 | DOWEL.FLATTED 10 X 25(KANBAN) 320/01526 | 1 | $18.30 | |||
| 80 | DOWEL 12 x 25(KANBAN) 320/01528 | 1 | $8.21 | |||
| 90 | RING DOWEL(KANBAN) (BR3) 320/02525 | 1 | $3.44 | |||
| 110 | CORE PLUG - 16mm dia(KANBAN) (BR3) 320/00805 320/00896 | 1 | $1.36 | |||
| 120 | BOLT M14 L-164mm MAI 320/00917 | 1 | $13.12 | |||
| 130 | O RING (BR3) 320/01656 | 1 | $7.93 | |||
| 140 | SCREW M8x20 HEXALOBULAR 320/B0663 | 1 | $55.48 | |||
| 150 | CHECK VALVE PLUG - M20 x 320/B0755 | 1 | $4.63 | |||
| 160 | CONNECTOR - COOLANT(8008/009) 320/04431 | 1 | $11.93 | |||
| 170 | COPPER WASHER ID18.2 OD26(KANBAN) 320/A0506 | 1 | $5.88 | |||
| 180 | BALL - CCV DRAIN(KANBAN) 320/07765 | 1 | $7.58 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

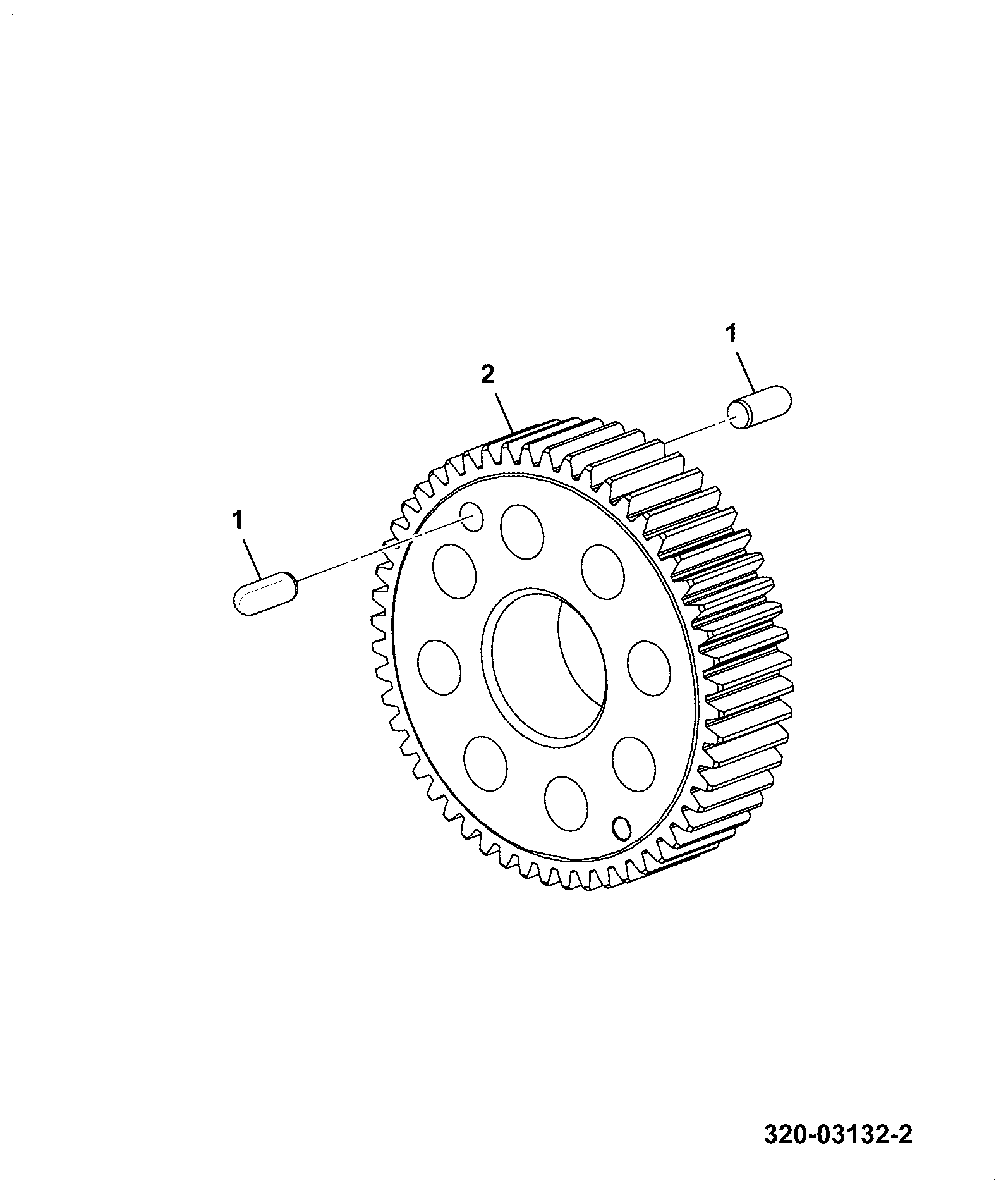

DIAG-V130-20-1-403033 V130-20-1 CRANKSHAFT GEAR ASSEMBLY,320/03132,TIER 4
View Diagram -

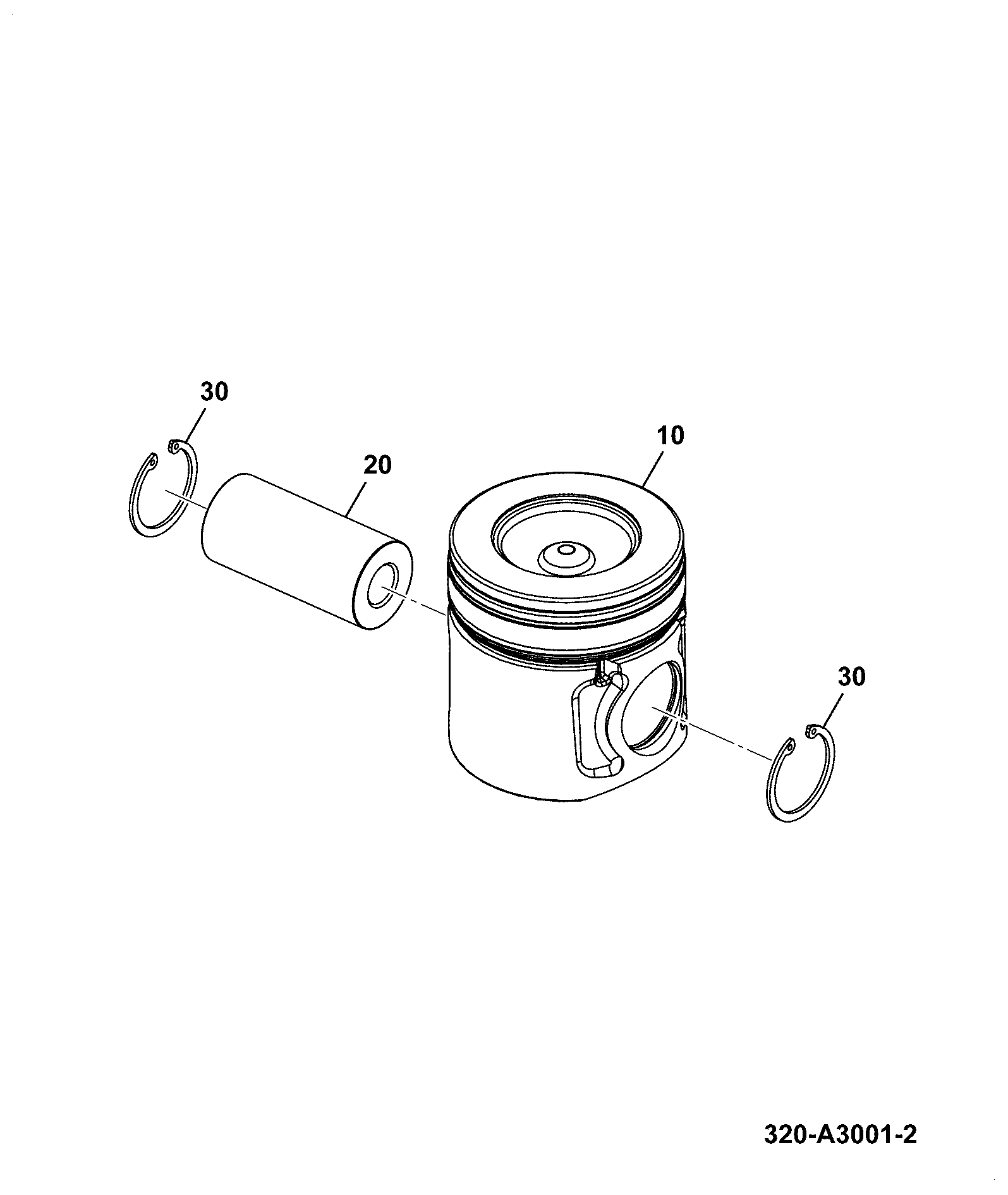

DIAG-V140-1-1-403033-14747289 V140-1-1 PISTON AND CONROD ASSEMBLIES PISTON ASSEMBLY T4
View Diagram -
DIAG-V180-45-1-403033 V180-45-1 FLYWHEEL ACCESS PLATE
View Diagram
