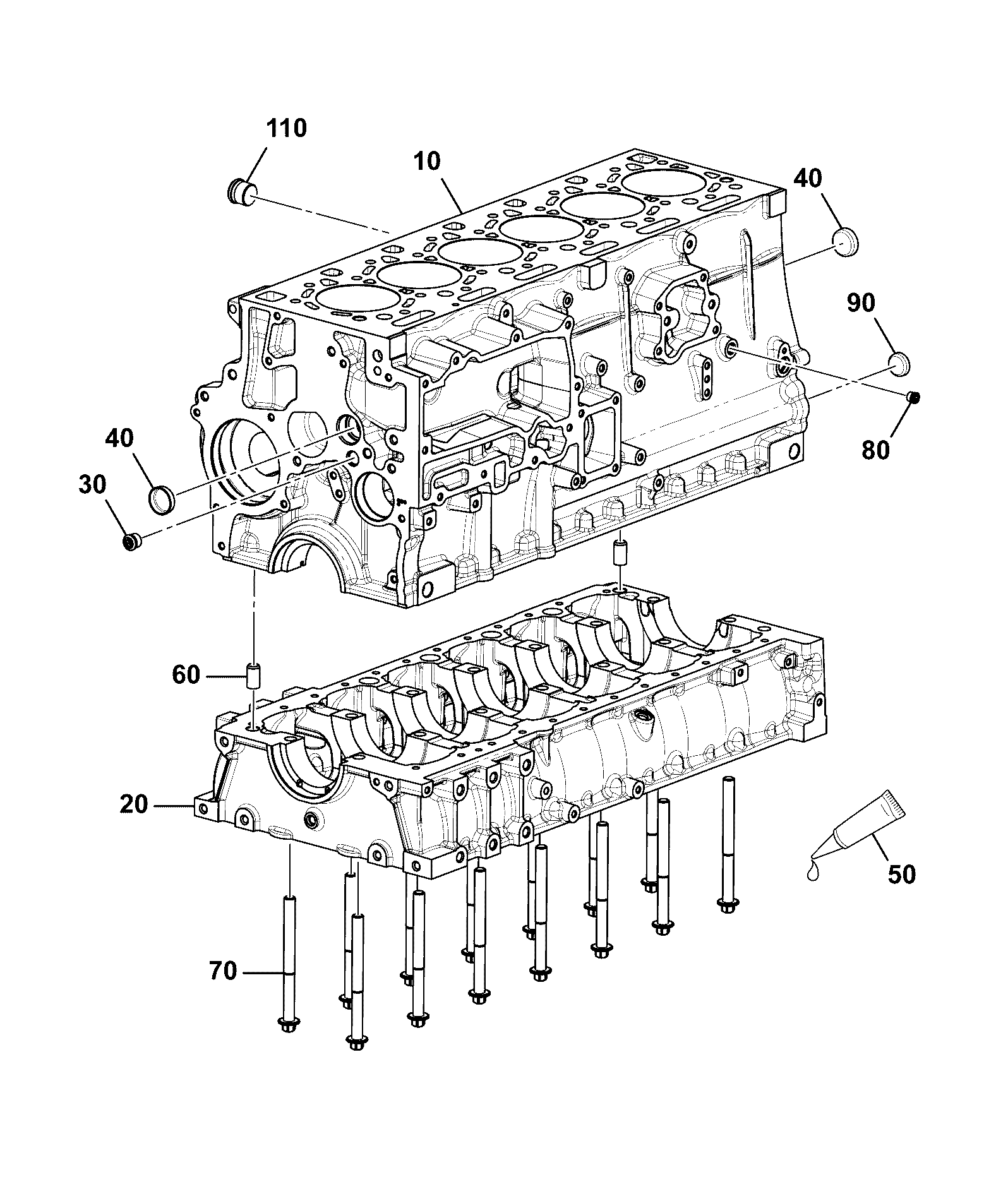

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | BLOCK AND BEDPLATE ASSY M 320/A1549 | 1 | $5,837.92 | |||
| 20 | BOLT FLANGED HEX M8 x 80 g8.8 1317/3318V | 1 | $1.55 | |||
| 30 | SCREW M8x20 HEXALOBULAR 320/B0663 | 1 | $55.48 | |||
| 40 | PISTON COOLER JET 320/B4435 | 1 | $16.69 | |||
| 50 | CORE PLUG - 16mm dia(KANBAN) (BR3) 320/00805 320/00896 | 1 | $1.36 | |||
| 60 | PLUG.CORE.25mm DIA.(KANBAN) 320/00801 | 1 | $9.18 | |||
| 70 | PLUG.CORE.62mm DIA.(KANBAN) 320/00804 | 1 | $8.89 | |||
| 80 | CHECK VALVE PLUG - M20 x 320/B0755 | 1 | $4.63 | |||
| 90 | BALL - CCV DRAIN(KANBAN) 320/07765 | 1 | $7.58 | |||
| 100 | DOWEL 12 x 25(KANBAN) 320/01528 | 1 | $8.21 | |||
| 110 | DOWEL.FLATTED 10 X 25(KANBAN) 320/01526 | 1 | $18.30 | |||
| 120 | O RING (BR3) 320/01656 | 1 | $7.93 | |||
| 160 | RING DOWEL(KANBAN) (BR3) 320/02525 | 1 | $3.44 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-V120-115-1-398328 V120-115-1 CYLINDER BLOCK BLOCK AND BEDPLATE
View Diagram -
DIAG-V130-1-1-398328 V130-1-1 CRANKSHAFT ASSEMBLY
View Diagram -

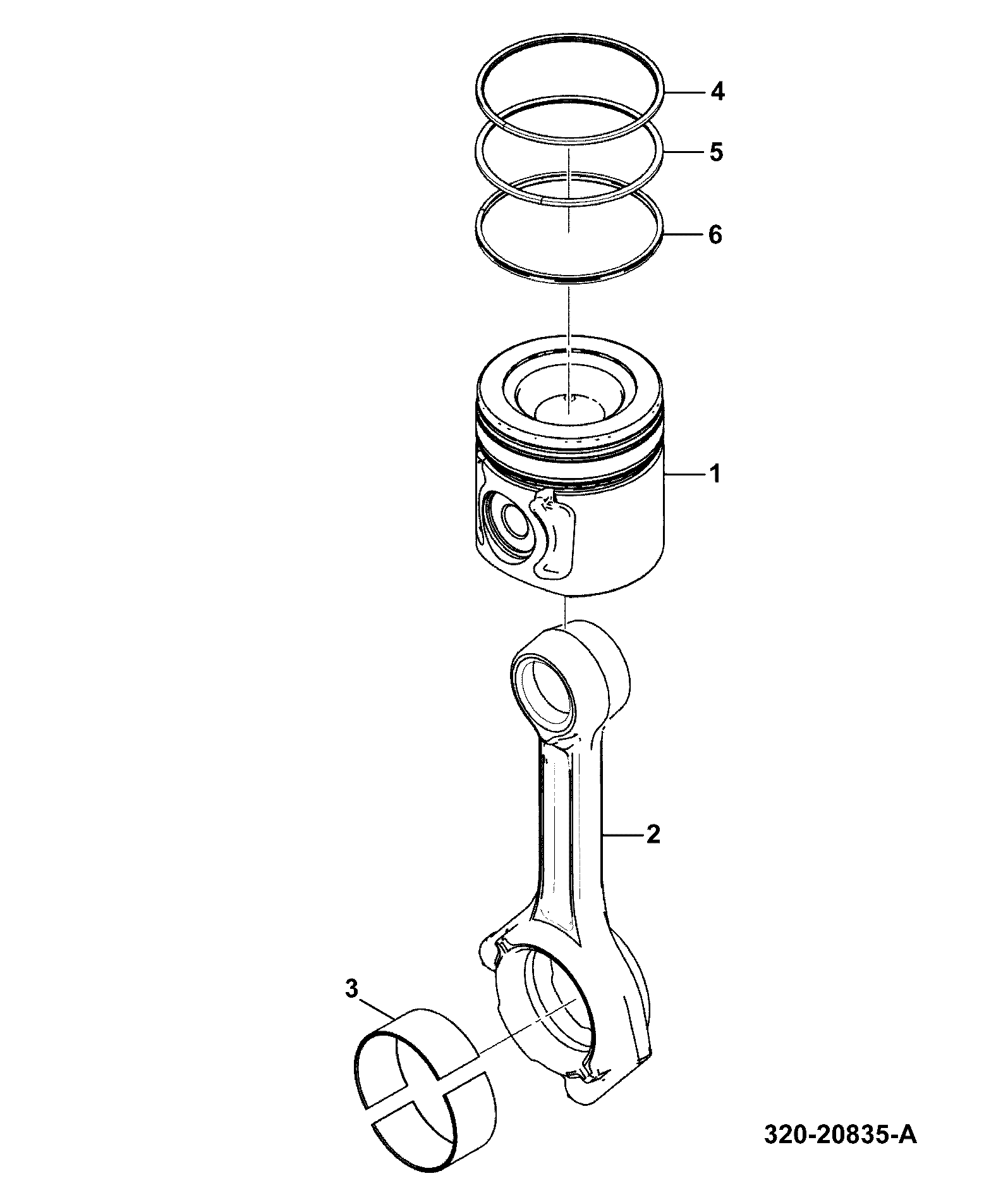

DIAG-V140-1-1-398328 V140-1-1 PISTON AND CONROD ASSEMBLIES
View Diagram
